Spring plungers with slot and POM ball, plastic
K0311

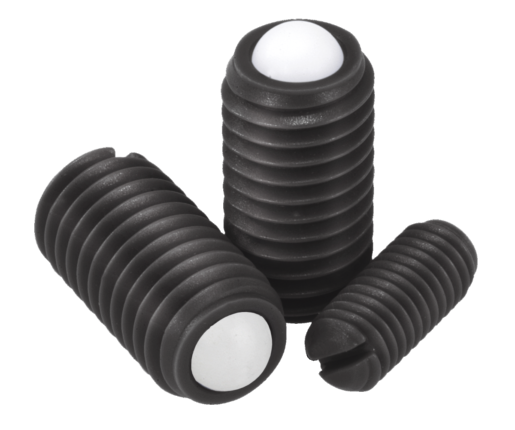

Spring plungers with slot and POM ball, plastic

go back

Item description/product images

DescriptionMaterial:body plastic.
Ball POM.
Spring 1.4310 (AISI 301 equivalent) wire.
Version:Ball, white.Note:Spring plungers are used for indexing and positioning.
They can also be used as ejectors.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0311 Spring plungers with slot and POM ball, plastic 185 kB

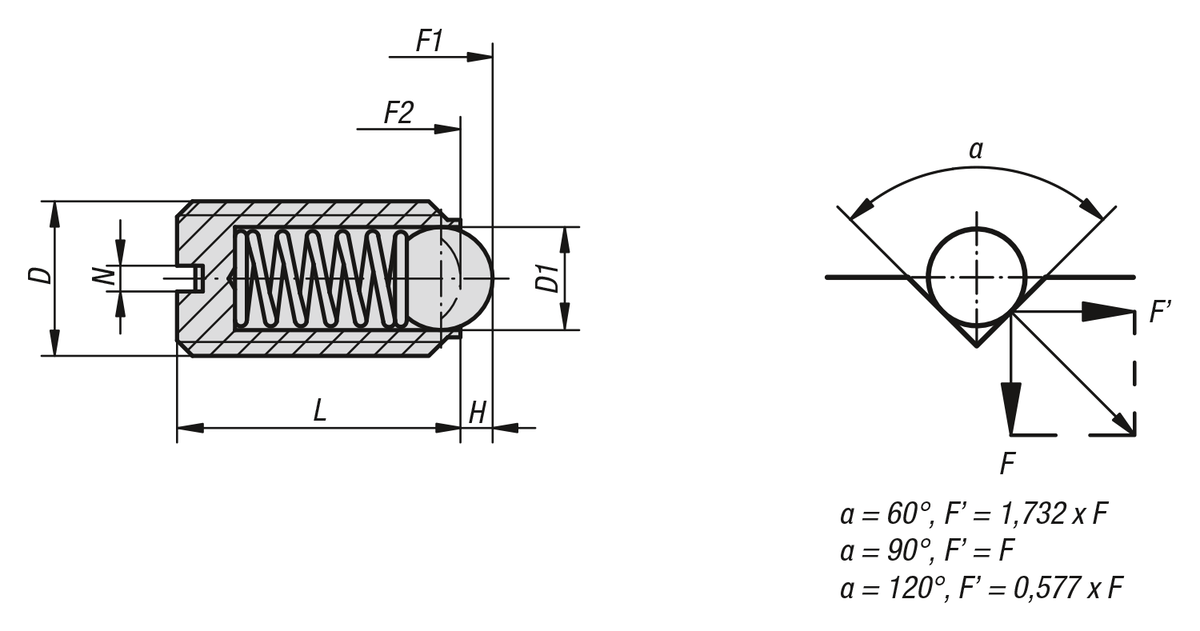

Drawings

Spring plungers with slot and POM ball, plastic

Item selection/filter

Item No.

DD1HLNSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0311.06M63,51141913 1.86 $ (USD)
K0311.08M851,5161,21530 2.35 $ (USD)
K0311.10M1062191,62040 2.61 $ (USD)
