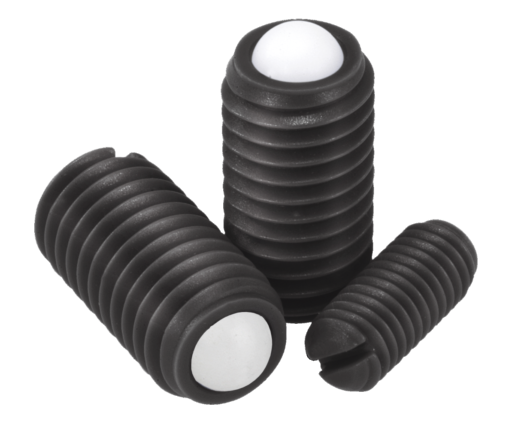

Spring Plungers ceramic ball, slotted, stainless steel
K0609

Spring Plungers ceramic ball, slotted, stainless steel

go back

Item description/product images

DescriptionMaterial:

body 1.4305 (AISI 303 equivalent).
Ceramic ball Si3N4.
Spring 1.4310 (AISI 301 equivalent).

Version:Bright.Note:

The combination of excellent material properties is a special feature of silicon nitride (Si3N4). These include high resiliance and stability, excellent wear properties and good chemical resistance.

Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0609 Spring Plungers ceramic ball, slotted, stainless steel 172 kB

Drawings

Spring Plungers ceramic ball, slotted, stainless steel

Item selection/filter

Item No.

DD1HLNSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0609.05M530,9120,8611 6.58 $ (USD)
K0609.06M63,51141913 6.58 $ (USD)
K0609.08M851,5161,21530 8.92 $ (USD)
K0609.10M1062191,62035 10.13 $ (USD)
K0609.12M1282,52223055 15.54 $ (USD)
K0609.16M16103,5242,565125 19.54 $ (USD)
