Spring plungers with hexagon socket and flattened thrust pin, stainless steel

K1379

Spring plungers with hexagon socket and flattened thrust pin,...

Products
- Spring Plungers
  - Pin Plungers
    - Spring plungers with hexagon socket and flattened thrust pin, stainless steel

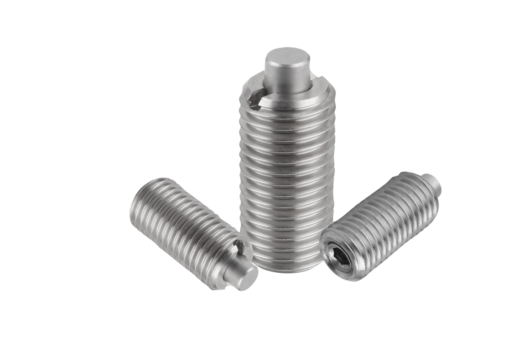

Item description/product images

DescriptionMaterial:

body 1.4305 (AISI 303 equivalent).
Thrust pin 1.4034 (AISI 420 equivalent).
Spring 1.4310 (AISI 301 equivalent).

Version:Bright.
Thrust pin hardened.Note:These spring plungers are chiefly used as ejectors and spring stops in machine construction.
The thrust pin is actuated in the axial direction.Drawing reference:

1) grub screw glued in

Special features:

Stainless steel

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1379 Spring plungers with hexagon socket and flattened thrust pin, stainless steel

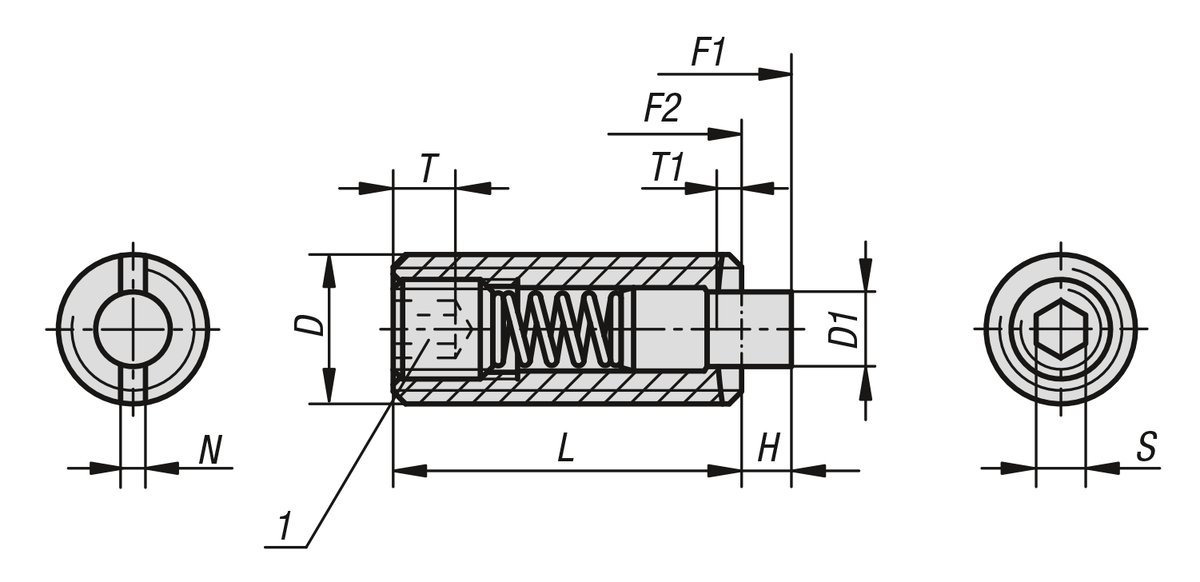

Drawings

Spring plungers with hexagon socket and flattened thrust pin, stainless steel

Spring plungers with hexagon socket and flattened thrust pin, stainless steel

Item selection/filter

Item No.	D	D1	H	L	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Item No. Installation tool	CAD	Acc.	Price	Order
K1379.05	M5	2,4	2,3	18	0,8	0,8	1,5	5	17	K0317.905			12.64 $ (USD)
K1379.06	M6	2,7	2,5	20	1	1	2	6	17	K0317.906			12.64 $ (USD)
K1379.08	M8	3,5	3	22	1,4	1,2	2,5	7	29	K0317.908			14.41 $ (USD)
K1379.10	M10	4	3	22	1,4	1,6	3	8	31	K0317.910			16.86 $ (USD)
K1379.12	M12	6	4	28	2	2	4	10	47	K0317.912			21.48 $ (USD)
K1379.16	M16	7,5	5	32	2,5	2,5	5	38	85	K0317.916			33.73 $ (USD)
