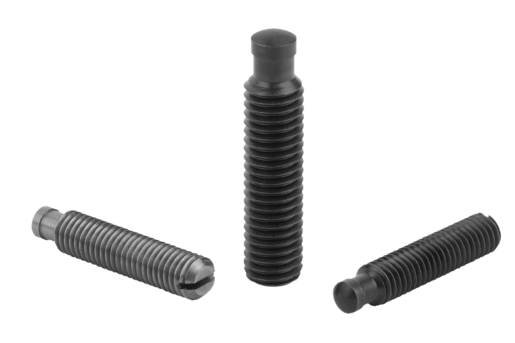

K0390Grub screws with thrust point DIN 6332 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel.Version:Steel: thrust point case-hardened, black.
Stainless steel: bright.Note:The thrust journal of the grub screws per DIN 6332 is designed for direct clamping as well as for use in conjunction with a thrust pad K0392.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | D1 | L1 | D2 | D3 | L | L2 | L3 | L5 | CAD | Acc. | Price | Order |
|---|
| K0390.06X30 | steel | M6 | 30 | 4,5 | 4 | 24 | 6 | 2,5 | 2,2 |  | | 2.37 $ (USD) | | | K0390.06X35 | steel | M6 | 35 | 4,5 | 4 | 29 | 6 | 2,5 | 2,2 | | | 1.97 $ (USD) | | | K0390.06X40 | steel | M6 | 40 | 4,5 | 4 | 34 | 6 | 2,5 | 2,2 | | | 2.50 $ (USD) | | | K0390.06X50 | steel | M6 | 50 | 4,5 | 4 | 44 | 6 | 2,5 | 2,2 | | | 2.06 $ (USD) | | | K0390.08X35 | steel | M8 | 35 | 6 | 5,4 | 27,5 | 7,5 | 3 | 3 | | | 2.41 $ (USD) | | | K0390.08X40 | steel | M8 | 40 | 6 | 5,4 | 32,5 | 7,5 | 3 | 3 | | | 2.21 $ (USD) | | | K0390.08X45 | steel | M8 | 45 | 6 | 5,4 | 37,5 | 7,5 | 3 | 3 | | | 2.42 $ (USD) | | | K0390.08X50 | steel | M8 | 50 | 6 | 5,4 | 42,5 | 7,5 | 3 | 3 | | | 2.46 $ (USD) | | | K0390.08X60 | steel | M8 | 60 | 6 | 5,4 | 52,5 | 7,5 | 3 | 3 | | | 2.69 $ (USD) | | | K0390.10X50 | steel | M10 | 50 | 8 | 7,2 | 41 | 9 | 4,5 | 3,6 | | | 3.15 $ (USD) | | | K0390.10X55 | steel | M10 | 55 | 8 | 7,2 | 46 | 9 | 4,5 | 3,6 | | | 3.17 $ (USD) | | | K0390.10X60 | steel | M10 | 60 | 8 | 7,2 | 51 | 9 | 4,5 | 3,6 | | | 3.26 $ (USD) | | | K0390.10X65 | steel | M10 | 65 | 8 | 7,2 | 56 | 9 | 4,5 | 3,6 | | | 3.40 $ (USD) | | | K0390.10X80 | steel | M10 | 80 | 8 | 7,2 | 71 | 9 | 4,5 | 3,6 | | | 3.76 $ (USD) | | | K0390.12X60 | steel | M12 | 60 | 8 | 7,2 | 50 | 10 | 4,5 | 4,5 | | | 4.12 $ (USD) | | | K0390.12X65 | steel | M12 | 65 | 8 | 7,2 | 55 | 10 | 4,5 | 4,5 | | | 4.16 $ (USD) | | | K0390.12X70 | steel | M12 | 70 | 8 | 7,2 | 60 | 10 | 4,5 | 4,5 | | | 4.49 $ (USD) | | | K0390.12X80 | steel | M12 | 80 | 8 | 7,2 | 70 | 10 | 4,5 | 4,5 | | | 4.62 $ (USD) | | | K0390.12X100 | steel | M12 | 100 | 8 | 7,2 | 90 | 10 | 4,5 | 4,5 | | | 5.15 $ (USD) | | | K0390.14X60 | steel | M14 | 60 | 10 | 9 | 48 | 12 | 5 | 5 | | | 18.59 $ (USD) | | | K0390.14X80 | steel | M14 | 80 | 10 | 9 | 68 | 12 | 5 | 5 | | | 18.59 $ (USD) | | | K0390.14X100 | steel | M14 | 100 | 10 | 9 | 88 | 12 | 5 | 5 | | | 18.59 $ (USD) | | | K0390.16X65 | steel | M16 | 65 | 12 | 11 | 53 | 12 | 5 | 5,3 | | | 6.45 $ (USD) | | | K0390.16X70 | steel | M16 | 70 | 12 | 11 | 58 | 12 | 5 | 5,3 | | | 6.72 $ (USD) | | | K0390.16X80 | steel | M16 | 80 | 12 | 11 | 68 | 12 | 5 | 5,3 | | | 7.35 $ (USD) | | | K0390.16X100 | steel | M16 | 100 | 12 | 11 | 88 | 12 | 5 | 5,3 | | | 8.51 $ (USD) | | | K0390.16X125 | steel | M16 | 125 | 12 | 11 | 113 | 12 | 5 | 5,3 | | | 9.41 $ (USD) | | | K0390.20X80 | steel | M20 | 80 | 15,5 | 14,4 | 66 | 14 | 5,5 | 5,6 | | | 11.72 $ (USD) | | | K0390.20X90 | steel | M20 | 90 | 15,5 | 14,4 | 76 | 14 | 5,5 | 5,6 | | | 14.34 $ (USD) | | | K0390.20X100 | steel | M20 | 100 | 15,5 | 14,4 | 86 | 14 | 5,5 | 5,6 | | | 13.15 $ (USD) | | | K0390.20X125 | steel | M20 | 125 | 15,5 | 14,4 | 111 | 14 | 5,5 | 5,6 | | | 14.83 $ (USD) | | | K0390.20X150 | steel | M20 | 150 | 15,5 | 14,4 | 136 | 14 | 5,5 | 5,6 | | | 16.30 $ (USD) | | | K0390.061X30 | stainless steel | M6 | 30 | 4,5 | 4 | 24 | 6 | 2,5 | 2,2 | | | 2.52 $ (USD) | | | K0390.061X35 | stainless steel | M6 | 35 | 4,5 | 4 | 29 | 6 | 2,5 | 2,2 | | | 2.52 $ (USD) | | | K0390.061X40 | stainless steel | M6 | 40 | 4,5 | 4 | 34 | 6 | 2,5 | 2,2 | | | 2.60 $ (USD) | | | K0390.061X50 | stainless steel | M6 | 50 | 4,5 | 4 | 44 | 6 | 2,5 | 2,2 | | | 2.81 $ (USD) | | | K0390.081X35 | stainless steel | M8 | 35 | 6 | 5,4 | 27,5 | 7,5 | 3 | 3 | | | 2.81 $ (USD) | | | K0390.081X40 | stainless steel | M8 | 40 | 6 | 5,4 | 32,5 | 7,5 | 3 | 3 | | | 2.90 $ (USD) | | | K0390.081X45 | stainless steel | M8 | 45 | 6 | 5,4 | 37,5 | 7,5 | 3 | 3 | | | 3.11 $ (USD) | | | K0390.081X50 | stainless steel | M8 | 50 | 6 | 5,4 | 42,5 | 7,5 | 3 | 3 | | | 3.15 $ (USD) | | | K0390.081X60 | stainless steel | M8 | 60 | 6 | 5,4 | 52,5 | 7,5 | 3 | 3 | | | 3.53 $ (USD) | | | K0390.101X50 | stainless steel | M10 | 50 | 8 | 7,2 | 41 | 9 | 4,5 | 3,6 | | | 4.10 $ (USD) | | | K0390.101X55 | stainless steel | M10 | 55 | 8 | 7,2 | 46 | 9 | 4,5 | 3,6 | | | 4.16 $ (USD) | | | K0390.101X60 | stainless steel | M10 | 60 | 8 | 7,2 | 51 | 9 | 4,5 | 3,6 | | | 4.20 $ (USD) | | | K0390.101X65 | stainless steel | M10 | 65 | 8 | 7,2 | 56 | 9 | 4,5 | 3,6 | | | 4.45 $ (USD) | | | K0390.101X80 | stainless steel | M10 | 80 | 8 | 7,2 | 71 | 9 | 4,5 | 3,6 | | | 4.87 $ (USD) | | | K0390.121X60 | stainless steel | M12 | 60 | 8 | 7,2 | 50 | 10 | 4,5 | 4,5 | | | 5.40 $ (USD) | | | K0390.121X65 | stainless steel | M12 | 65 | 8 | 7,2 | 55 | 10 | 4,5 | 4,5 | | | 5.44 $ (USD) | | | K0390.121X70 | stainless steel | M12 | 70 | 8 | 7,2 | 60 | 10 | 4,5 | 4,5 | | | 5.82 $ (USD) | | | K0390.121X80 | stainless steel | M12 | 80 | 8 | 7,2 | 70 | 10 | 4,5 | 4,5 | | | 5.99 $ (USD) | | | K0390.121X100 | stainless steel | M12 | 100 | 8 | 7,2 | 90 | 10 | 4,5 | 4,5 | | | 6.72 $ (USD) | | | K0390.141X60 | stainless steel | M14 | 60 | 10 | 9 | 48 | 12 | 5 | 5 | | | 24.11 $ (USD) | | | K0390.141X80 | stainless steel | M14 | 80 | 10 | 9 | 68 | 12 | 5 | 5 | | | 24.11 $ (USD) | | | K0390.141X100 | stainless steel | M14 | 100 | 10 | 9 | 88 | 12 | 5 | 5 | | | 24.11 $ (USD) | | | K0390.161X65 | stainless steel | M16 | 65 | 12 | 11 | 53 | 12 | 5 | 5,3 | | | 8.42 $ (USD) | | | K0390.161X70 | stainless steel | M16 | 70 | 12 | 11 | 58 | 12 | 5 | 5,3 | | | 8.69 $ (USD) | | | K0390.161X80 | stainless steel | M16 | 80 | 12 | 11 | 68 | 12 | 5 | 5,3 | | | 9.51 $ (USD) | | | K0390.161X100 | stainless steel | M16 | 100 | 12 | 11 | 88 | 12 | 5 | 5,3 | | | 11.07 $ (USD) | | | K0390.161X125 | stainless steel | M16 | 125 | 12 | 11 | 113 | 12 | 5 | 5,3 | | | 12.22 $ (USD) | | | K0390.201X80 | stainless steel | M20 | 80 | 15,5 | 14,4 | 66 | 14 | 5,5 | 5,6 | | | 15.25 $ (USD) | | | K0390.201X90 | stainless steel | M20 | 90 | 15,5 | 14,4 | 76 | 14 | 5,5 | 5,6 | | | 16.88 $ (USD) | | | K0390.201X100 | stainless steel | M20 | 100 | 15,5 | 14,4 | 86 | 14 | 5,5 | 5,6 | | | 17.01 $ (USD) | | | K0390.201X125 | stainless steel | M20 | 125 | 15,5 | 14,4 | 111 | 14 | 5,5 | 5,6 | | | 19.32 $ (USD) | | | K0390.201X150 | stainless steel | M20 | 150 | 15,5 | 14,4 | 136 | 14 | 5,5 | 5,6 | | | 21.19 $ (USD) | |
