Spring Plungers from KIPP

Spring plungers are used in a wide variety of applications for workholding, clamping, or indexing. They can be used as thrust pins or ejector pins. Also known as ball catches or ball plungers, they are common in machine building, tooling, automotive, and even consumer products.

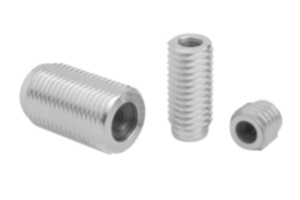

Ball Plungers

The spring force is applied to a ball at the end of the spring plunger body, especially suited for quick detent action.
  • Steel, stainless steel, or ceramic balls
  • Steel or stainless steel bodies
  • Inch or metric
  • Slotted or hex drive

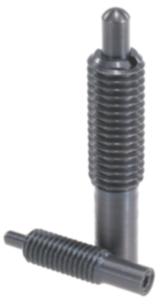

Pin Plungers

The spring force is applied to a pin with a rounded end, enabling greater travel.
  • Steel, stainless steel, or plastic pins
  • Steel or stainless steel bodies
  • Inch or metric
  • Slotted or hex drive

LONG-LOK Locking Elements

KIPP ball plungers and pin plungers are available with LONG-LOK nylon locking elements. The LONG-LOK prevents any change in position due to vibration. The spring plunger is securely held in place, but it can be adjusted, removed, or reinstalled up to 20 times with no significant loss in holding power. This is a significant advantage over other threadlock systems.

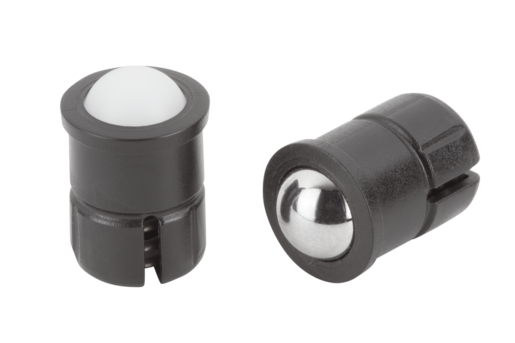

Push Fit Plungers

Push fit plungers have a smooth body designed for applications where threaded installation is not needed. Especially suited for soft materials such as aluminum, plastic, or wood. Some versions include O-rings to enable installation in overhead applications.
  • Stainless steel or plastic balls
  • Stainless steel, plastic, or brass bodies
  • Metric

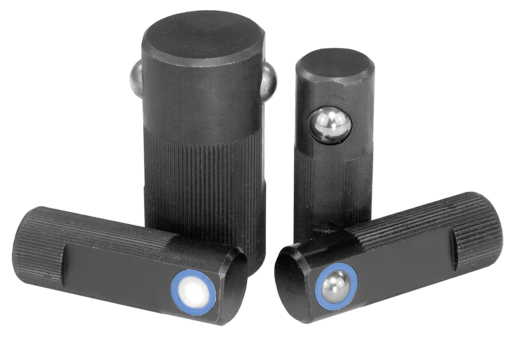

Lateral Spring Plungers

Designed for workholding applications where a lateral force is desired to hold materials in place. Available with or without a seal to keep debris out of the spring mechanism. An optional eccentric bushing enables precise adjustment of the plunger.
  • Aluminum body
  • Steel or plastic pins
  • With or without seal
  • Inch
