Spring plungers with hexagon socket and thrust pin, long version

go back

Products
- Spring Plungers
  - Spring plungers with hexagon socket and thrust pin, long version

Item description/product images

DescriptionMaterial:body steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.Version:Black oxidized.

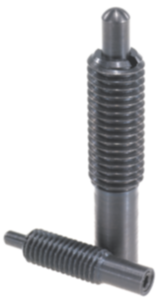

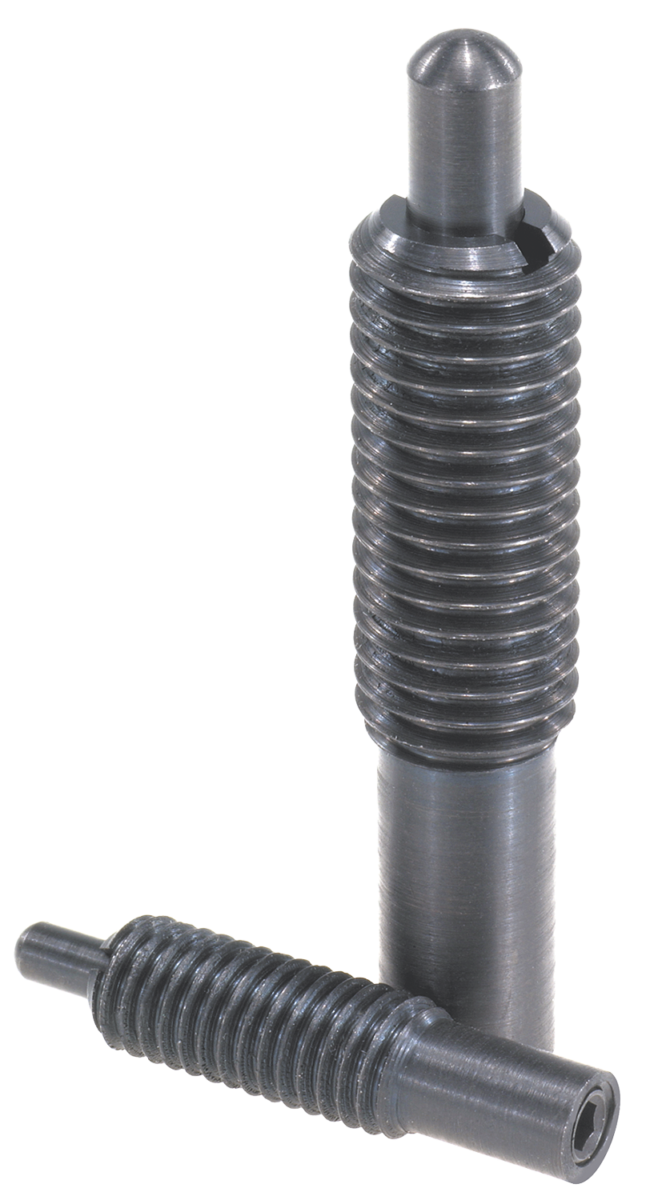

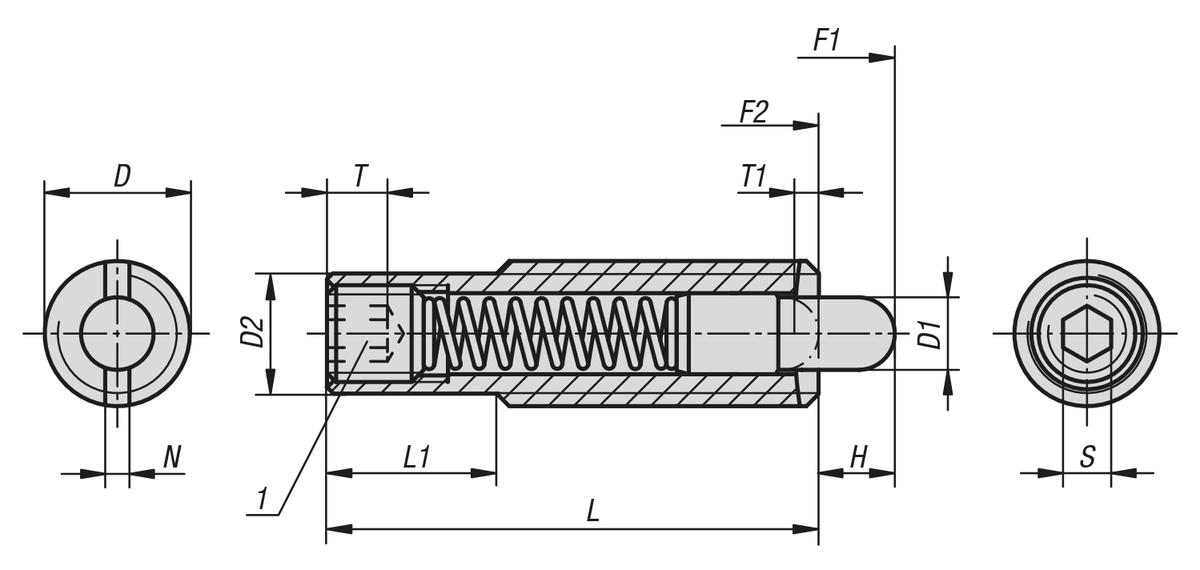

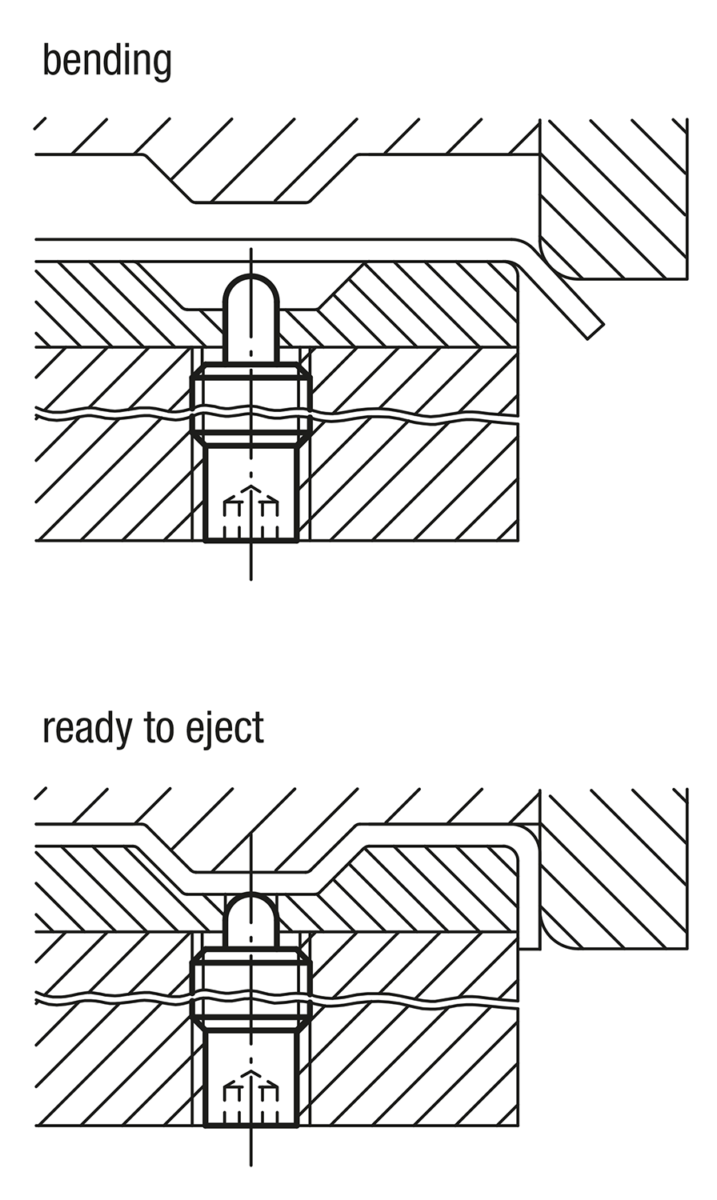

Thrust pin hardened.Note:These spring plungers are chiefly used as ejectors and spring stops in machine construction.Drawing reference:

1) grub screw glued in

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0657 Spring plungers with hexagon socket and thrust pin, long version

277 kB

Drawings

Item selection/filter

Item No.	D	D1	D2	L	L1	H	T	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Item No. Installation tool	Price
