Product groups

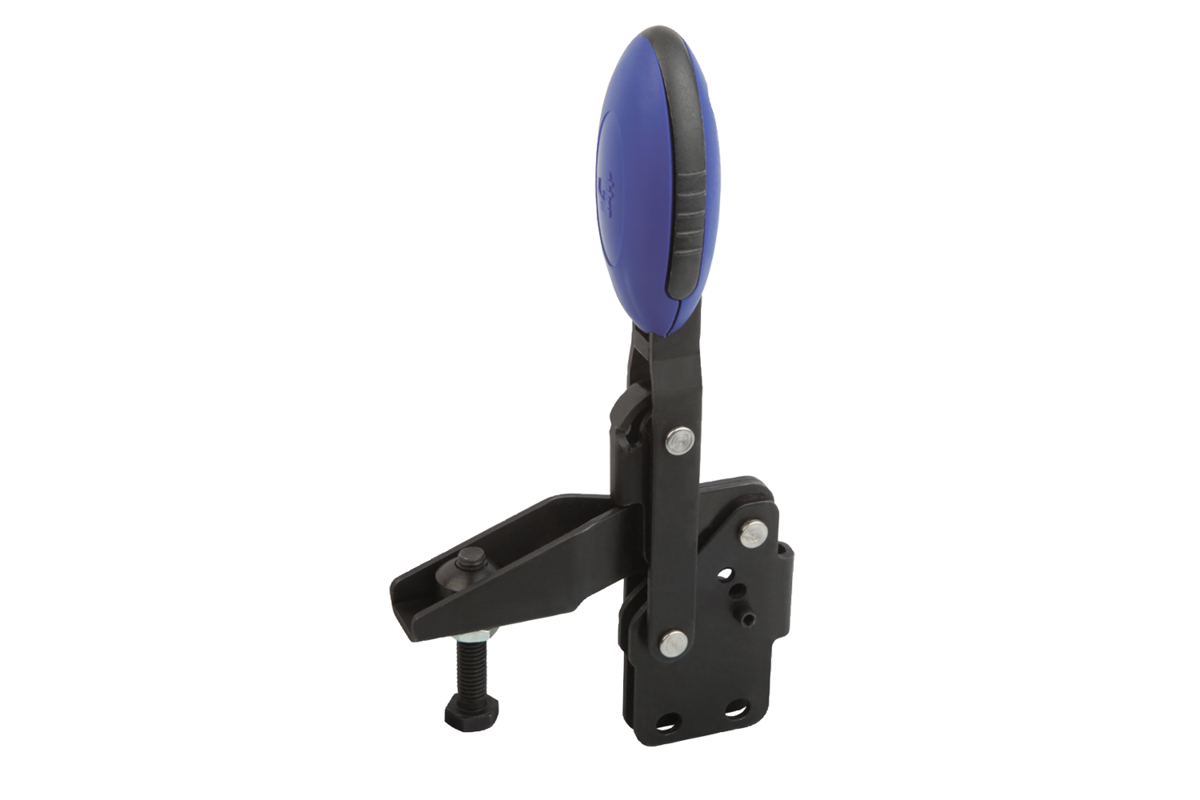

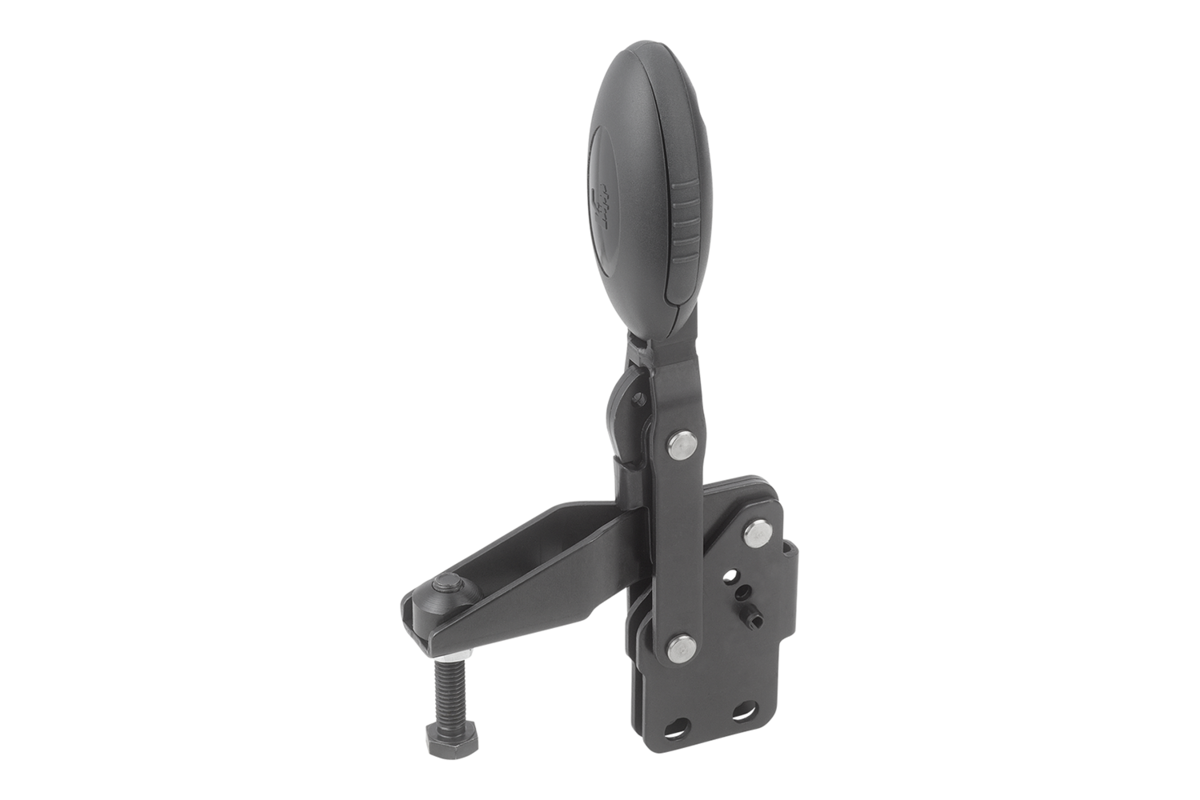

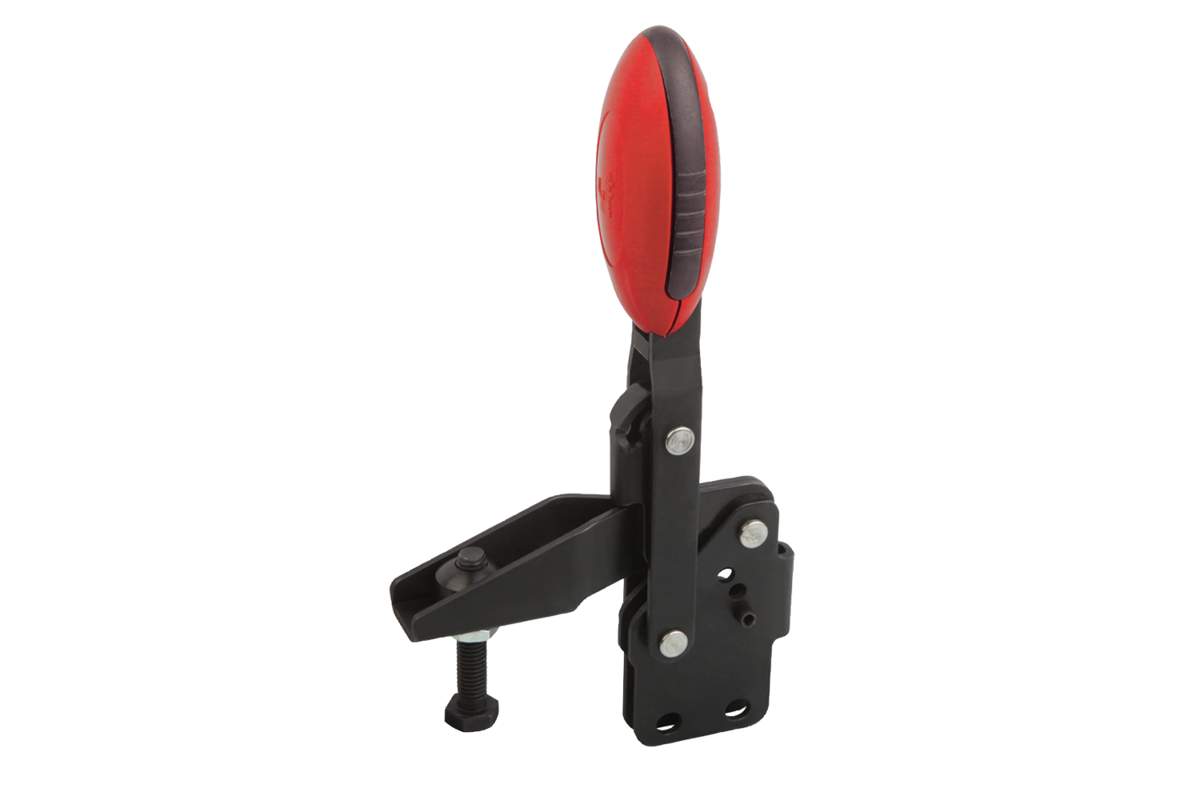

Vertical Toggle Clamps with Safety Interlock
with straight foot and adjustable clamping spindle
K0663

Vertical Toggle Clamps with Safety Interlock with straight foot...

go back

Item description/product images

DescriptionMaterial:Steel.
Grip polyamide.
Unlocking bracket TPE.
Version:Carbonitrided and black oxidised.
Grip blue, black or red.
Note:Maintenance-free high quality link bushings. Sustainable constant force during opening and closing. Optimum stability through the conical, U-profile clamping arm. Including internal bar lock with automatic safety catch.On request:Other grip colours.Accessory:K0106
K0383
K0388
K0390
K0391
K0392
K0393

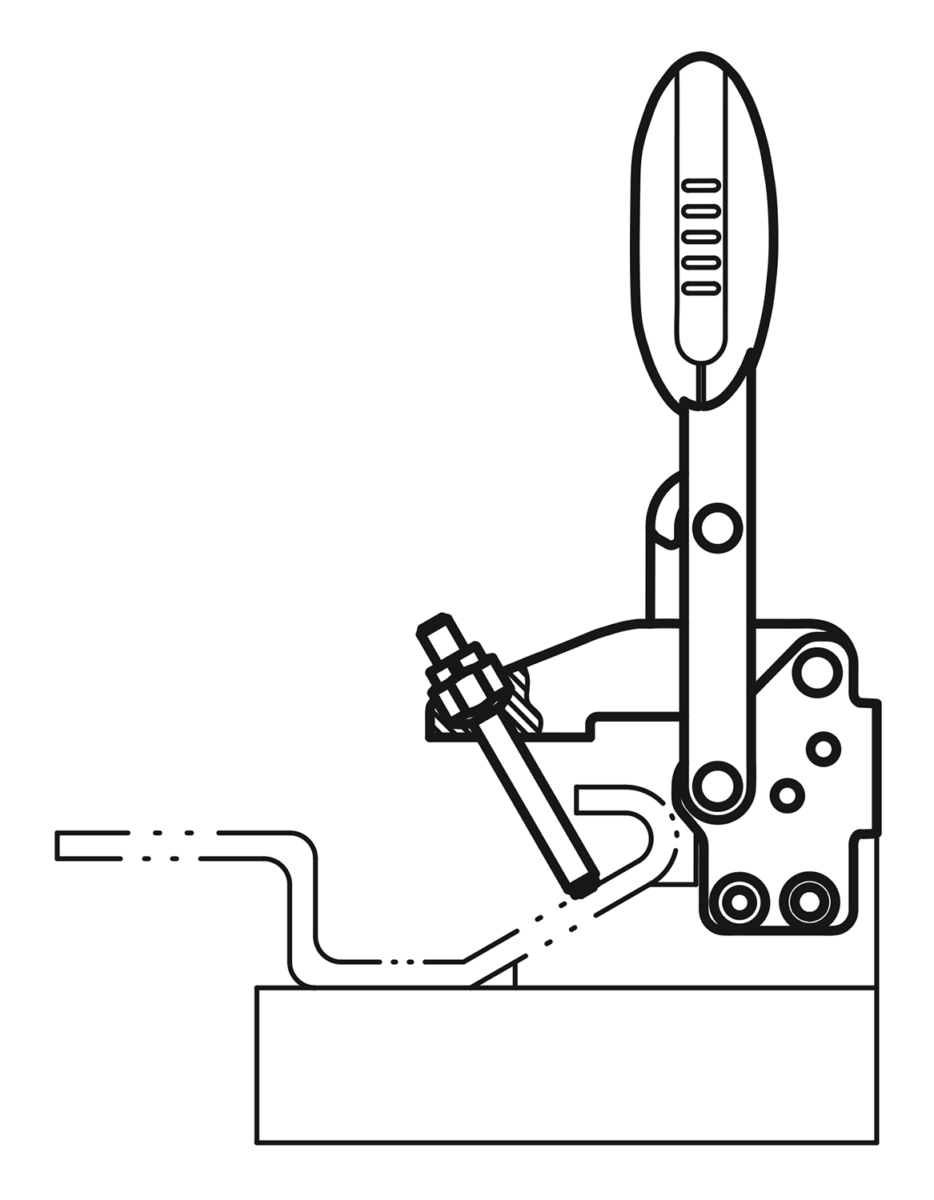

Drawing reference:
1) stop pin position 1
2) stop pin position 2
Special features:
RoHS

Drawings

Vertical Toggle Clamps with Safety Interlock
with straight foot and adjustable clamping spindle

Item selection/filter

Order No.Component
colour
Opening angle
holding arm
position 1
Opening angle
holding arm
position 2
Opening angle
holding arm
stop pin removed
Opening angle
handle
position 1
Opening angle
handle
position 2
Hand
force
FH N
Retaining
force
F1 N
Retaining
force
F2 N
Clamping
force
F3 N
Clamping
force
F4 N
CADAcc.PriceOrder
K0663.006101ultramarine RAL 500256°83°141°46°56°160135016509201050  0.00 $ (USD)
K0663.008101ultramarine RAL 500213°93°158°26°61°190200028009401350  0.00 $ (USD)
K0663.010101ultramarine RAL 500297°176°19°59°2502500450015002800  0.00 $ (USD)
K0663.012101ultramarine RAL 500211°88°164°24°60°2803000550014002800  0.00 $ (USD)
K0663.006100black grey RAL 702156°83°141°46°56°160135016509201050  0.00 $ (USD)
K0663.008100black grey RAL 702113°93°158°26°61°190200028009401350  0.00 $ (USD)
K0663.010100black grey RAL 702197°176°19°59°2502500450015002800  0.00 $ (USD)
K0663.012100black grey RAL 702111°88°164°24°60°2803000550014002800  0.00 $ (USD)
K0663.006103traffic red RAL 302056°83°141°46°56°160135016509201050  0.00 $ (USD)
K0663.008103traffic red RAL 302013°93°158°26°61°190200028009401350  0.00 $ (USD)
K0663.010103traffic red RAL 302097°176°19°59°2502500450015002800  0.00 $ (USD)
K0663.012103traffic red RAL 302011°88°164°24°60°2803000550014002800  0.00 $ (USD)
Order No.Component
colour
hole
arrangement
MAA1A2A3A4BB1B2B3B6CC2D

HLL1CADAcc.PriceOrder
K0663.006101ultramarine RAL 50023M6x351429712-10,25,217,512,553,437,65,55,5175,786,553  0.00 $ (USD)
K0663.008101ultramarine RAL 50023M8x452139919-10,25,220,615,651,1496,56,8207,610762  0.00 $ (USD)
K0663.010101ultramarine RAL 50022M10x5532508273,514,17,125,518,556,562,313925415395  0.00 $ (USD)
K0663.012101ultramarine RAL 50025M12x70325310,5--14,17,1282156,569,898,8272,1173,5113,5  0.00 $ (USD)
K0663.006100black grey RAL 70213M6x351429712-10,25,217,512,553,437,65,55,5175,786,553  0.00 $ (USD)
K0663.008100black grey RAL 70213M8x452139919-10,25,220,615,651,1496,56,8207,610762  0.00 $ (USD)
K0663.010100black grey RAL 70212M10x5532508273,514,17,125,518,556,562,313925415395  0.00 $ (USD)
K0663.012100black grey RAL 70215M12x70325310,5--14,17,1282156,569,898,8272,1173,5113,5  0.00 $ (USD)
K0663.006103traffic red RAL 30203M6x351429712-10,25,217,512,553,437,65,55,5175,786,553  0.00 $ (USD)
K0663.008103traffic red RAL 30203M8x452139919-10,25,220,615,651,1496,56,8207,610762  0.00 $ (USD)
K0663.010103traffic red RAL 30202M10x5532508273,514,17,125,518,556,562,313925415395  0.00 $ (USD)
K0663.012103traffic red RAL 30205M12x70325310,5--14,17,1282156,569,898,8272,1173,5113,5  0.00 $ (USD)
