Positioning bushings for indexing plungers

go back

Products
- Indexing Plungers
  - Indexing Plungers
    - Positioning bushings for indexing plungers

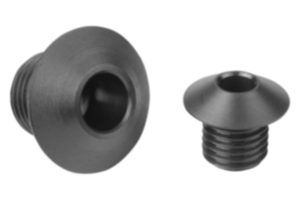

Item description/product images

DescriptionMaterial:

Steel or 1.4034 (AISI 420 equivalent) stainless steel.

Version:Steel hardened and black oxidized.
Stainless steel, hardened, bright.
Note:Positioning bushings suitable for indexing plunger.
Matched with mounting brackets K0638.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1290 Positioning bushings for indexing plungers

247 kB

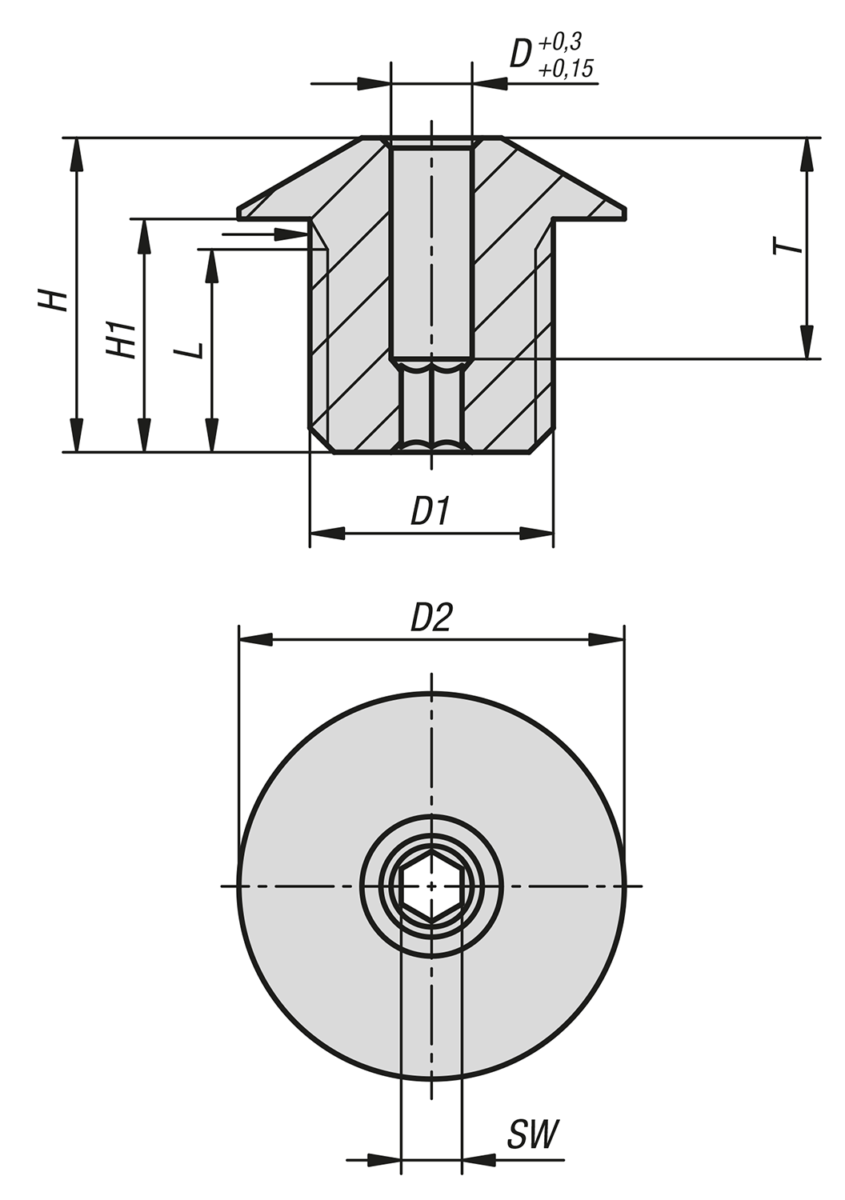

Drawings

Item selection/filter

Order No.	Main material	D	D1	D2	H	H1	L	SW	T	Price
K1290.04	steel	4	M12x1,5	19	15,5	11,5	10	3	11	10.74 $ (USD)
K1290.05	steel	5	M12x1,5	19	15,5	11,5	10	4	10	10.74 $ (USD)
K1290.06	steel	6	M12x1,5	19	15,5	11,5	10	4	10	10.74 $ (USD)
K1290.08	steel	8	M16x1,5	26	19,5	14,5	13	6	12	12.42 $ (USD)
K1290.10	steel	10	M16x1,5	26	19,5	14,5	13	6	12	12.42 $ (USD)
K1290.104	stainless steel	4	M12x1,5	19	15,5	11,5	10	3	11	15.22 $ (USD)
K1290.105	stainless steel	5	M12x1,5	19	15,5	11,5	10	4	10	15.22 $ (USD)
K1290.106	stainless steel	6	M12x1,5	19	15,5	11,5	10	4	10	15.22 $ (USD)
K1290.108	stainless steel	8	M16x1,5	26	19,5	14,5	13	6	12	21.64 $ (USD)
K1290.110	stainless steel	10	M16x1,5	26	19,5	14,5	13	6	12	21.64 $ (USD)
