Product groups
Adjustable Handles with thrust pin external thread
K0780

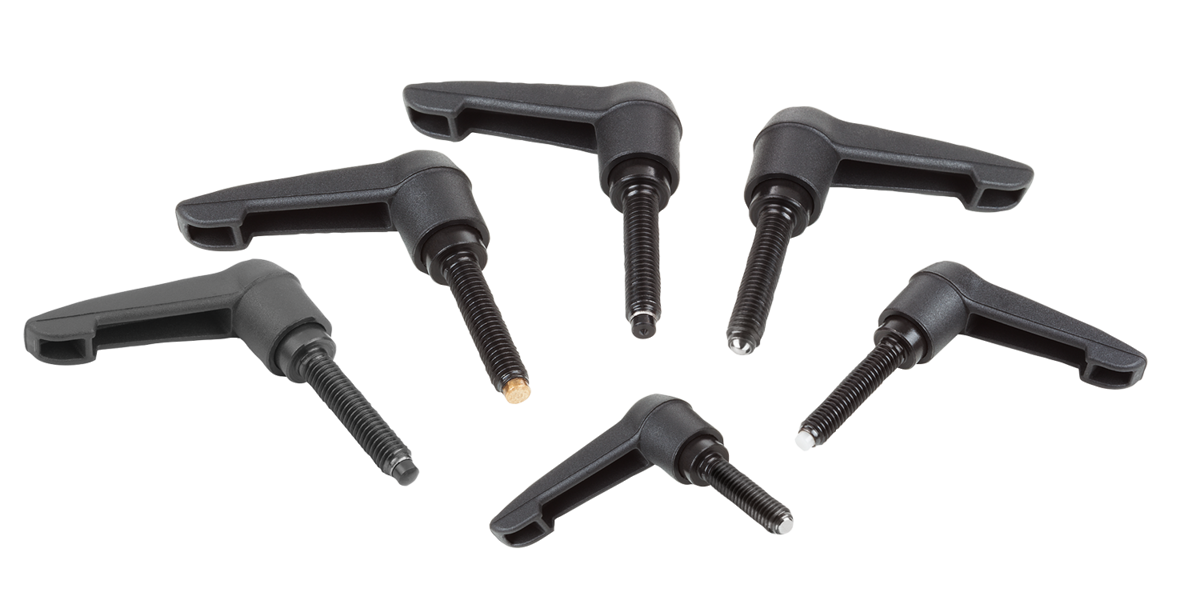

Adjustable Handles with thrust pin external thread

go back

Item description/product images

DescriptionMaterial:Handles fibreglass reinforced plastic with die-cast zinc toothed rings.
Steel parts grade 5.8.

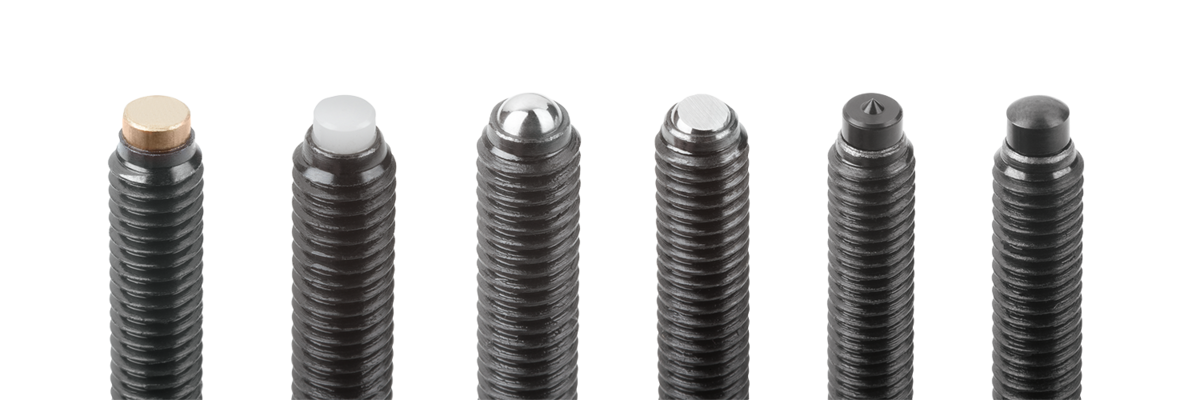

Thrust pin, brass.
Version:Steel parts black oxidised.Note:These components are used to prevent marring the workpiece surface.On request:Other external threads, screw lengths, clamp lever colours and thrust pin types as well as special versions.
Dimension “H1” optionally available in other lengths at extra cost.
Drawing reference:
1) Thrust pin
Special features:
RoHS

Drawings

Adjustable Handles with thrust pin external thread

Item selection/filter

Order No.

SizeXDD1D2D3HH1H2H3H4AA1BNo. of
teeth
LCADAcc.PriceOrder
K0780.11051X201M5101314,5324,54153033,540477,51620 on request
K0780.11051X301M5101314,5324,54153033,540477,51630 on request
K0780.11051X401M5101314,5324,54153033,540477,51640 on request
K0780.11051X501M5101314,5324,54153033,540477,51650 on request
K0780.11061X201M6101314,5424,54153033,540477,51620 on request
K0780.11061X301M6101314,5424,54153033,540477,51630 on request
K0780.11061X401M6101314,5424,54153033,540477,51640 on request
K0780.11061X501M6101314,5424,54153033,540477,51650 on request
K0780.12061X202M613,51819,5428,56,517,541,545,565759,52020 on request
K0780.12061X302M613,51819,5428,56,517,541,545,565759,52030 on request
K0780.12061X402M613,51819,5428,56,517,541,545,565759,52040 on request
K0780.12061X502M613,51819,5428,56,517,541,545,565759,52050 on request
K0780.12061X602M613,51819,5428,56,517,541,545,565759,52060 on request
K0780.12081X202M813,51819,55,528,56,517,541,545,565759,52020 on request
K0780.12081X302M813,51819,55,528,56,517,541,545,565759,52030 on request
K0780.12081X402M813,51819,55,528,56,517,541,545,565759,52040 on request
K0780.12081X502M813,51819,55,528,56,517,541,545,565759,52050 on request
K0780.12081X602M813,51819,55,528,56,517,541,545,565759,52060 on request
K0780.12101X202M1013,51819,5728,56,517,541,545,565759,52020 on request
K0780.12101X302M1013,51819,5728,56,517,541,545,565759,52030 on request
K0780.12101X402M1013,51819,5728,56,517,541,545,565759,52040 on request
K0780.12101X502M1013,51819,5728,56,517,541,545,565759,52050 on request
K0780.12101X602M1013,51819,5728,56,517,541,545,565759,52060 on request
