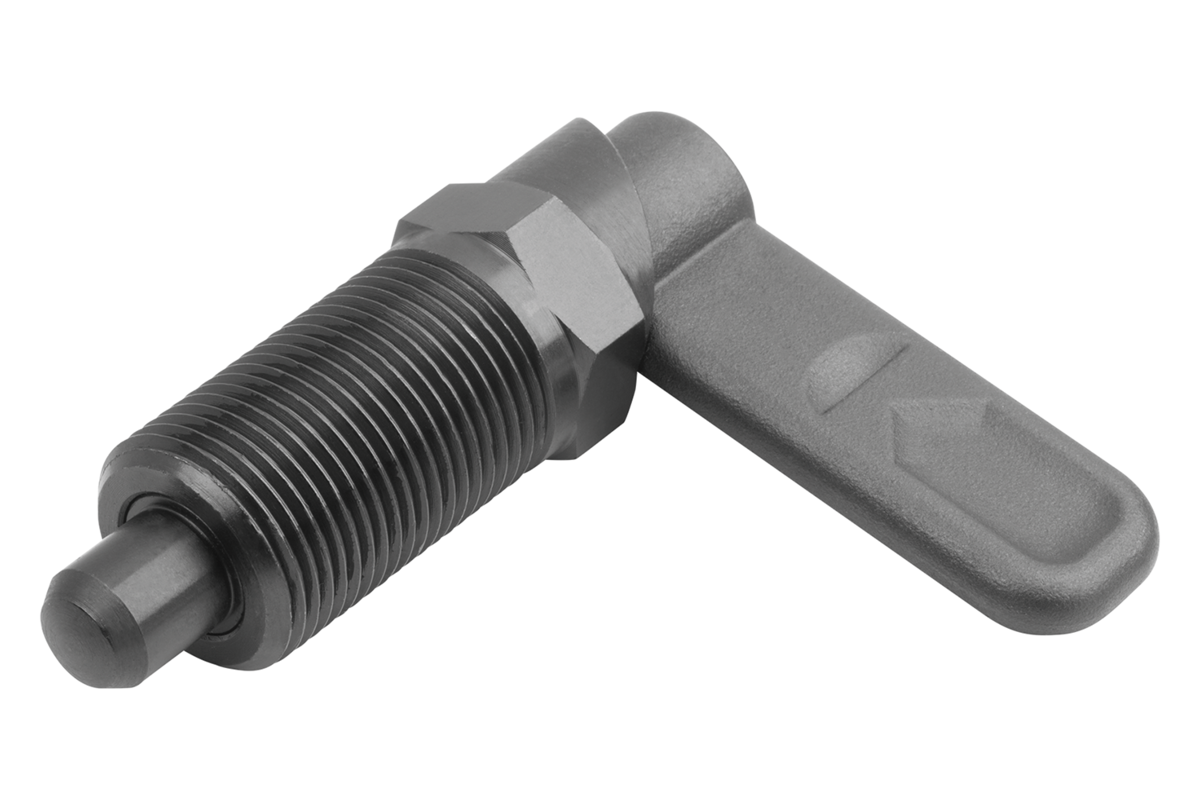

Cam-action indexing plunger, with hexagon, Form A

go back

Item description/product images

DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented.
Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position.
The notch ensures that the grip remains in this position and the indexing pin remains retracted.
Material:Grip 1.0503
Threaded sleeve and indexing pin 1.0718
Spring 1.4310
Grip cap thermoplastic PA.
Version:Threaded sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.

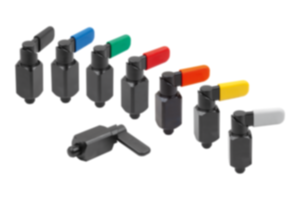

Grip cap in various colours:
- black grey RAL 7021.
- pure orange RAL 2004.
- colza yellow RAL 1021.
- traffic red RAL 3020.
- signal green RAL 6032.
- traffic blue RAL 5017.
- light grey RAL 7035.
Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Sleeves with a hexagon serve as assembly aids.
On request:Special versions.
Accessory:Mounting bracket K0638.
Positioning bushes K1290, K1839, K1840.
Drawing reference:
Form A: without grip cap or locknut
Form B: without grip cap, with locknut
Form C: with grip cap, without locknut
Form D: with grip cap and locknut
Special features:
RoHS

Drawings

Cam-action indexing plunger,
with hexagon, Form A

Item selection/filter

Order No.FormDD1D2LL1L3BB1HFx30°SW1Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K1679.041020A10M2020715030186122,8202060 33.00 $ (USD)
K1679.0410201A10M20x1,520715030186122,8202060 33.00 $ (USD)
K1679.0408201A8M20x1,520715030186122,3202060 33.00 $ (USD)
K1679.040410A4M101038,52515936110814 24.35 $ (USD)
K1679.040510A5M101038,525159361,310814 24.35 $ (USD)
K1679.040612A6M121247,4301910,83,681,812815 24.78 $ (USD)
K1679.0406161A6M16x1,51661,2402614,44,8101,8161535 29.69 $ (USD)
K1679.041220A12M2020715030186123202060 33.00 $ (USD)
K1679.040816A8M161661,2402614,44,8102,3161535 29.69 $ (USD)
K1679.040512A5M121247,4301910,83,681,312815 24.78 $ (USD)
K1679.0408121A8M12x1,51247,4301910,83,682,312815 24.78 $ (USD)
K1679.040610A6M101038,525159361,810814 24.35 $ (USD)
K1679.0412201A12M20x1,520715030186123202060 33.00 $ (USD)
K1679.0405121A5M12x1,51247,4301910,83,681,312815 24.78 $ (USD)
K1679.040616A6M161661,2402614,44,8101,8161535 29.69 $ (USD)
K1679.0406101A6M10x11038,525159361,810814 24.35 $ (USD)
K1679.0410161A10M16x1,51661,2402614,44,8102,8161535 29.69 $ (USD)
K1679.041016A10M161661,2402614,44,8102,8161535 29.69 $ (USD)
K1679.040812A8M121247,4301910,83,682,312815 24.78 $ (USD)
K1679.0406121A6M12x1,51247,4301910,83,681,812815 24.78 $ (USD)
K1679.0408161A8M16x1,51661,2402614,44,8102,3161535 29.69 $ (USD)
K1679.0404101A4M10x11038,52515936110814 24.35 $ (USD)
K1679.0405101A5M10x11038,525159361,310814 24.35 $ (USD)
K1679.040820A8M2020715030186122,3202060 33.00 $ (USD)
