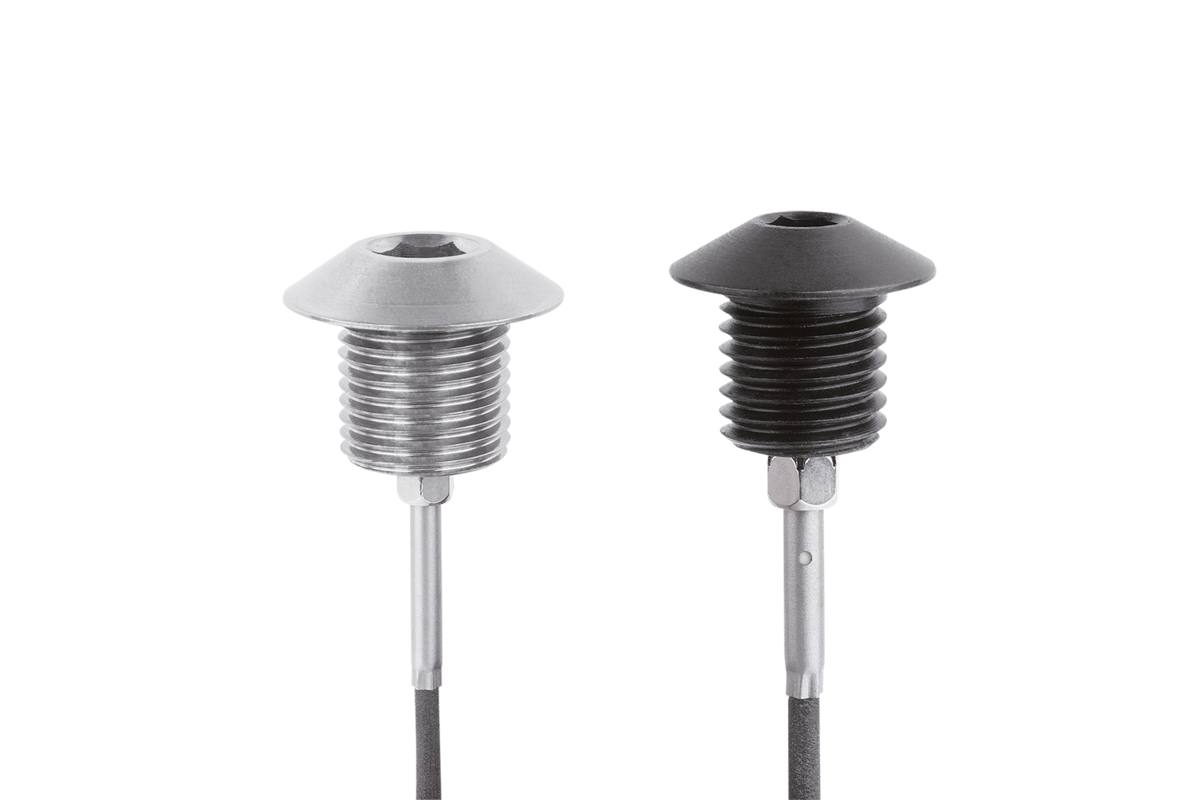

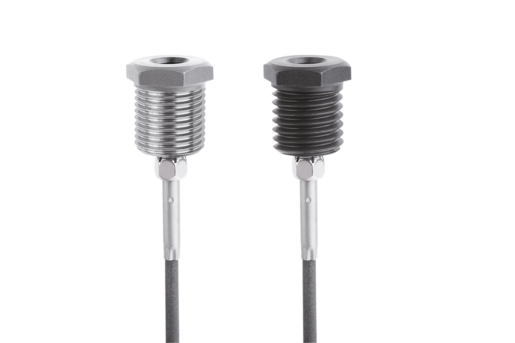

Positioning bushes, steel or stainless steel with status sensor, Form C, with thread and approach taper

Positioning bushes, steel or stainless steel with status sensor,...

go back

Item description/product images

DescriptionProduct description:Positioning bushes form a locating point for pin type operating and indexing elements and enable these to be securely and precisely engaged herein.

The positioning bushes with status sensor have a variably adjustable sensor integrated in the bush. These enable electronic feedback as to whether a pin is located in the positioning bush or not.
When using several bushes, it can be determined in which one an operating or indexing element is located.
Material:Version:Positioning bush:
Hardened and black oxidised steel.
Hardened, bright stainless steel.

Sensor bright.
Locknut nickel-plated.
Note:Matched to mounting bracket K0638.

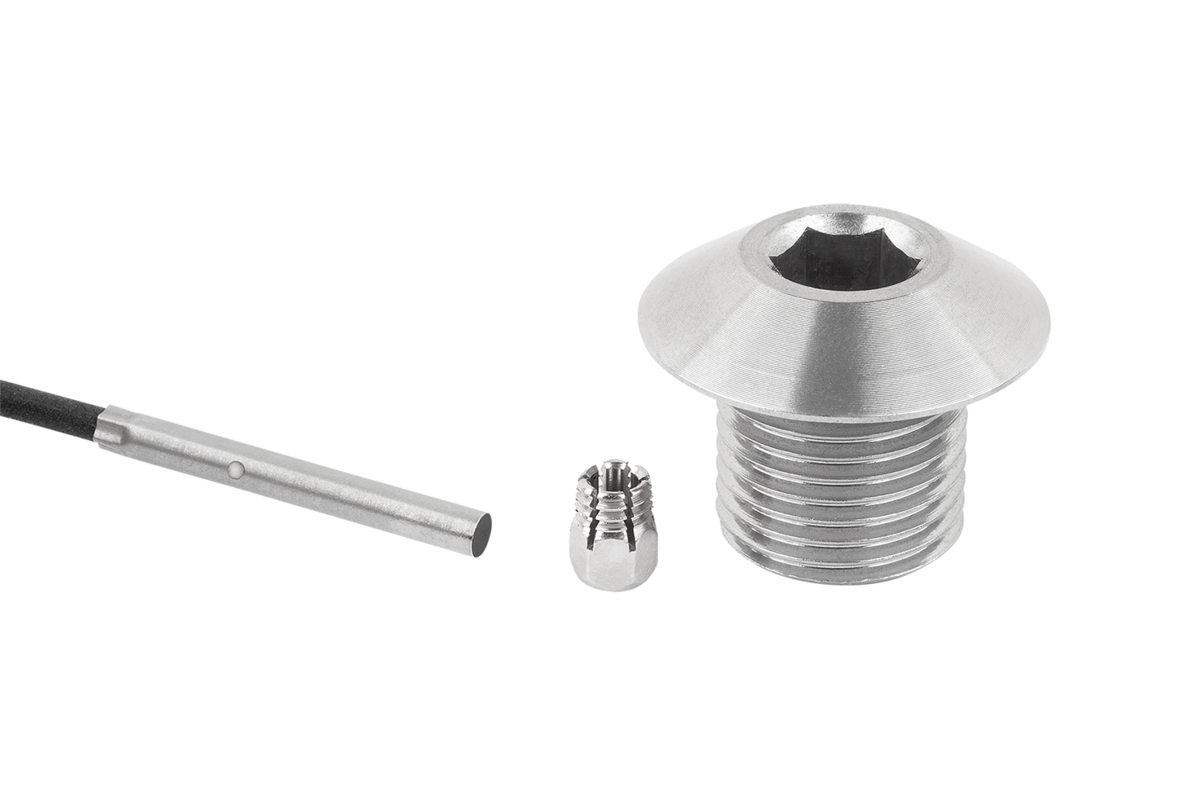

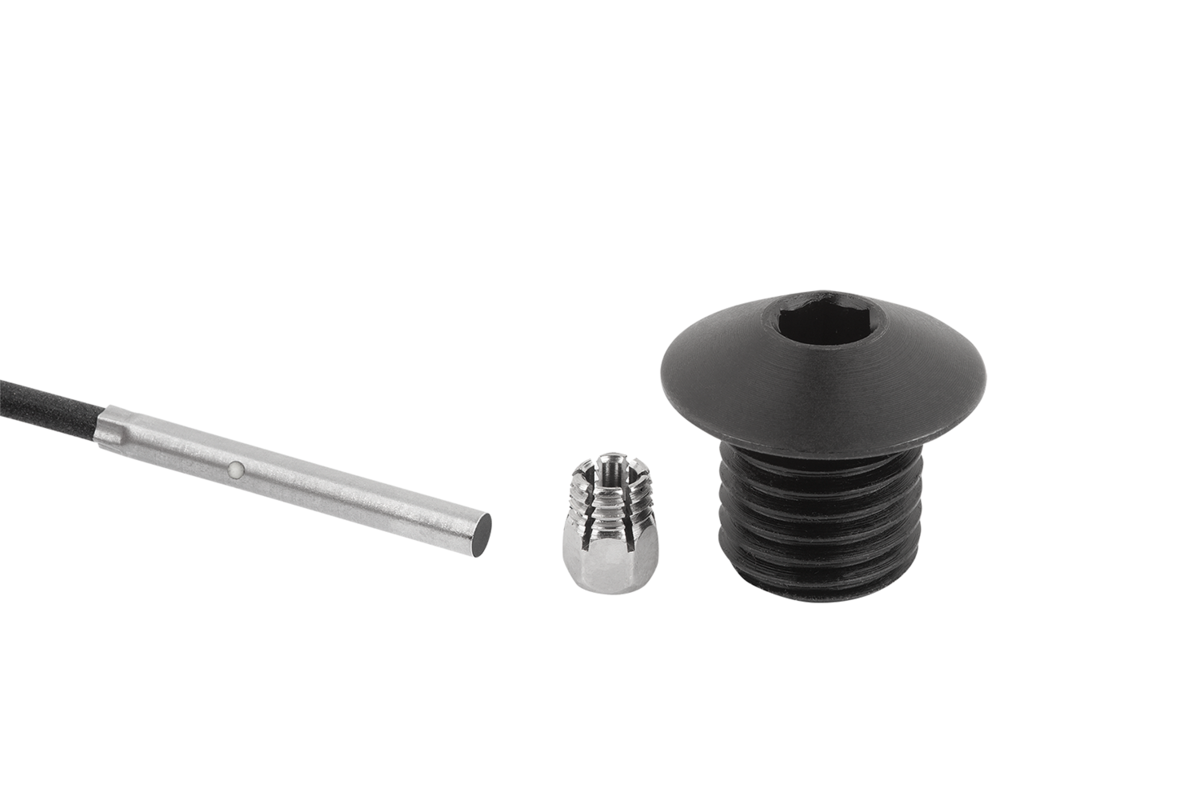

Status sensor and locknut are supplied loose.
Max. tightening torque for the locknut: 1.2 Nm.
Technical data:Inductive sensor:
Output circuit: PNP NO
Operating voltage: 10 - 30 V DC
Operating current: <100 mA
Contact gap: 1 mm
Switch frequency: <3500 Hz
Short-circuit proof: yes
Reverse polarity protection: yes
Rating: IP 67
Connection type: 2 m PVC cable
Temperature range: -25 °C - +70 °C
Approvals: CE, c UL us, EAC

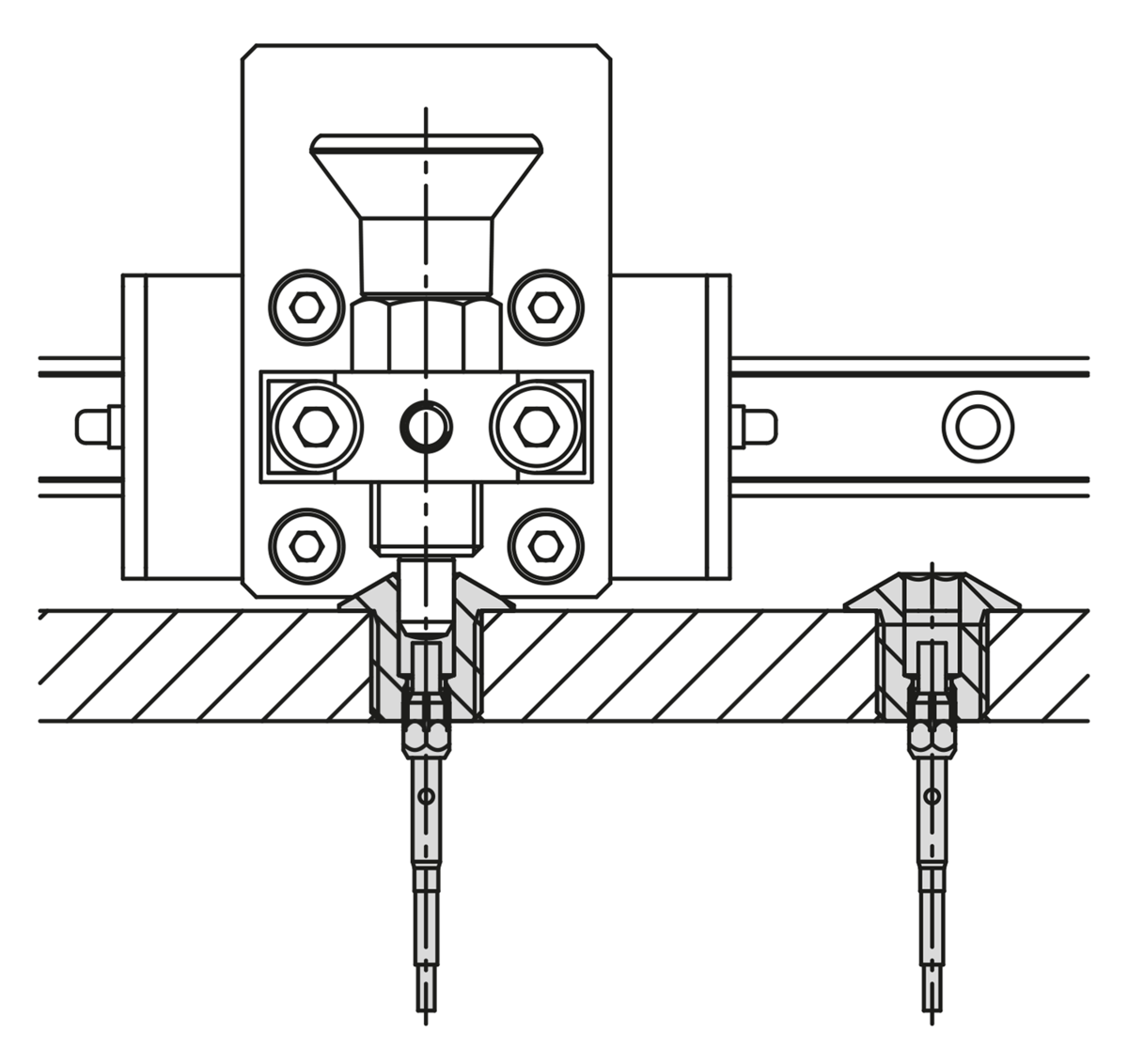

Application:Positioning bushes in conjunction with a status sensor enable actuation-dependent process control. In addition, it can be determined whether the operating or indexing element is in the desired position.
For example, by the format adjustment on packaging machines.
Assembly:The sensor is fastened into the bush using the locknut and then adjusted axially. The locknut is tightened to fixate the sensor in the final position.

The detailed procedure is described in the installation instructions.

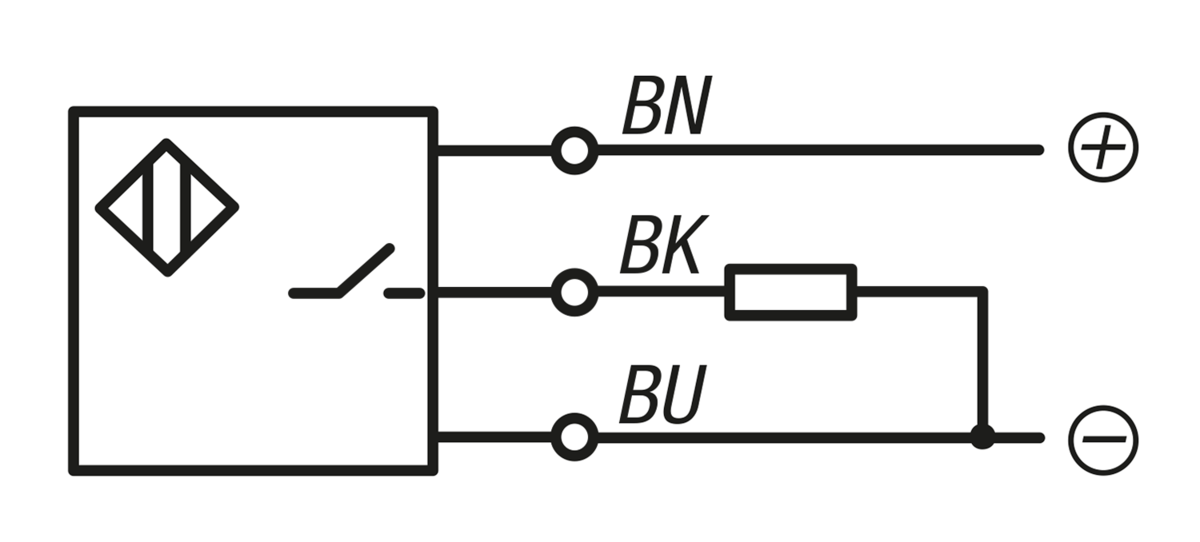

Safety:Positioning bushes with status sensor are not suitable for personnel safety functions.Drawing reference:
1) LED

BN = brown
BK = black
BU = blue
Special features:
RoHSStainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Mounting instructions 56,8 kB


Positioning bushes, steel or stainless steel with status sensor, Form C, with thread and approach taper

Item selection/filter

Order No.FormForm-TypeMain

K1839.3041211Cwith thread and approach tapersteel4M12x1,5193161210,54271145 205.96 $ (USD)
K1839.3051211Cwith thread and approach tapersteel5M12x1,5193161210,54271155 205.96 $ (USD)
K1839.3061211Cwith thread and approach tapersteel6M12x1,5193161210,54271165 205.96 $ (USD)
K1839.3081611Cwith thread and approach tapersteel8M16x1,5263201513,542715,585 208.31 $ (USD)
K1839.3101611Cwith thread and approach tapersteel10M16x1,5263201513,542715,5105 208.31 $ (USD)
K1839.13041211Cwith thread and approach taperstainless steel4M12x1,5193161210,54271145 210.69 $ (USD)
K1839.13051211Cwith thread and approach taperstainless steel5M12x1,5193161210,54271155 210.69 $ (USD)
K1839.13061211Cwith thread and approach taperstainless steel6M12x1,5193161210,54271165 210.69 $ (USD)
K1839.13081611Cwith thread and approach taperstainless steel8M16x1,5263201513,542715,585 213.05 $ (USD)
K1839.13101611Cwith thread and approach taperstainless steel10M16x1,5263201513,542715,5105 213.05 $ (USD)
