Positioning bushes, steel or stainless steel for status sensor, Form C, with thread and approach taper
K1840_C

Positioning bushes, steel or stainless steel for status sensor,...

go back

Item description/product images

DescriptionProduct description:Positioning bushes form a locating point for pin type operating and indexing elements and enable these to be securely and precisely engaged herein.

The positioning bushes for status sensor have a locknut for installing a Ø3 mm sensor into the bush.
The sensor enables electronic feedback as to whether a pin is located in the positioning bush or not.
When using several bushes, it can be determined in which one an operating or indexing element is located.
Material:Version:Positioning bush:

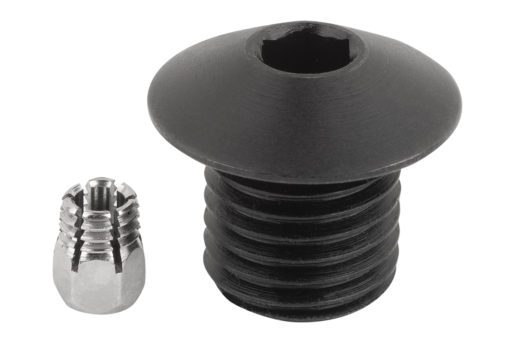

Hardened and black oxidised steel.

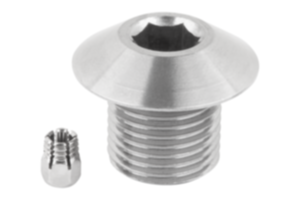

Hardened, bright stainless steel.

Locknut nickel-plated.
Note:Matched to mounting bracket K0638.
The locknut is supplied loose.
Max. tightening torque for the locknut: 1.2 Nm.
Application:Positioning bushes in conjunction with a status sensor enable actuation-dependent process control. In addition, it can be determined whether the operating or indexing element is in the desired position.
For example, by the format adjustment on packaging machines.
Assembly:The sensor is fastened into the bush using the locknut and then adjusted axially. The locknut is tightened to fixate the sensor in the final position.

The detailed procedure is described in the installation instructions.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Mounting instructions 56,8 kB

Drawings

Positioning bushes, steel or stainless steel for status sensor, Form C, with thread and approach taper

Item selection/filter

Order No.FormForm definitionMain
material
D

D1D2D3HH1H2H3TSW1SW2CADAcc.PriceOrder
K1840.304121Cwith thread and approach tapersteel4M12x1,5193161210,541145 37.89 $ (USD)
K1840.305121Cwith thread and approach tapersteel5M12x1,5193161210,541155 37.89 $ (USD)
K1840.306121Cwith thread and approach tapersteel6M12x1,5193161210,541165 37.89 $ (USD)
K1840.308161Cwith thread and approach tapersteel8M16x1,5263201513,5415,585 40.25 $ (USD)
K1840.310161Cwith thread and approach tapersteel10M16x1,5263201513,5415,5105 40.25 $ (USD)
K1840.1304121Cwith thread and approach taperstainless steel4M12x1,5193161210,541145 42.61 $ (USD)
K1840.1305121Cwith thread and approach taperstainless steel5M12x1,5193161210,541155 42.61 $ (USD)
K1840.1306121Cwith thread and approach taperstainless steel6M12x1,5193161210,541165 42.61 $ (USD)
K1840.1308161Cwith thread and approach taperstainless steel8M16x1,5263201513,5415,585 44.98 $ (USD)
K1840.1310161Cwith thread and approach taperstainless steel10M16x1,5263201513,5415,5105 44.98 $ (USD)
