Tension levers flat with locating hole

go back

Products
- Adjustable Handles
  - Adjustable Tension Levers
    - Tension levers flat
      - Tension levers flat with locating hole

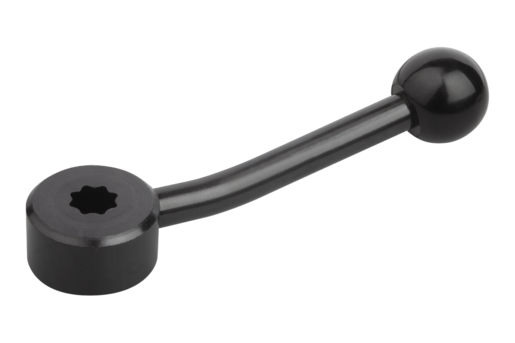

Item description/product images

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black thermoset PF 31Version:Black oxidised.Note:Flat Control Handles can be used for simple clamping applications and switching operations. Generally there must be enough space so that the handle can be turned 360°.On request:Other internal threads, reamed holes and star sockets.
Dimension “A” available in other lengths at extra charge.Special features:

Drawings

Item selection/filter

Order No.	Kind of fastening	X	A=handle length	A1	D	D1	D2	H	H1	H2	Price
K0177.106	reamed hole	6	75	15	25	8	20	14	22	8,5	22.12 $ (USD)
K0177.108	reamed hole	8	75	15	25	8	20	14	22	8,5	22.12 $ (USD)
K0177.110	reamed hole	10	75	15	25	8	20	14	22	8,5	22.12 $ (USD)
K0177.112	reamed hole	12	100	15	33	10	25	17	27	10	26.17 $ (USD)
K0177.116	reamed hole	16	100	15	33	10	25	17	27	10	26.17 $ (USD)
K0177.120	reamed hole	20	128	15	41	12	30	20	36	11,5	33.35 $ (USD)
K0177.124	reamed hole	24	128	15	41	12	30	20	36	11,5	33.35 $ (USD)
