Product groups
Knurled nuts quick-acting
K0139

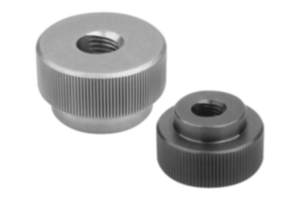

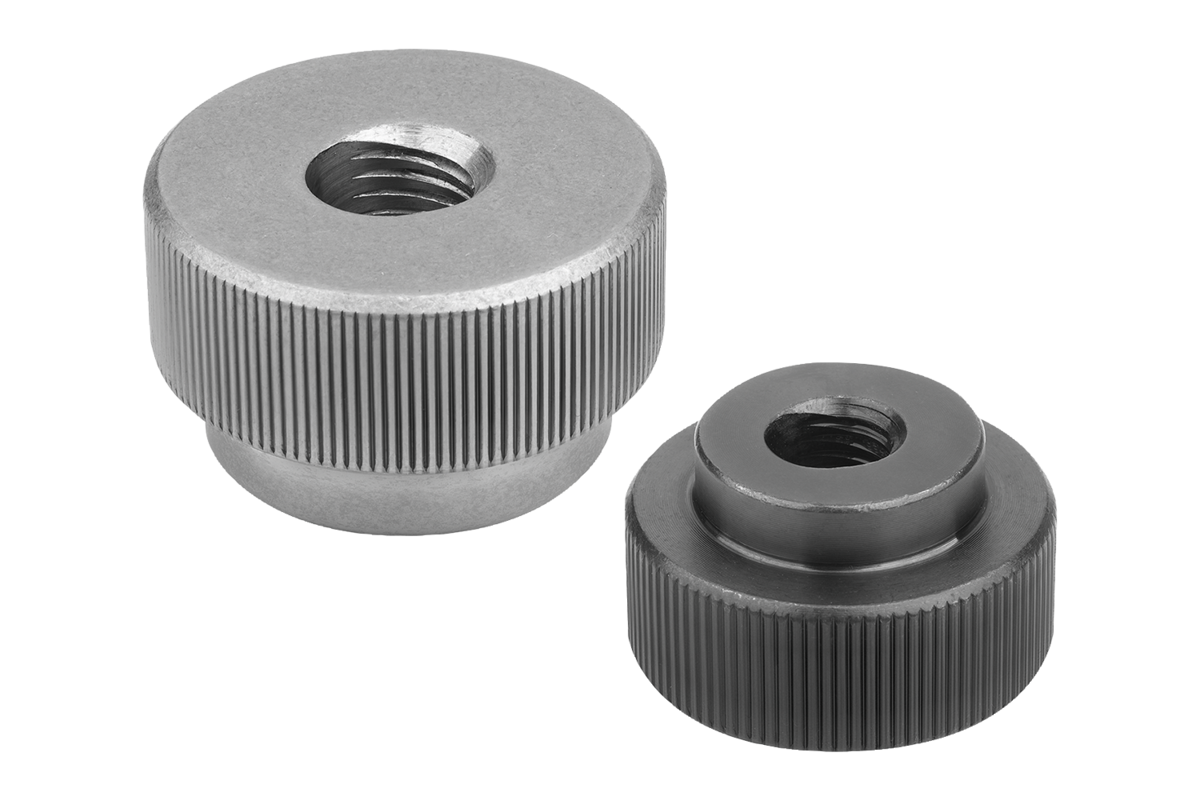

Knurled nuts quick-acting

go back

Item description/product images

DescriptionMaterial:Carbon steel.Version:Tempered and black oxidised.Note:Quick-acting knurled nuts are mainly used in applications where no high clamping pressures are required.
Tilt the nut to slide on, then straighten it to engage the threads.
Drawing reference:

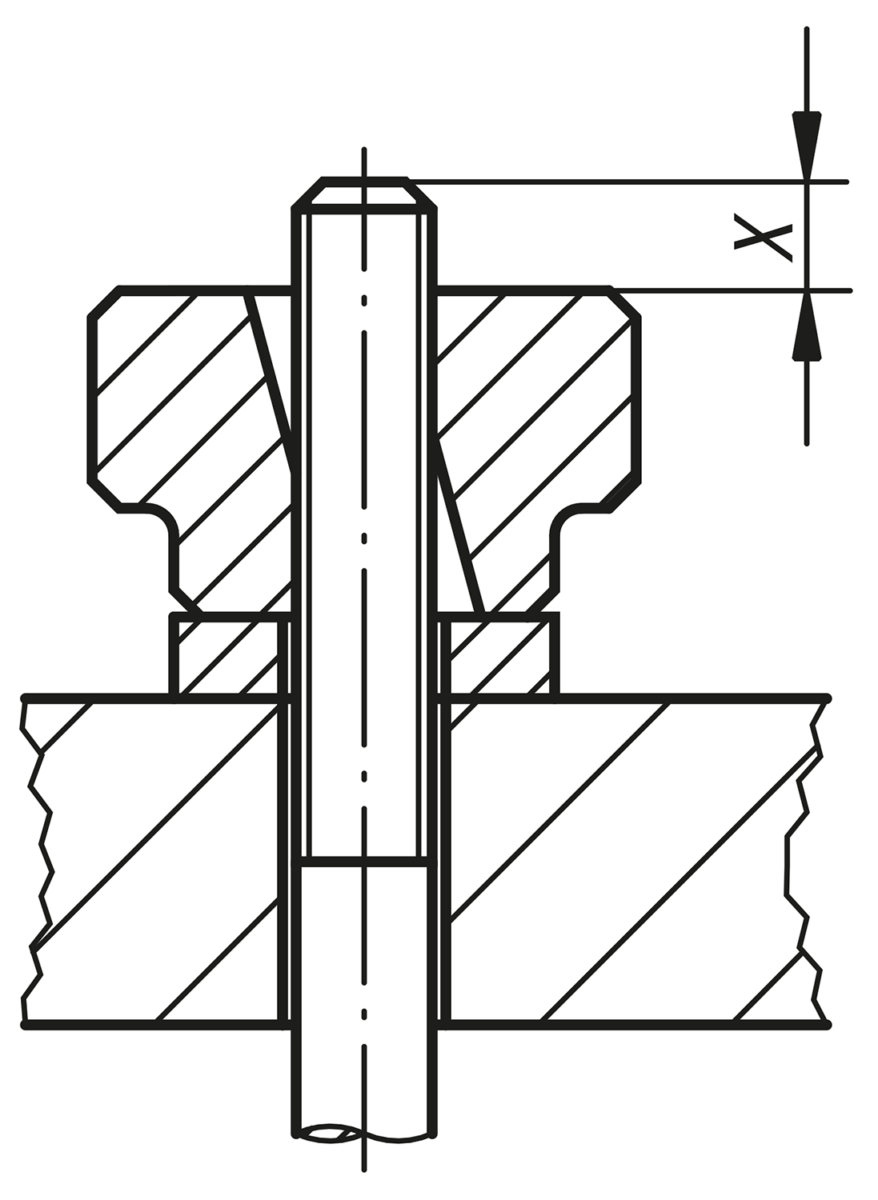

X: The stud should be several mm longer than height “H”
Special features:
RoHS

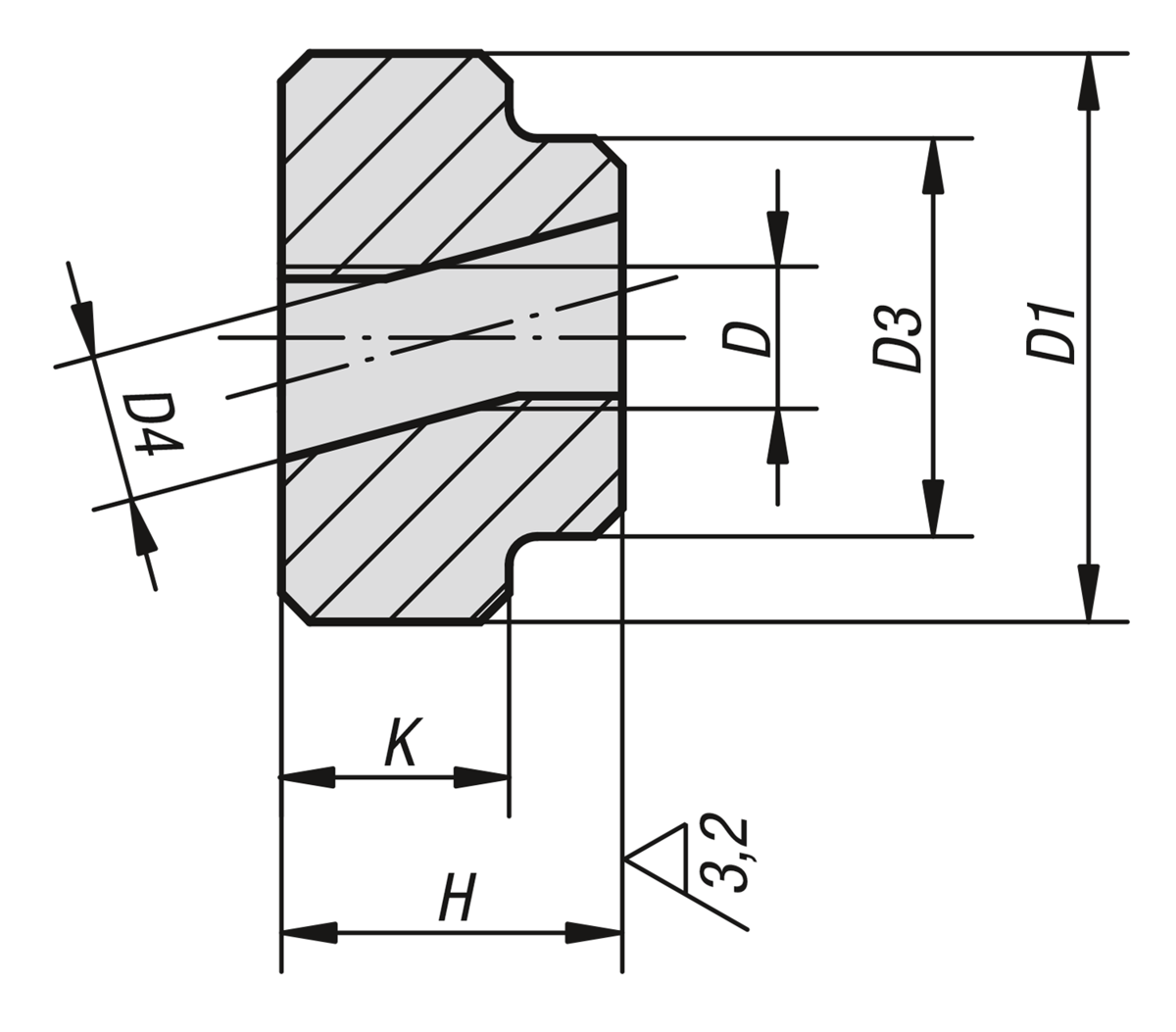

Drawings

Knurled nuts quick-acting

Item selection/filter

Order No.

DD1D3D4HKCADAcc.PriceOrder
K0139.05M520145,2128 6.85 $ (USD)
K0139.06M624166,21410 7.38 $ (USD)
K0139.08M830208,21712 9.82 $ (USD)
K0139.10M10362810,32014 11.15 $ (USD)
K0139.12M12403212,32416 13.94 $ (USD)
