Ball knobs, smooth, DIN 319 enhanced, Form L, with clamping...

go back

Products
- Knobs
  - Ball and Six-Lobe Knobs
    - Ball knobs smooth DIN 319 enhanced

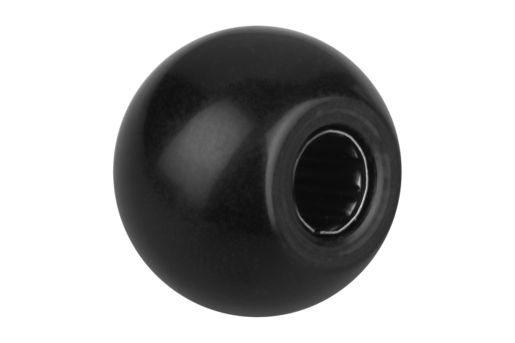

      - Ball knobs, smooth, DIN 319 enhanced, Form L, with clamping sleeve

Item description/product images

DescriptionMaterial:Black thermoset PF 31.
Bush electro zinc-plated steel.Version:High-gloss polished.Note:Assembly Form L: The Ball Knobs are mounted firmly by tapping a hammer lightly. Please only use a rubber or plastic hammer, with a weight up to 200 g!Shank tolerance:Ball knobs with press-fit sleeve can be mounted on standard shafts with tolerance h9. The supplied press-fit sleeve assures a firm and reliable fit.Special features:

Drawings

Item selection/filter

Order No.	Form	Main colour	D	D1	D6	H	T	Price
K0159.42005	L	black	5	20	12	18	13	2.89 $ (USD)
K0159.42506	L	black	6	25	15	23	16	3.18 $ (USD)
K0159.42508	L	black	8	25	15	23	15	2.70 $ (USD)
K0159.43208	L	black	8	32	18	29	15	3.30 $ (USD)
K0159.43210	L	black	10	32	18	29	20	3.30 $ (USD)
K0159.44010	L	black	10	40	20	37,5	20	4.51 $ (USD)
K0159.44012	L	black	12	40	20	37,5	23	4.77 $ (USD)
K0159.45012	L	black	12	50	28	48	20	7.04 $ (USD)
