Pull handles oval detachable
K0204

Pull handles oval detachable

go back

Item description/product images

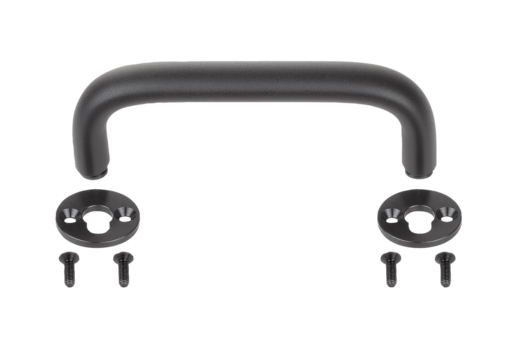

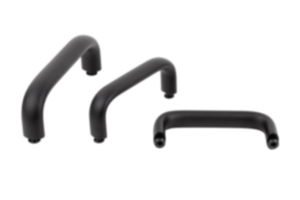

DescriptionMaterial:Pull handle oval aluminium EN AW-6060.
Locating pin free-cutting steel 1.0718.
Blanking disc free-cutting steel 1.0718.
Version:Pull handle black powder-coated.
Locating pin and blanking disc black oxidised.
Note:The pull handles are mounted on an object by a push-fit system.
Dismantling is carried out when no load is applied.
Application:Insert the pull handle into the opening until the grip makes contact with the blanking disc.
Lock by holding the handle parallel and pulling up.
The grip can only be subject to vertical loads.
To release, follow the previous instructions in reverse.
Assembly:An object must be prepared before the blanking disc can be mounted.
See mounting instructions drawing.
Drawing reference:
1) Position disengaged
2) Position engaged

S = insert
E = engage
A = lift
2) Position engaged
S = insert
E = engage
A = lift
Special features:
RoHS

Drawings

Pull handles oval detachable
Pull handles oval detachable
Pull handles oval detachable

Item selection/filter

Order No.AA1A2BB1B2DD1HH1LLoad
capacity
N
CADAcc.PriceOrder
K0204.10012001100247351321M5x16125881351000 45.88 $ (USD)
K0204.11212001112247351321M5x16125881471000 46.08 $ (USD)
K0204.11214001112268401525M5x16146381521000 55.57 $ (USD)
K0204.12012001120247351321M5x16125881551000 47.03 $ (USD)
K0204.12014001120268401725M5x16146381601000 55.91 $ (USD)
K0204.12812001128247351321M5x16125881631000 48.10 $ (USD)
K0204.12814001128268401725M5x16146381681000 56.20 $ (USD)
K0204.16012001160247351321M5x16125881951000 49.49 $ (USD)
K0204.16014001160268401725M5x16146382001000 56.44 $ (USD)
K0204.18014001180268401725M5x16146382201000 57.68 $ (USD)
K0204.19214001192268401725M5x16146382321000 58.57 $ (USD)
K0204.35014001350268401725M5x16146383901000 64.53 $ (USD)
