Indexing plungers with lock, Form A
K1213_A

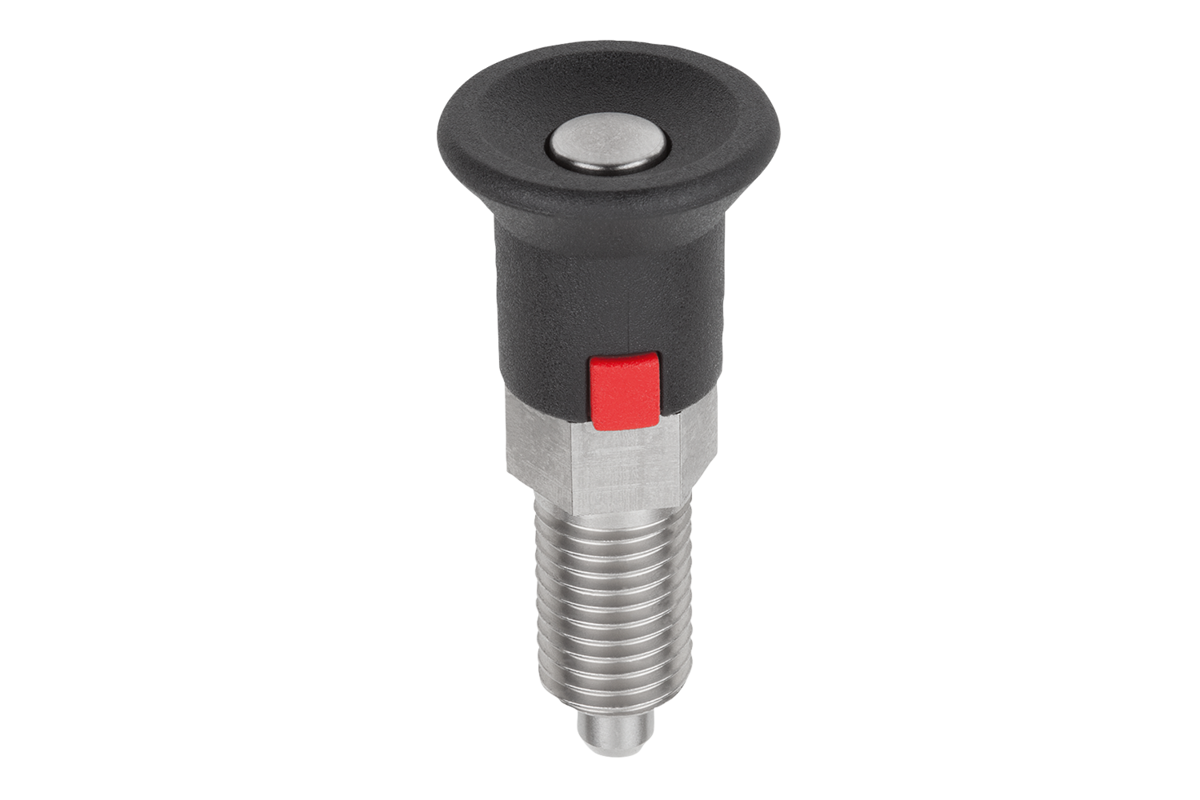

Indexing plungers with lock, Form A

go back

Item description/product images

DescriptionMaterial:Version:Steel version:
threaded sleeve, black oxidised.
Indexing pin hardened, ground and black oxidised.

Stainless steel version:
threaded sleeve, bright.
Indexing pin not hardened, ground and bright.
Note:Indexing plungers are used where any change in locking position due to lateral forces should be prevented.
The locking mechanism is activated by pressing the push button.
The red release button enables the indexed position to be changed.
Special features:
RoHS

Drawings

Indexing plungers with lock, Form A

Item selection/filter

Order No.FormMain
material
Version

DD1D2LL1L2L3HSW1Fx30°return
force
N
CADAcc.PriceOrder
K1213.11051Asteelwith lock5M10x12550,5177155131,38-12on request
K1213.12061Asteelwith lock6M12x1,52555,5208176141,84-12on request
K1213.13081Asteelwith lock8M16x1,533762610238192,310-20on request
K1213.14101Asteelwith lock10M20x1,5338228122510222,83-23on request
K1213.111051Astainless steelwith lock5M10x12550,5177155131,38-12on request
K1213.112061Astainless steelwith lock6M12x1,52555,5208176141,84-12on request
K1213.113081Astainless steelwith lock8M16x1,533762610238192,310-20on request
K1213.114101Astainless steelwith lock10M20x1,5338228122510222,83-23on request
