Indexing plungers with lock, Form B

go back

Products
- Indexing Plungers
  - Indexing Plungers
    - Indexing plungers with lock
      - Indexing plungers with lock, Form B

Item description/product images

DescriptionMaterial:Version:Steel version:
threaded sleeve, black oxidised.
Indexing pin hardened, ground and black oxidised.

Stainless steel version:
threaded sleeve, bright.
Indexing pin not hardened, ground and bright.Note:Indexing plungers are used where any change in locking position due to lateral forces should be prevented.

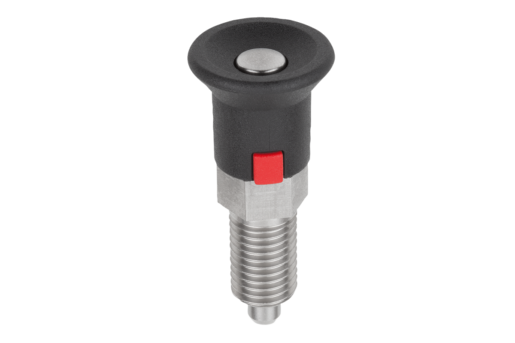

The locking mechanism is activated by pressing the push button.
The red release button enables the indexed position to be changed.

Drawings

Item selection/filter

Order No.	Form	Main material	Surface finish body	D	D1	D2	L	L1	L2	L3	Travel S	SW1	SW2	Fx30°	return force N	Price
K1213.23081	B	steel	hardened	8	M16x1,5	33	76	26	10	23	8	19	24	2,3	10-20	28.81 $ (USD)
K1213.21051	B	steel	hardened	5	M10x1	25	50,5	17	7	15	5	13	17	1,3	8-12	27.36 $ (USD)
K1213.122061	B	stainless steel	not hardened	6	M12x1,5	25	55,5	20	8	17	6	14	19	1,8	4-12	36.20 $ (USD)
K1213.124101	B	stainless steel	not hardened	10	M20x1,5	33	82	28	12	25	10	22	30	2,8	3-23	41.25 $ (USD)
K1213.121051	B	stainless steel	not hardened	5	M10x1	25	50,5	17	7	15	5	13	17	1,3	8-12	36.20 $ (USD)
K1213.24101	B	steel	hardened	10	M20x1,5	33	82	28	12	25	10	22	30	2,8	3-23	29.85 $ (USD)
K1213.22061	B	steel	hardened	6	M12x1,5	25	55,5	20	8	17	6	14	19	1,8	4-12	27.36 $ (USD)
K1213.123081	B	stainless steel	not hardened	8	M16x1,5	33	76	26	10	23	8	19	24	2,3	10-20	39.01 $ (USD)
