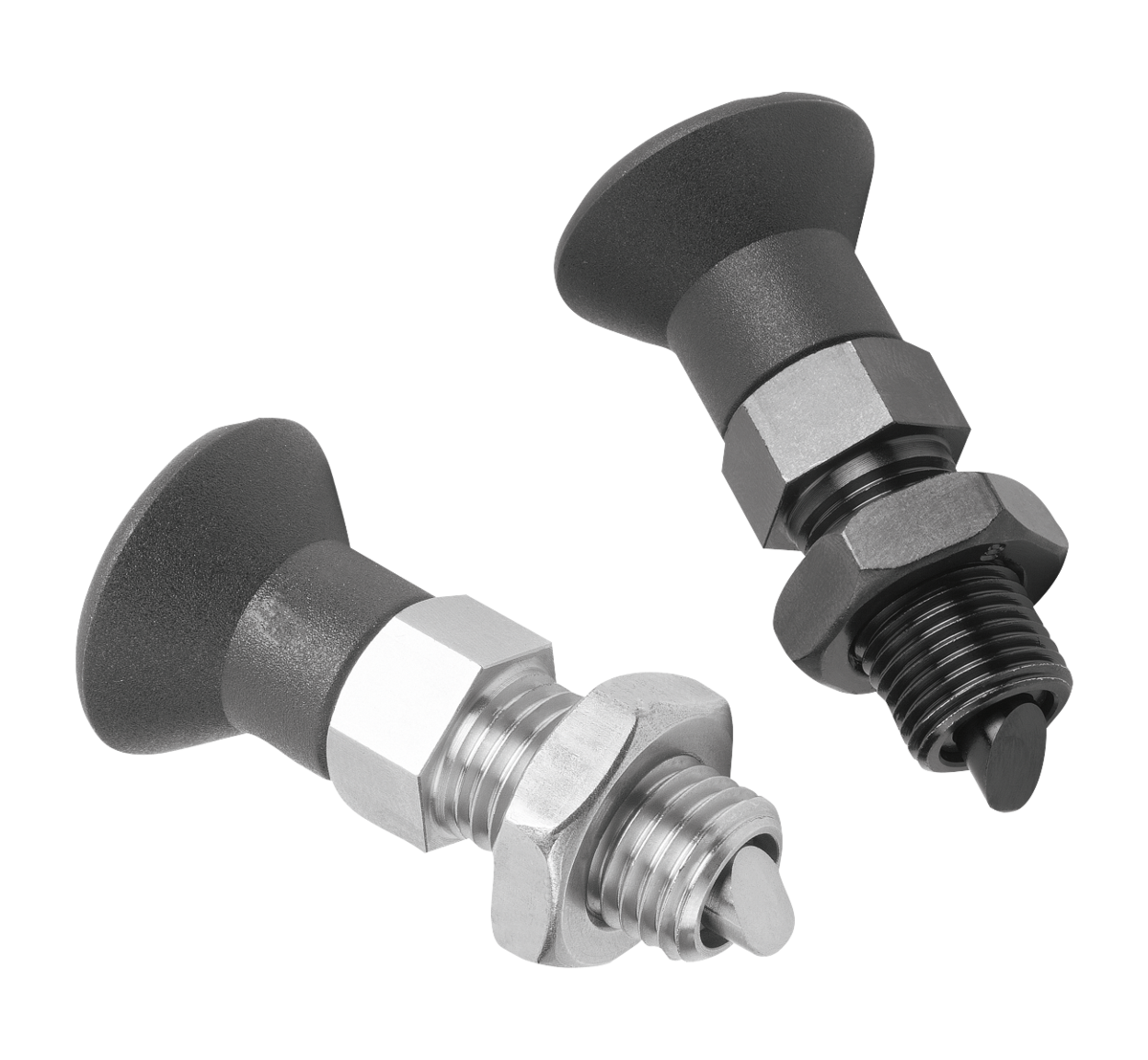

Indexing plungers with rotation lock and lead-in chamfer, Form B
K1300_B

Indexing plungers with rotation lock and lead-in chamfer, Form B

go back

Item description/product images

DescriptionMaterial:Version:Steel version:
indexing pin hardened, ground and black oxidised.
Stainless steel version:
indexing pin hardened, ground and bright.
Note:Indexing plungers are used where any change in locking position due to lateral forces should be prevented. The rotation lock ensures that the position of the pin in relation to the sleeve cannot be changed. The point angle enables the pin to retract automatically through a lateral force from one side. Loosening the screw as far as the marking on the plunger enables the point angle to be rotated in 60° increments.Assembly:The screw can be loosened using a hex. key.On request:Special versions.Accessory:Spacer rings K0665Special features:
RoHS

Drawings

Indexing plungers with rotation lock and lead-in chamfer, Form B

Item selection/filter

Order No.FormMain
material
DD1D2LL1L2L3HSW1SW2Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K1300.22061Bsteel6M12x1,52549,72081741419814on request
K1300.22060Bsteel6M122549,72081741419814on request
K1300.23081Bsteel8M16x1,53366261023619242035on request
K1300.23080Bsteel8M163366261023619242035on request
K1300.022061Bstainless steel6M12x1,52549,72081741419814on request
K1300.022060Bstainless steel6M122549,72081741419814on request
K1300.023081Bstainless steel8M16x1,53366261023619242035on request
K1300.023080Bstainless steel8M163366261023619242035on request
