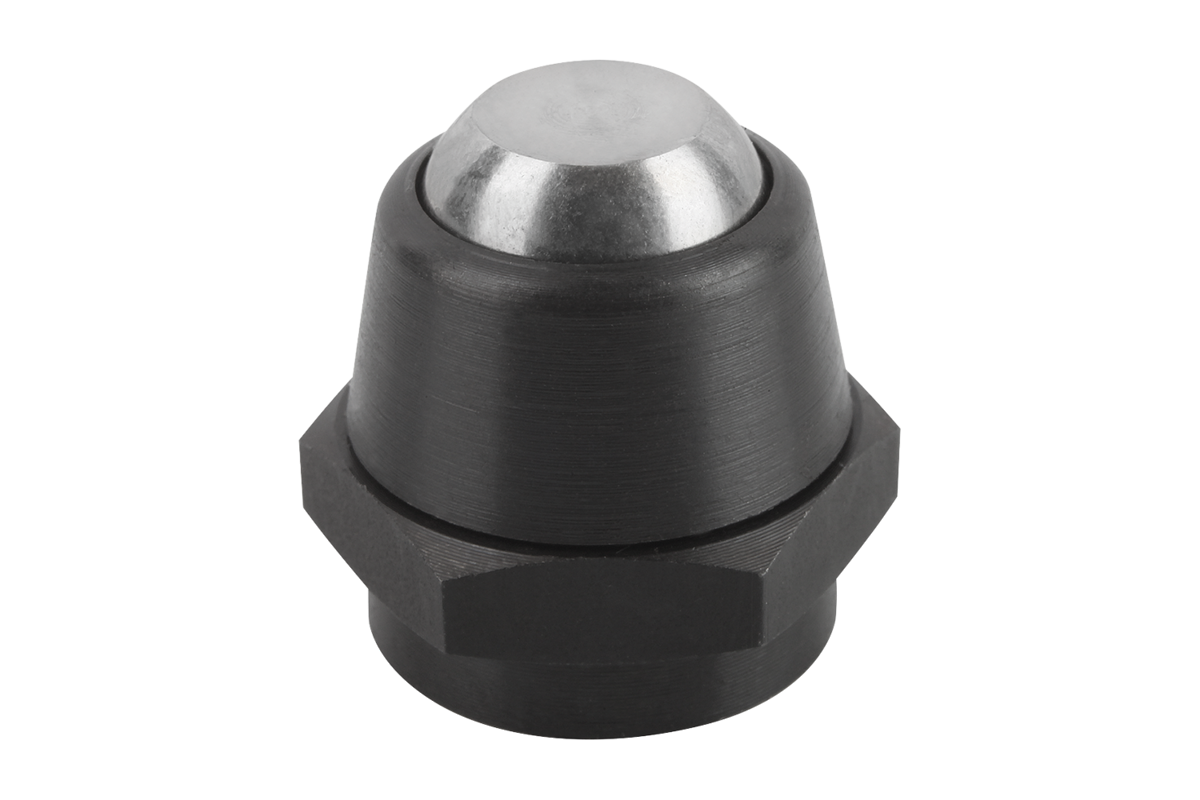

Self-aligning pads, swivel angle 14° and 20°, Form C, flattened ball, smooth face
K0283_C

Self-aligning pads, swivel angle 14° and 20°, Form C, flattened...

go back

Item description/product images

DescriptionMaterial:Body in steel, ball in rust and acid resistant steel.Version:Body black oxidised.
Ball bright.
Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces. They also serve as stops, supports and thrust pads in fixture and toolmaking.
Grub screws or threaded studs can be screwed and glued into thread D2 making a self-aligning pad with external thread.

Ball secured against rotation.
Advantages:- Self-aligning pads can be swiveled.
- High load forces can be absorbed.
- The built-in o-ring keeps dirt and foreign particles out, which in turn guarantees reliable operation.

Drawings

Self-aligning pads, swivel angle 14° and 20°, Form C, flattened ball, smooth face

Item selection/filter

Order No.FormαD1D2D3HH2TESWBall-ØLoad rating
max. kN
(static load only)
CADAcc.PriceOrder
K0283.1061C14°12M6717,512,5619,6171014 97.57 $ (USD)
K0283.106C14°16M6717,5-619,6171014 97.74 $ (USD)
K0283.108C20°22M81126-927,7241634 97.74 $ (USD)
K0283.1101C20°18M10112620927,7241634 129.28 $ (USD)
K0283.110C20°22M101126-927,7241634 129.39 $ (USD)
K0283.112C20°22M121126-927,7241634 129.39 $ (USD)
K0283.1161C20°26M161840301541,6362590 178.45 $ (USD)
K0283.116C20°34M161840-1541,6362590 177.92 $ (USD)
K0283.120C20°34M201840-1541,6362590 177.92 $ (USD)
