Swivel feet plates, Form A

Swivel feet plates, Form A

go back

Item description/product images

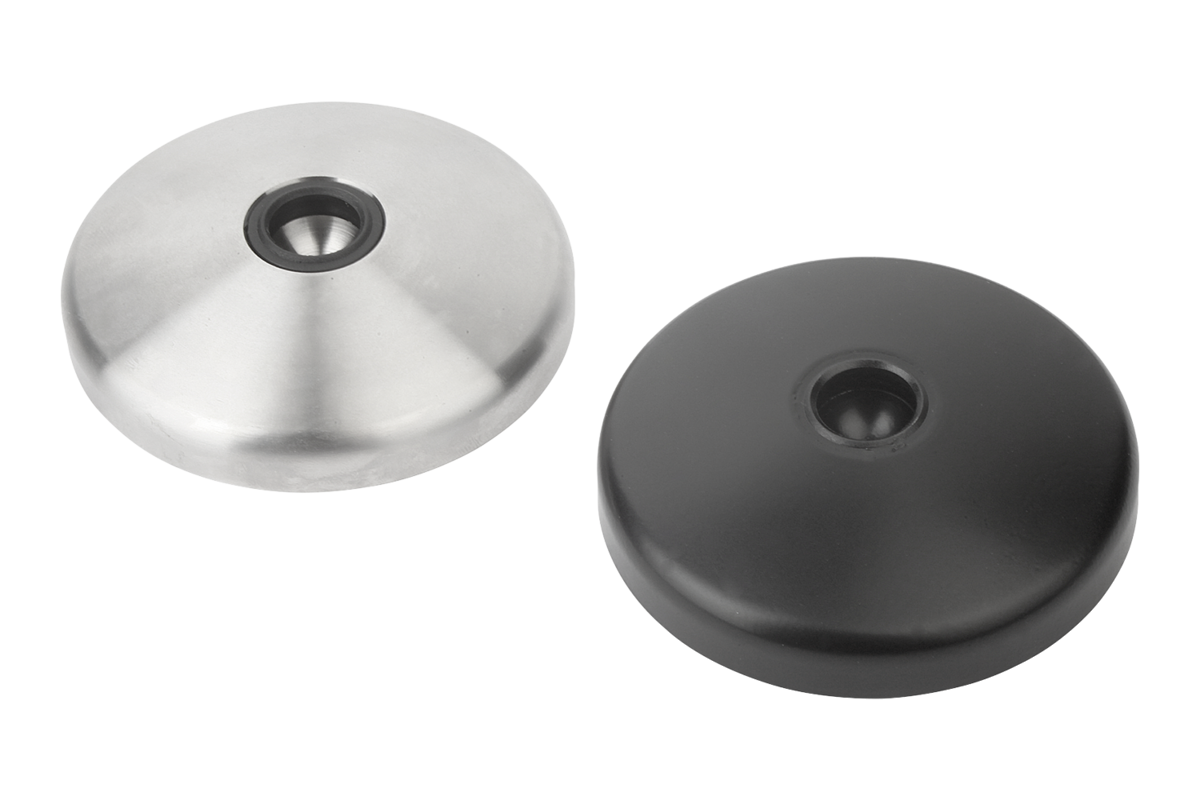

DescriptionMaterial:Version:Die-cast zinc plate, black powder-coated.
Stainless steel plate, bright.
Note for ordering:

If the swivel foot plate and the threaded spindle or the ball joint are to be supplied assembled, please add the suffix “assembled” to the order number for the plate and the spindle or the ball joint.
(e.g. K0416.10301 and K0421.060151 assembled).

Note:Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint.
For matching threaded spindles see K0421.
For matching ball joints see K0422.
Special features:


Swivel feet plates, Form A

Item selection/filter

Order No.FormMain

AHLoad rating
max. kN
K0416.10301Azinc30-1820 on request
K0416.10401Azinc40-1830 on request
K0416.10451Azinc45-1830 on request
K0416.10501Azinc50-1830 on request
K0416.10601Azinc60-1830 on request
K0416.10801Azinc80-1830 on request
K0416.11001Azinc100-1835 on request
K0416.11201Azinc120-1835 on request
K0416.10302Astainless steel30-1820 on request
K0416.10402Astainless steel40-1830 on request
K0416.10452Astainless steel45-1830 on request
K0416.10502Astainless steel50-1835 on request
K0416.10602Astainless steel60-1835 on request
K0416.10802Astainless steel80-1835 on request
K0416.11002Astainless steel100-1840 on request
K0416.11202Astainless steel120-1840 on request
