Toggle clamps push-pull without mounting bracket
K0086

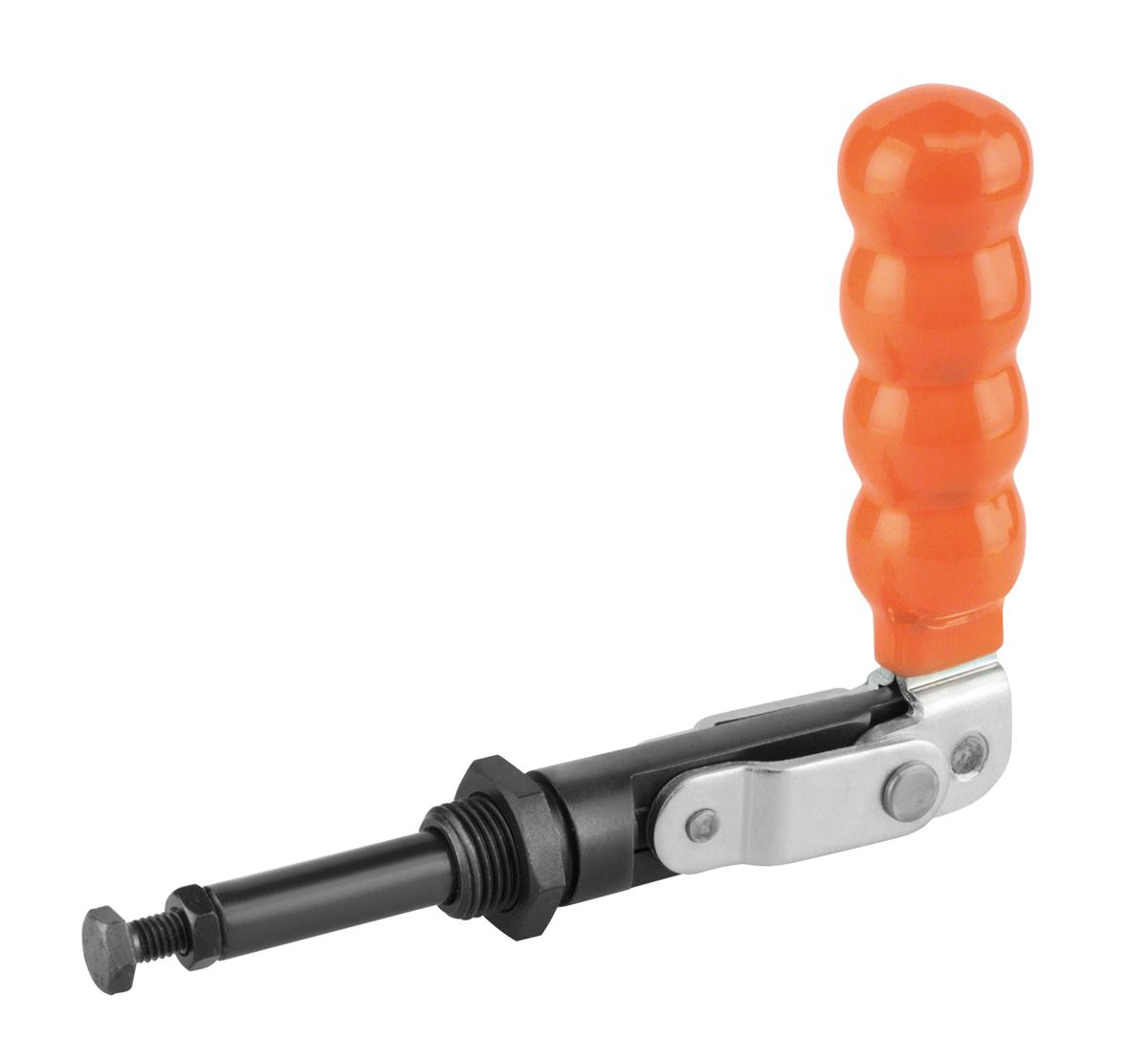

Toggle clamps push-pull without mounting bracket

go back

Item description/product images

DescriptionMaterial:Steel.Version:Galvanized and chromated,
connecting rod, guide body and contact pressure screw phosphated,
plastic handle oil-resistant
Note:As the push-pull toggle clamps lock in open and closed handle positions, they can be used to clamp when pushing or pulling.
The fastening nut supplied allows the clamps to be mounted in any desired position.
Accessory:K0100
K0101
K0102
K0103
K0106

Drawings

Toggle clamps push-pull without mounting bracket

Overview of items (compressed)

Item selection/filter
Order No.Opening
angle of
handle
Hand
force
FH N
Retaining
force
F2 N
Clamping force
F1
N
Matching
plastic grip
CADAcc.PriceOrder
K0086.0350185°11035001500K0100.28 on request
K0086.0550185°14055001600K0100.30 on request
K0086.0750185°16075001600K0100.33 on request
Order No.

B3C1D1

D2HLL1L2L3L4MM1RC
(travel)
CADAcc.PriceOrder
K0086.035020,59,51019106,512349161833M6x25M16x1,59725 on request
K0086.055024,512132413015960203040M8x40M20x1,511838 on request
K0086.07503114,21628,514923593234070M10x50M24x1,513567 on request
