  - Adjustable Handles, Modern Design Style

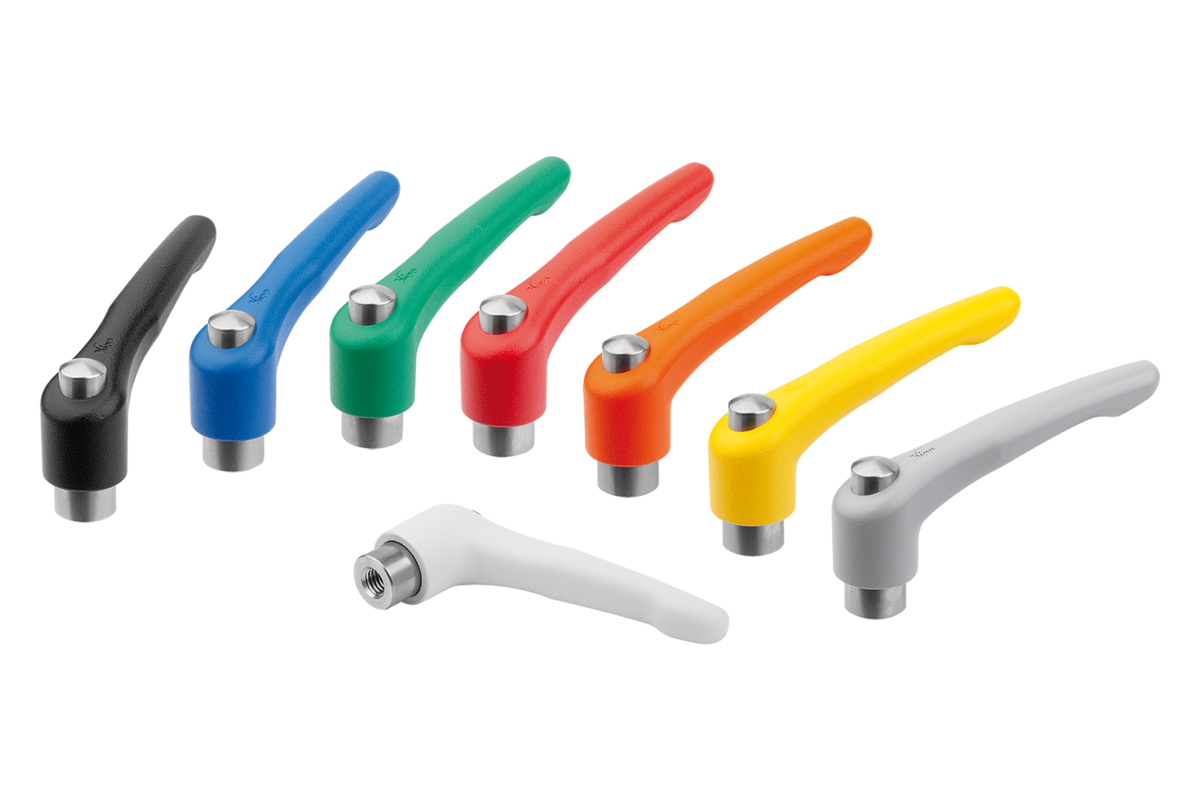

    - Adjustable Handles Modern Design Style, Zinc, inserts and internal components stainless steel, internal thread
      - Adjustable Handles, Modern Design Style, Zinc, inserts and internal components stainless steel, internal thread, inch

Item description/product images

DescriptionMaterial:Version:Handle powder-coated.
Steel parts bright.Note:Standard colours are:
black satin finish, orange RAL 2004.On request:Other internal threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge.Special features:

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Size	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth
K0123.0ADΔ	0	6-32	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16
K0123.0AEΔ	0	8-32	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16
K0123.0A0Δ	0	10-24	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16
K0123.0A1Δ	0	10-32	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16
K0123.0A2Δ	0	1/4-20	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16
K0123.1A0Δ	1	10-24	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16
K0123.1A1Δ	1	10-32	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16
K0123.1A2Δ	1	1/4-20	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16
K0123.2A2Δ	2	1/4-20	12	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20
K0123.2A3Δ	2	5/16-18	12	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20
K0123.3A3Δ	3	5/16-18	14	16	21	22	37	10	24	54,5	58,5	80	91	11	22
K0123.3A4Δ	3	3/8-16	14	16	21	22	37	10	24	54,5	58,5	80	91	11	22
K0123.4A4Δ	4	3/8-16	17	19	27	27,5	43	10	27	63	67,5	95	109	13	24
K0123.4A5Δ	4	1/2-13	17	19	27	27,5	43	10	27	63	67,5	95	109	13	24
K0123.5A5Δ	5	1/2-13	23	23	31	32	49	12	31,5	73	77,5	110	126	15	26
K0123.5A6Δ	5	5/8-11	23	23	31	32	49	12	31,5	73	77,5	110	126	15	26
