Bushing for ball lock pins with thread lock

Bushing for ball lock pins with thread lock

go back

Item description/product images

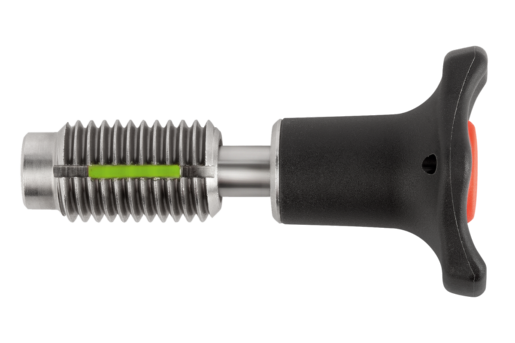

DescriptionMaterial:Version:Steel parts bright.Note:These bushes are ideal for easy and quick positioning of ball lock pins and locking pins.Advantages:- The locating bush is centred by the centring collar.
- Easy and reliable screwing in.
- Can be screwed into various materials.
- Usable on both sides.
- The thread lock enables the installation depth to be matched exactly to the existing components, so no hammering is necessary.

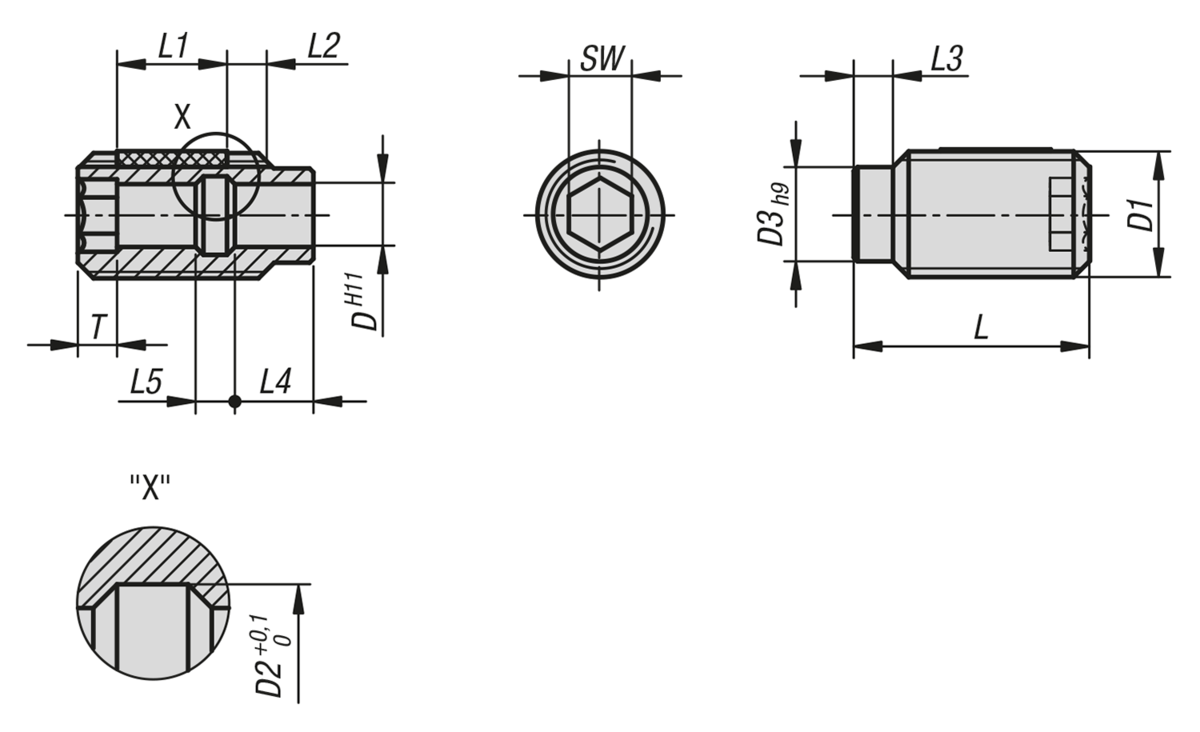

Drawing reference:
L2 = approx. 2x thread pitch
Special features:
Stainless steelRoHS


Bushing for ball lock pins with thread lock

Item selection/filter

Order No.

K0724.1051215M1269251047354 19.66 $ (USD)
K0724.1061616M167,5123014510565 22.24 $ (USD)
K0724.1081618M1610123014510585 22.24 $ (USD)
K0724.11024110M2413183514687106 40.70 $ (USD)
K0724.11224112M2415183514687126 40.70 $ (USD)
K0724.11630116M30202440148119167 45.03 $ (USD)
