Actima Clamping Device with transverse axis in the hole
K0020_QB

Actima Clamping Device with transverse axis in the hole

go back

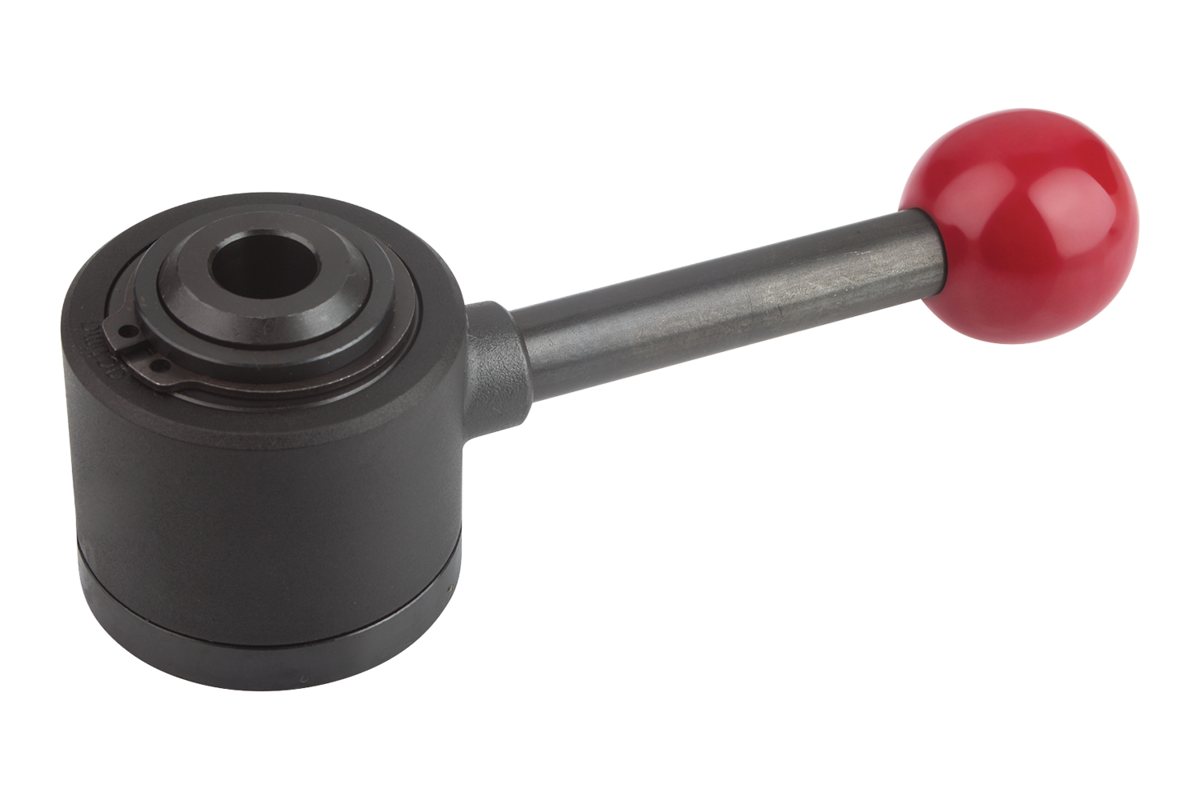

Item description/product images

DescriptionMaterial, version:Steel black oxidised.
Housing black thermoplastic.
Ball knob red thermoset PF 31.
Note:The travel path is 10 mm. Self-locking occurs in any position within only 2 mm of clamp travel, so workpieces with tolerances of up to 1.5 mm can be safely clamped. The Actima clamping device can be mounted in any horizontal or vertical position.
Standard parts enable further applications and are available as optional accessories.
All parts of the cam system subject to heavy loads are case-hardened (thrust sleeve and accessories only if specified).
The maximum permissible clamping force is approximately 4905 N.
Special features:
RoHS

Drawings

Actima Clamping Device with transverse axis in the hole

Item selection/filter

Order No.

Version 2CADAcc.PriceOrder
K0020.10right-hand / thrust 340.08 $ (USD)
K0020.15right-hand / pull 340.08 $ (USD)
K0020.20left-hand / thrust 340.08 $ (USD)
K0020.25left-hand / pull 340.08 $ (USD)
