Indexing Plungers
without collar with extended locking pin, Style H, inch
K0633_H Inch

Indexing Plungers without collar with extended locking pin,...

go back

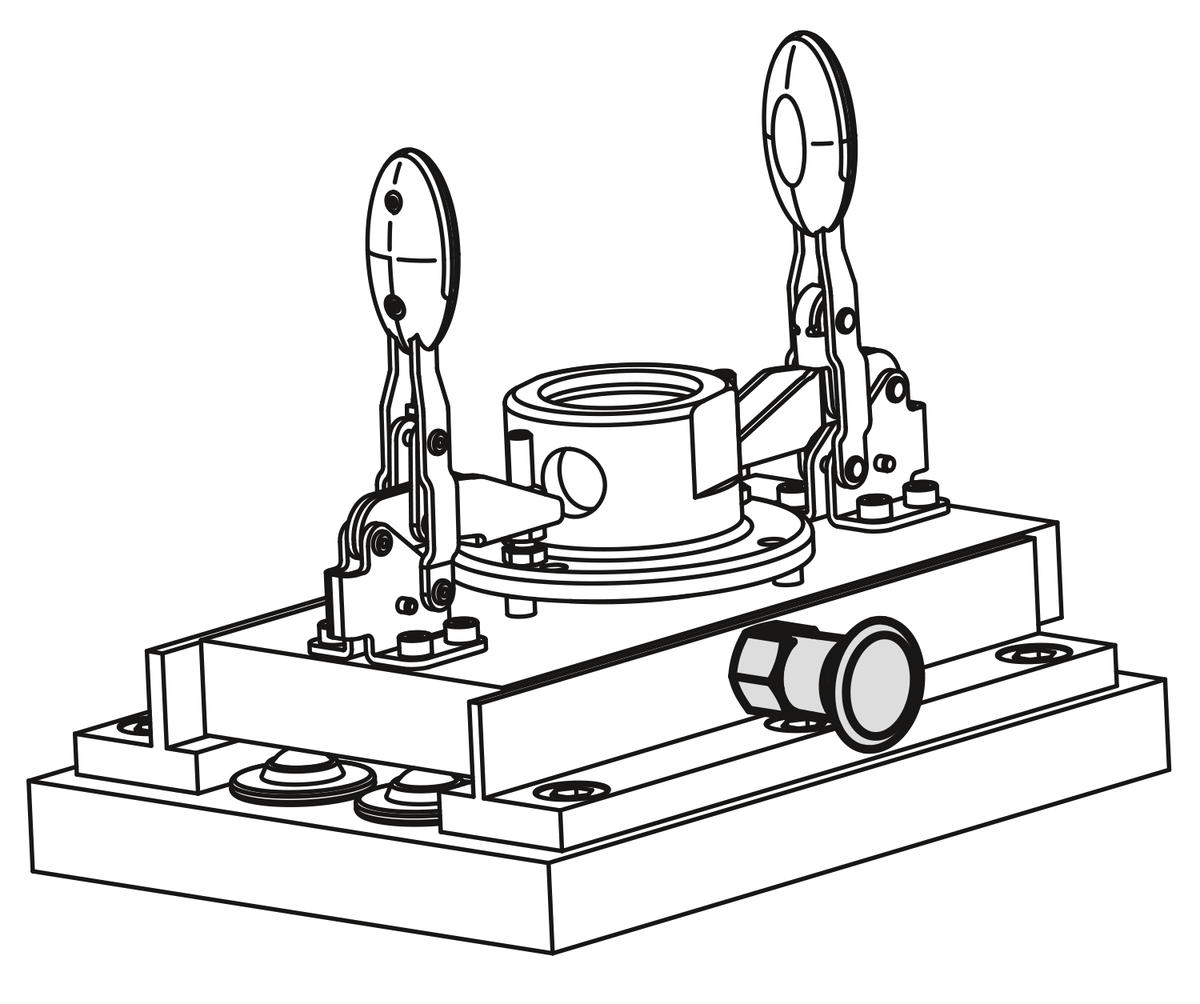

Item description/product images

Indexing Plungers
without collar with extended locking pin, Style H, inch
  • Indexing Plungers
without collar with extended locking pin, Style H, inch
  • Indexing Plungers
without collar with extended locking pin, Style H, inch
DescriptionMaterial:Steel version:
Indexing pin hardened:
grade 5.8.

Stainless steel version,
Indexing pin hardened
Threaded sleeve 1.4305
Indexing pin 1.4034

Indexing pin not hardened
Threaded sleeve 1.4305
Indexing pin 1.4305

Mushroom knob black grey thermoplastic
Version:Steel version:
Indexing pin hardened, ground, black oxidised.

Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
A washer is available to aid by screwing in the indexing plungers. The washer slides beneath the mushroom knob so that the carrier pins engage in the slot.
On request:Special versions.

Drawings

Indexing Plungers
without collar with extended locking pin, Style H, inch

Overview of items (compressed)

Item selection/filter
Order No.
Steel
hardened
Order No.
Stainless steel
hardened
Order No.
Stainless steel
not hardened
FormDD1D2LL1L2HF x 30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Order No.
screw-in washer
Filter
K0633.22903AJK0633.202903AJK0633.212903AJH31/4-281433171150,84,512K0344.99
K0633.22004AKK0633.202004AKK0633.212004AKH45/16-241840,52113,561615K0344.90
K0633.22105ALK0633.202105ALK0633.212105ALH53/8-242146,52414,581,3516K0344.91
K0633.22206A5K0633.202206A5K0633.212206A5H61/2-132554,72817,791,8618K0344.92
K0633.22308A6K0633.202308A6K0633.212308A6H85/8-1133723624122,31545K0344.93
K0633.22410A7K0633.202410A7K0633.212410A7H103/4-1033794024152,81543K0344.94
K0633.22412AOK0633.202412AOK0633.212412AOH123/4-1633844224182,81551K0344.94
K0633.22516A8K0633.202516A8K0633.212516A8H161-8401045030243,22060K0344.95
