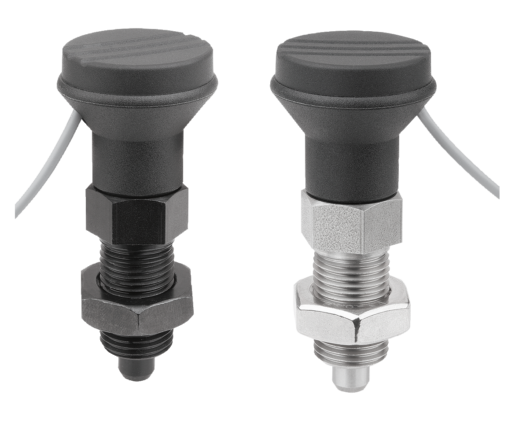

Indexing plungers steel or stainless steel with status sensor, hardwired, Form B
K1744_B

Indexing plungers steel or stainless steel with status sensor,...

go back

Item description/product images

DescriptionProduct description:Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces.
Some examples of this are for length, height and position locking in machines, equipment, furniture and special vehicle construction.

With indexing plungers with status sensor, the actuation status can be detected and evaluated electronically.The connection, e.g. to a machine control system, is hard wired via the connection cable of the integrated sensor.
Material:Version:Steel version:
Threaded sleeve, black oxidised.
Indexing pin hardened, ground and black oxidised.

Stainless steel version:
Threaded sleeve, bright.
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:The status sensor switches when it engages after S - 1 mm travel.Technical data:Inductive sensor:
Output circuit: PNP NO
Operating voltage: 6 - 30 V DC
Operating current: <100 mA
Contact gap: 1 mm
Switch frequency: <4000 Hz
Short-circuit proof: yes
Reverse polarity protection: yes
Rating: IP 67
Connection type: 2 m PVC cable
Temperature range: -10 °C - +70 °C
Approvals: CE, c UL us, EAC
Application:Indexing plungers with status sensor allow actuation-dependent process control. It is also possible to ensure that the indexing pin is in the desired actuation status.Safety:Indexing plungers with status sensor are not suitable for personnel safety functions.Drawing reference:
Form A: non-lockout type, without locknut
Form B: non-lockout type, with locknut
Form C: lockout type, without locknut
Form D: lockout type, with locknut

P = cable length

BN = brown
BK = black
BU = blue
Special features:
RoHS

Drawings

Indexing plungers steel or stainless steel with status sensor, hardwired, Form B

Item selection/filter

Order No.FormMain
material
locating pinD

D1D2D3LL1L2L3Travel
S
SW1SW2Fx30°PSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K1744.21051Bsteelhardened5M10x1252,45117715513171,32000512 165.89 $ (USD)
K1744.22061Bsteelhardened6M12x1,5252,45620817614191,82000614 168.32 $ (USD)
K1744.23081Bsteelhardened8M16x1,5332,474261023819242,320001535 170.78 $ (USD)
K1744.24101Bsteelhardened10M20x1,5332,4802812251022302,820001534 178.16 $ (USD)
K1744.24121Bsteelhardened12M20x1,5332,4842814251222302,820001539 183.06 $ (USD)
K1744.021051Bstainless steelhardened5M10x1252,45117715513171,32000512 173.25 $ (USD)
K1744.022061Bstainless steelhardened6M12x1,5252,45620817614191,82000614 175.70 $ (USD)
K1744.023081Bstainless steelhardened8M16x1,5332,474261023819242,320001535 183.06 $ (USD)
K1744.024101Bstainless steelhardened10M20x1,5332,4802812251022302,820001534 187.97 $ (USD)
K1744.024121Bstainless steelhardened12M20x1,5332,4842814251222302,820001539 192.89 $ (USD)
K1744.121051Bstainless steelnot hardened5M10x1252,45117715513171,32000512 173.25 $ (USD)
K1744.122061Bstainless steelnot hardened6M12x1,5252,45620817614191,82000614 175.70 $ (USD)
K1744.123081Bstainless steelnot hardened8M16x1,5332,474261023819242,320001535 183.06 $ (USD)
K1744.124101Bstainless steelnot hardened10M20x1,5332,4802812251022302,820001534 187.97 $ (USD)
K1744.124121Bstainless steelnot hardened12M20x1,5332,4842814251222302,820001539 192.89 $ (USD)
