Indexing plungers steel or stainless steel with status sensor, hardwired, Form C
K1744_C

Indexing plungers steel or stainless steel with status sensor,...

go back

Item description/product images

DescriptionProduct description:Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces.
Some examples of this are for length, height and position locking in machines, equipment, furniture and special vehicle construction.

With indexing plungers with status sensor, the actuation status can be detected and evaluated electronically.The connection, e.g. to a machine control system, is hard wired via the connection cable of the integrated sensor.
Material:Version:Steel version:
Threaded sleeve, black oxidised.
Indexing pin hardened, ground and black oxidised.

Stainless steel version:
Threaded sleeve, bright.
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:The status sensor switches when it engages after S - 1 mm travel.Technical data:Inductive sensor:
Output circuit: PNP NO
Operating voltage: 6 - 30 V DC
Operating current: <100 mA
Contact gap: 1 mm
Switch frequency: <4000 Hz
Short-circuit proof: yes
Reverse polarity protection: yes
Rating: IP 67
Connection type: 2 m PVC cable
Temperature range: -10 °C - +70 °C
Approvals: CE, c UL us, EAC
Application:Indexing plungers with status sensor allow actuation-dependent process control. It is also possible to ensure that the indexing pin is in the desired actuation status.Safety:Indexing plungers with status sensor are not suitable for personnel safety functions.Drawing reference:

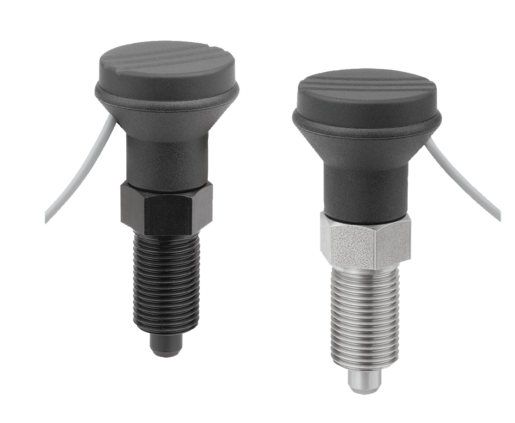

Form A: non-lockout type, without locknut

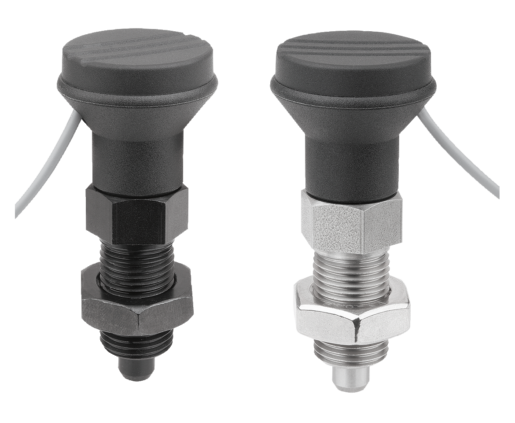

Form B: non-lockout type, with locknut
Form C: lockout type, without locknut

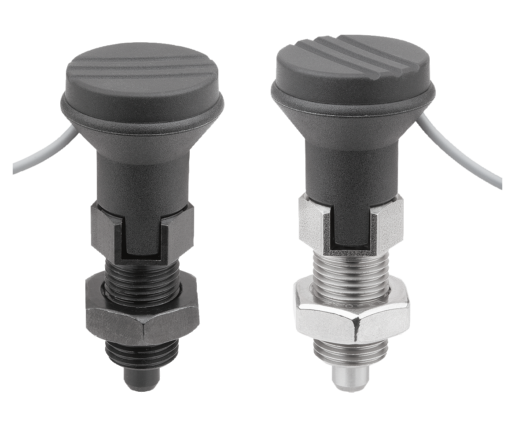

Form D: lockout type, with locknut

P = cable length

BN = brown
BK = black
BU = blue
Special features:
RoHS

Drawings

Indexing plungers steel or stainless steel with status sensor, hardwired, Form C

Item selection/filter

Order No.FormMain
material
locating pinD

D1D2D3LL1L2L3Travel
S
SW1Fx30°PSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K1744.31051Csteelhardened5M10x1252,451177155131,32000512 169.56 $ (USD)
K1744.32061Csteelhardened6M12x1,5252,456208176141,82000614 172.01 $ (USD)
K1744.33081Csteelhardened8M16x1,5332,4742610238192,320001535 174.47 $ (USD)
K1744.34101Csteelhardened10M20x1,5332,48028122510222,820001534 181.84 $ (USD)
K1744.34121Csteelhardened12M20x1,5332,48428142512222,820001539 186.75 $ (USD)
K1744.031051Cstainless steelhardened5M10x1252,451177155131,32000512 176.94 $ (USD)
K1744.032061Cstainless steelhardened6M12x1,5252,456208176141,82000614 179.37 $ (USD)
K1744.033081Cstainless steelhardened8M16x1,5332,4742610238192,320001535 186.75 $ (USD)
K1744.034101Cstainless steelhardened10M20x1,5332,48028122510222,820001534 191.65 $ (USD)
K1744.034121Cstainless steelhardened12M20x1,5332,48428142512222,820001539 196.58 $ (USD)
K1744.132061Cstainless steelnot hardened6M12x1,5252,456208176141,82000614 179.37 $ (USD)
K1744.131051Cstainless steelnot hardened5M10x1252,451177155131,32000512 176.94 $ (USD)
K1744.133081Cstainless steelnot hardened8M16x1,5332,4742610238192,320001535 186.75 $ (USD)
K1744.134101Cstainless steelnot hardened10M20x1,5332,48028122510222,820001534 191.65 $ (USD)
K1744.134121Cstainless steelnot hardened12M20x1,5332,48428142512222,820001539 196.58 $ (USD)
