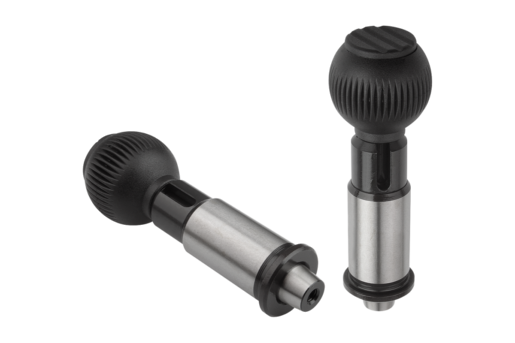

      - Precision indexing plungers with tapered pins, Style A, standard

Item description/product images

DescriptionMaterial:Steel.
Grip ball thermoplastic.Version:Hardened and ground.
Grip ball black grey.Note:The indexing plungers with bushes are a perfect combination for rapid positioning and fixating. The precise design of both the indexing plunger and the bush guarantees high repeat accuracy when assembling two elements.

For technical information see assembly and installation instructions.Drawing reference:

Form A: standard

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

TH_010_Praezisions-Arretierbolzen_enUS

101 kB

Drawings

Item selection/filter

Order No.	Form	Version 2	D	D1	D2	D3	L	L1	L3	L5	L6	Travel S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Internal thread grip ball	Price
K0359.010	A	standard	10	16	19	25	75	25	13	2,5	31	6	19	29	M6	178.04 $ (USD)
