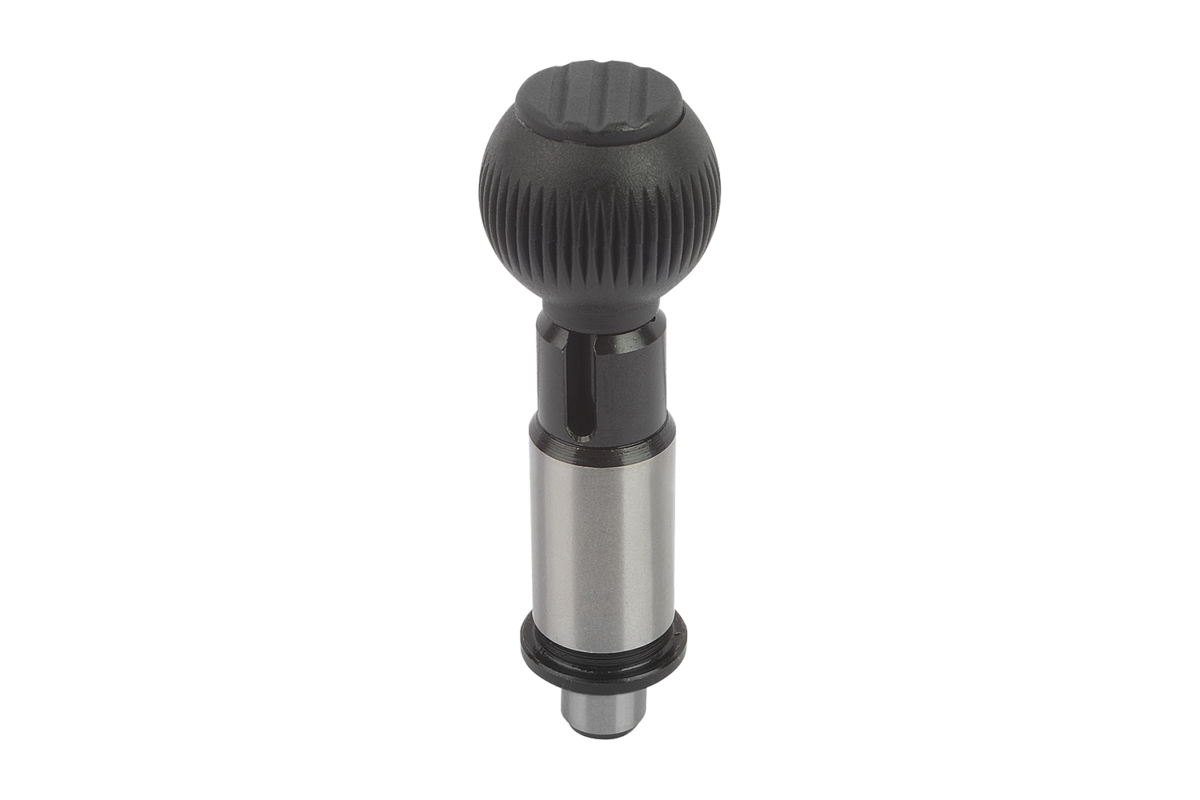

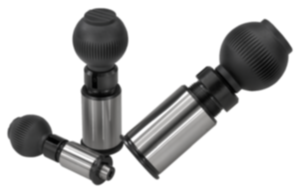

Precision indexing plungers with cylindrical pins, Style A, standard

Precision indexing plungers with cylindrical pins, Style A,...

go back

Item description/product images

Grip ball thermoplastic.
Version:Hardened and ground.
Grip ball black grey.
Note:The indexing plungers with bushes are a perfect combination for rapid positioning and fixing. The precise design of both the indexing plungers and the bush guarantees high repeating accuracy when assembling two elements.

Technical Information see assembly and installation instructions.
Drawing reference:
Form A: standard
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 TH_010_Praezisions-Arretierbolzen_enUS 101 kB


Precision indexing plungers with cylindrical pins, Style A, standard

Item selection/filter

Order No.FormDD1D2D3LL1L3L5L6Travel
Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
female thread grip ballCADAcc.PriceOrder
K0361.010A101619257925132,531101530M6 149.61 $ (USD)
K0361.012A12202332913313335101535M8 165.78 $ (USD)
K0361.016A16252840106,541,513342102050M10 190.68 $ (USD)
K0361.020A20303340114,541,513350103663M10 215.25 $ (USD)
K0361.025A253842501345113360102073M10 245.81 $ (USD)
