Material
Body, stainless steel.
Seal, NBR.
Seal, NBR.
Version
Stainless steel bright.
Show more
Show less
Description
Product description

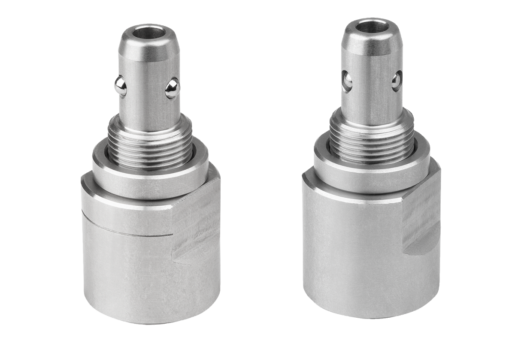

In its initial state, style A is clamped by a spring The locating cylinder is released by compressed air.
In its initial state, style B is released. The locating cylinder is tensioned by compressed air.
In its initial state, style B is released. The locating cylinder is tensioned by compressed air.
Material
Body, stainless steel.
Seal, NBR.
Seal, NBR.
Version
Stainless steel bright.
Note for ordering
Style A is marked with a groove.
Note
The stated clamping and retaining forces are related to an operating pressure of 0.5 Mpa.
When using several positioning units, the distance tolerance of ± 0.1 mm should not be exceeded.
Repeat accuracy ±0.2 mm.
When using several positioning units, the distance tolerance of ± 0.1 mm should not be exceeded.
Repeat accuracy ±0.2 mm.
Assembly
Installation dimensions are for a 6 mm thick plate.
Drawing reference
1) Style A ID groove
2) Pneumatic connection
3) Locating bushinging for locating cylinder
4) Style A locating cylinder
5) Style B locating cylinder
2) Pneumatic connection
3) Locating bushinging for locating cylinder
4) Style A locating cylinder
5) Style B locating cylinder
Accessory
K1739 locating bushings stainless steel.
