K0611One-piece shaft collars, slitted inside |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Version:Steel black oxidised, screw steel 12.9.
Stainless steel 1.4305 bright, screw stainless steel A2-70.
Stainless steel 1.4404 bright, screw stainless steel A2-70.
Aluminium bright, screw stainless steel A2-70.Note:One-piece shaft collars with an inner slit surround the shaft with an equal distribution of the clamping force. This leads to a very precise fit and high retaining force without damaging the shaft.
The shaft tolerance should lie within h11.
The shaft collars made of A4 stainless steel have a small centre point mark on the OD.Temperature range:-40 °C - +175 °C.On request:Other dimensions. |

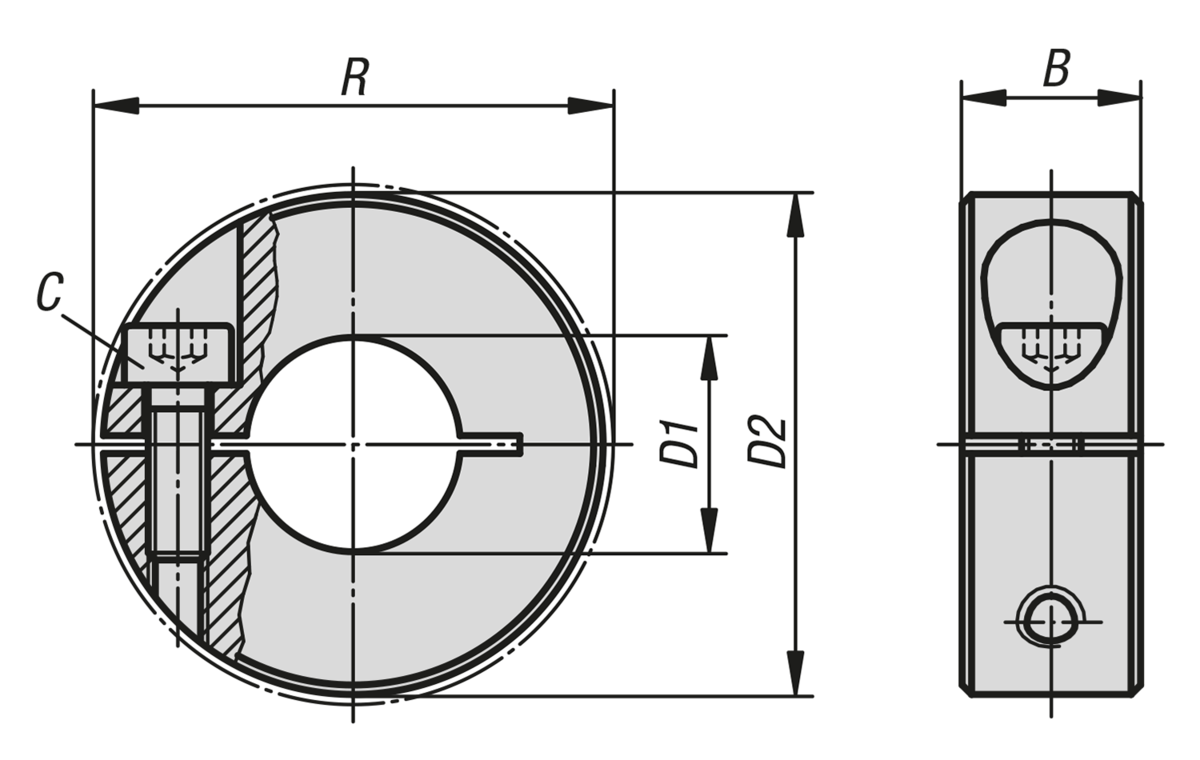

| Order No. | Form definition | Main
material | B
| C
(DIN 912) | D1 | D2 | R | CAD | Acc. | Price | Order |
|---|
| K0611.00401 | slitted inside | steel | 9 | M3x8 | 4 | 16 | 20,7 |  | | 4.74 $ (USD) | | | K0611.00501 | slitted inside | steel | 9 | M3x8 | 5 | 16 | 20,7 | | | 4.74 $ (USD) | | | K0611.00601 | slitted inside | steel | 9 | M3x8 | 6 | 16 | 20,7 | | | 4.74 $ (USD) | | | K0611.00801 | slitted inside | steel | 9 | M3x8 | 8 | 18 | 22,4 | | | 4.74 $ (USD) | | | K0611.01001 | slitted inside | steel | 9 | M3x10 | 10 | 24 | 26 | | | 5.54 $ (USD) | | | K0611.01201 | slitted inside | steel | 11 | M4x12 | 12 | 28 | 31,8 | | | 6.14 $ (USD) | | | K0611.01501 | slitted inside | steel | 13 | M5x16 | 15 | 34 | 39,4 | | | 7.28 $ (USD) | | | K0611.01601 | slitted inside | steel | 13 | M5x16 | 16 | 34 | 39,4 | | | 7.28 $ (USD) | | | K0611.01801 | slitted inside | steel | 13 | M5x16 | 18 | 36 | 41,1 | | | 8.18 $ (USD) | | | K0611.02001 | slitted inside | steel | 15 | M6x18 | 20 | 40 | 46,4 | | | 9.28 $ (USD) | | | K0611.02201 | slitted inside | steel | 15 | M6x18 | 22 | 42 | 48,1 | | | 9.79 $ (USD) | | | K0611.02501 | slitted inside | steel | 15 | M6x18 | 25 | 45 | 50,8 | | | 10.02 $ (USD) | | | K0611.02801 | slitted inside | steel | 15 | M6x18 | 28 | 48 | 53,7 | | | 11.06 $ (USD) | | | K0611.03001 | slitted inside | steel | 15 | M6x18 | 30 | 54 | 58,6 | | | 12.67 $ (USD) | | | K0611.04001 | slitted inside | steel | 15 | M6x18 | 40 | 60 | 65 | | | 14.62 $ (USD) | | | K0611.05001 | slitted inside | steel | 19 | M8x25 | 50 | 78 | 87 | | | 30.94 $ (USD) | | | K0611.00402 | slitted inside | stainless steel | 9 | M3x8 | 4 | 16 | 20,7 | | | 10.27 $ (USD) | | | K0611.00502 | slitted inside | stainless steel | 9 | M3x8 | 5 | 16 | 20,7 | | | 10.27 $ (USD) | | | K0611.00602 | slitted inside | stainless steel | 9 | M3x8 | 6 | 16 | 20,7 | | | 10.27 $ (USD) | | | K0611.00802 | slitted inside | stainless steel | 9 | M3x8 | 8 | 18 | 22,4 | | | 11.10 $ (USD) | | | K0611.01002 | slitted inside | stainless steel | 9 | M3x10 | 10 | 24 | 26 | | | 14.13 $ (USD) | | | K0611.01202 | slitted inside | stainless steel | 11 | M4x12 | 12 | 28 | 31,8 | | | 14.61 $ (USD) | | | K0611.01502 | slitted inside | stainless steel | 13 | M5x16 | 15 | 34 | 39,4 | | | 17.47 $ (USD) | | | K0611.01602 | slitted inside | stainless steel | 13 | M5x16 | 16 | 34 | 39,4 | | | 17.47 $ (USD) | | | K0611.01802 | slitted inside | stainless steel | 13 | M5x16 | 18 | 36 | 41,1 | | | 19.97 $ (USD) | | | K0611.02002 | slitted inside | stainless steel | 15 | M6x18 | 20 | 40 | 46,4 | | | 24.30 $ (USD) | | | K0611.02202 | slitted inside | stainless steel | 15 | M6x18 | 22 | 42 | 48,1 | | | 25.54 $ (USD) | | | K0611.02502 | slitted inside | stainless steel | 15 | M6x18 | 25 | 45 | 50,8 | | | 26.91 $ (USD) | | | K0611.02802 | slitted inside | stainless steel | 15 | M6x18 | 28 | 48 | 53,7 | | | 30.29 $ (USD) | | | K0611.03002 | slitted inside | stainless steel | 15 | M6x18 | 30 | 54 | 58,6 | | | 31.06 $ (USD) | | | K0611.04002 | slitted inside | stainless steel | 15 | M6x18 | 40 | 60 | 65 | | | 38.78 $ (USD) | | | K0611.05002 | slitted inside | stainless steel | 19 | M8x25 | 50 | 78 | 87 | | | 73.14 $ (USD) | | | K0611.00404 | slitted inside | stainless steel A4 | 9 | M3x8 | 4 | 16 | 20,7 | | | 13.33 $ (USD) | | | K0611.00504 | slitted inside | stainless steel A4 | 9 | M3x8 | 5 | 16 | 20,7 | | | 13.33 $ (USD) | | | K0611.00604 | slitted inside | stainless steel A4 | 9 | M3x8 | 6 | 16 | 20,7 | | | 13.33 $ (USD) | | | K0611.00804 | slitted inside | stainless steel A4 | 9 | M3x8 | 8 | 18 | 22,4 | | | 14.46 $ (USD) | | | K0611.01004 | slitted inside | stainless steel A4 | 9 | M3x10 | 10 | 24 | 26 | | | 18.37 $ (USD) | | | K0611.01204 | slitted inside | stainless steel A4 | 11 | M4x12 | 12 | 28 | 31,8 | | | 18.99 $ (USD) | | | K0611.01504 | slitted inside | stainless steel A4 | 13 | M5x16 | 15 | 34 | 39,4 | | | 22.72 $ (USD) | | | K0611.01604 | slitted inside | stainless steel A4 | 13 | M5x16 | 16 | 34 | 39,4 | | | 22.72 $ (USD) | | | K0611.01804 | slitted inside | stainless steel A4 | 13 | M5x16 | 18 | 36 | 41,1 | | | 25.94 $ (USD) | | | K0611.02004 | slitted inside | stainless steel A4 | 15 | M6x18 | 20 | 40 | 46,4 | | | 29.18 $ (USD) | | | K0611.02204 | slitted inside | stainless steel A4 | 15 | M6x18 | 22 | 42 | 48,1 | | | 30.64 $ (USD) | | | K0611.02504 | slitted inside | stainless steel A4 | 15 | M6x18 | 25 | 45 | 50,8 | | | 32.29 $ (USD) | | | K0611.02804 | slitted inside | stainless steel A4 | 15 | M6x18 | 28 | 48 | 53,7 | | | 36.35 $ (USD) | | | K0611.03004 | slitted inside | stainless steel A4 | 15 | M6x18 | 30 | 54 | 58,6 | | | 37.26 $ (USD) | | | K0611.04004 | slitted inside | stainless steel A4 | 15 | M6x18 | 40 | 60 | 65 | | | 46.56 $ (USD) | | | K0611.05004 | slitted inside | stainless steel A4 | 19 | M8x25 | 50 | 78 | 87 | | | 95.09 $ (USD) | | | K0611.00403 | slitted inside | aluminium | 9 | M3x8 | 4 | 16 | 20,7 | | | 6.72 $ (USD) | | | K0611.00503 | slitted inside | aluminium | 9 | M3x8 | 5 | 16 | 20,7 | | | 6.72 $ (USD) | | | K0611.00603 | slitted inside | aluminium | 9 | M3x8 | 6 | 16 | 20,7 | | | 6.72 $ (USD) | | | K0611.00803 | slitted inside | aluminium | 9 | M3x8 | 8 | 18 | 22,4 | | | 7.17 $ (USD) | | | K0611.01003 | slitted inside | aluminium | 9 | M3x10 | 10 | 24 | 26 | | | 8.59 $ (USD) | | | K0611.01203 | slitted inside | aluminium | 11 | M4x12 | 12 | 28 | 31,8 | | | 9.30 $ (USD) | | | K0611.01503 | slitted inside | aluminium | 13 | M5x16 | 15 | 34 | 39,4 | | | 13.86 $ (USD) | | | K0611.01603 | slitted inside | aluminium | 13 | M5x16 | 16 | 34 | 39,4 | | | 13.86 $ (USD) | | | K0611.01803 | slitted inside | aluminium | 13 | M5x16 | 18 | 36 | 41,1 | | | 15.73 $ (USD) | | | K0611.02003 | slitted inside | aluminium | 15 | M6x18 | 20 | 40 | 46,4 | | | 15.73 $ (USD) | | | K0611.02203 | slitted inside | aluminium | 15 | M6x18 | 22 | 42 | 48,1 | | | 16.24 $ (USD) | | | K0611.02503 | slitted inside | aluminium | 15 | M6x18 | 25 | 45 | 50,8 | | | 19.10 $ (USD) | | | K0611.02803 | slitted inside | aluminium | 15 | M6x18 | 28 | 48 | 53,7 | | | 24.83 $ (USD) | | | K0611.03003 | slitted inside | aluminium | 15 | M6x18 | 30 | 54 | 58,6 | | | 24.83 $ (USD) | | | K0611.04003 | slitted inside | aluminium | 15 | M6x18 | 40 | 60 | 65 | | | 32.98 $ (USD) | | | K0611.05003 | slitted inside | aluminium | 19 | M8x25 | 50 | 78 | 87 | | | 57.82 $ (USD) | |
