Hoist rings, steel, 360° rotation, grade 10

go back

Products
- Material handling
  - Ring bolts and hoist rings
    - Hoist rings, steel, 360° rotation, grade 10

Item description/product images

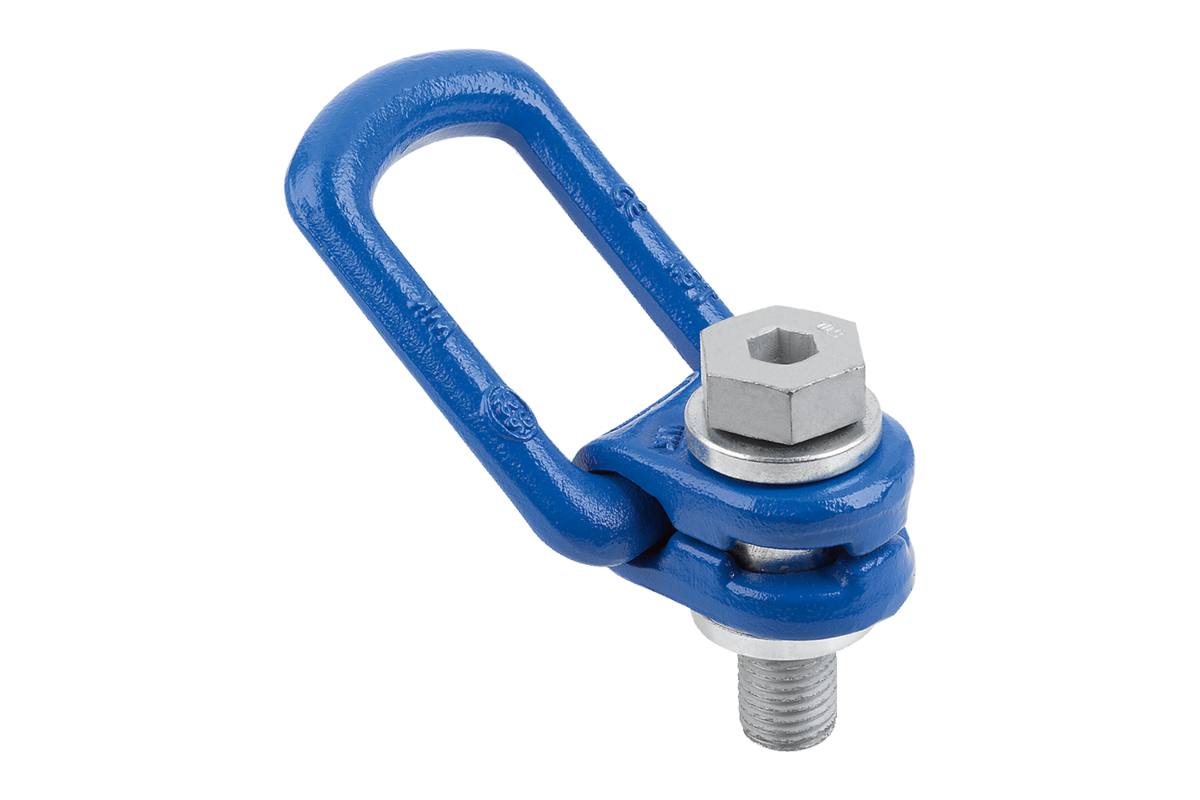

DescriptionMaterial:Ring and attachment shackle steel.
Bolt and bushing steel.Version:Ring and shackle forged, hardened and tempered. 100% electromagnetic crack detection, painted blue.
Bolt grade 10.9 or higher. 100% electromagnetic crack detection.
Bush electro zinc-plated.Note:The hoist ring can be folded-down, rotates through 360° and bears the full load in any permitted loading direction. The nominal load capacity is visibly indicated on the hoist ring. It applies to the most unfavourable load case (see table). The test load is 2.5 times the safe working load (SWL). The specified working load limit must not be exceeded.
With captive but removable hex bolt. The hoist rings comply with the Machinery Directive and are DGUV tested.

Tested according to DIN EN 1677-1.
The CE marking is stamped into the hoist ring. On request:Certificate of conformity.Special features:

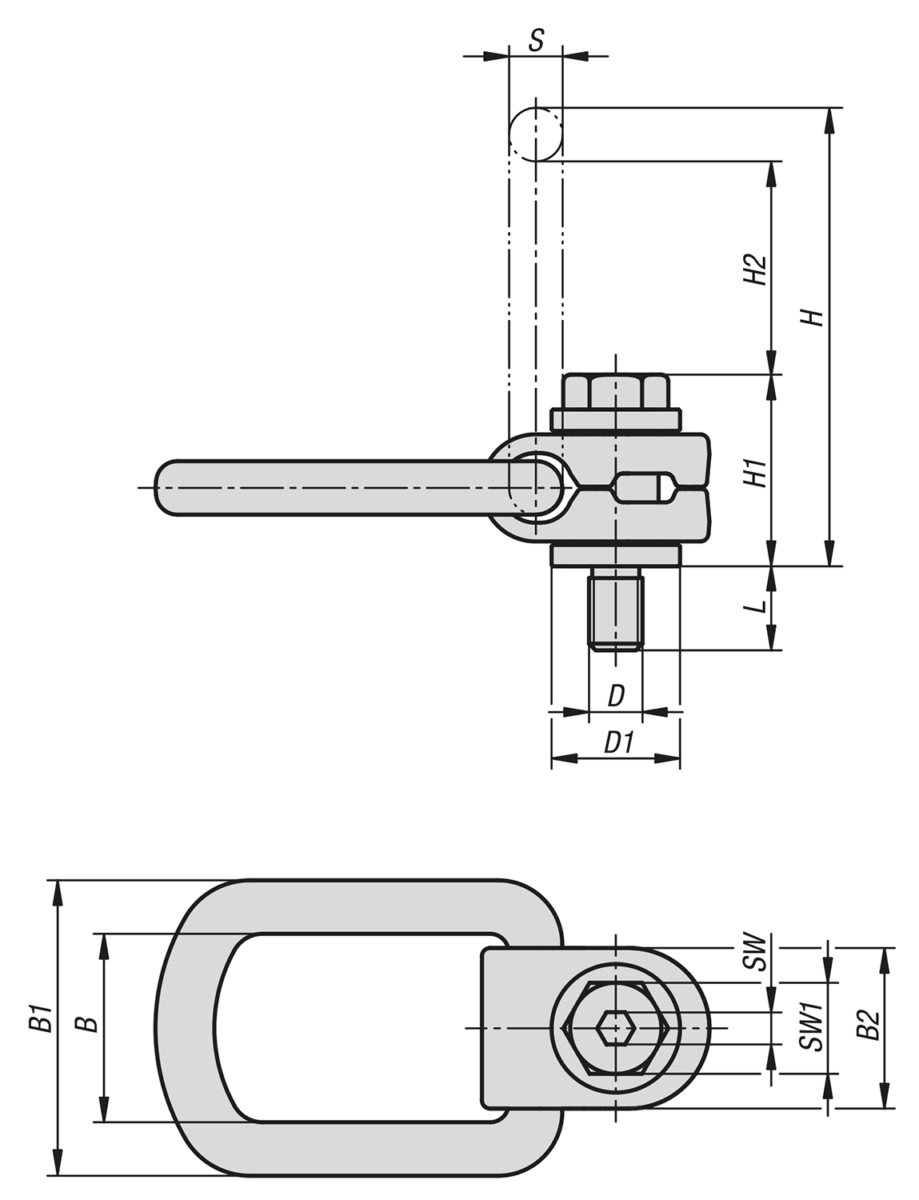

Drawings

Item selection/filter

Order No.	B	B1	B2	D	D1	H	H1	H2	L	S	SW	SW1	max. permissible load kg	Tightening torque Nm	Price
K1735.08011	36	57	30	M8	24	87	34	41	11	12	6	13	300	20	77.66 $ (USD)
K1735.10016	36	57	30	M10	24	87	35	40	16	12	6	17	630	30	79.79 $ (USD)
K1735.12020	36	57	34	M12	30	98	43	41	20	14	8	19	1000	45	92.98 $ (USD)
K1735.16025	36	57	34	M16	30	98	46	39	25	14	10	24	1500	150	107.39 $ (USD)
K1735.20032	53	83	50	M20	45	145	56	71	32	17	12	30	2500	300	134.98 $ (USD)
K1735.24037	53	83	50	M24	45	145	59	69	37	17	14	36	4000	400	136.06 $ (USD)
K1735.30044	64	101	67	M30	59	172	85	64	44	23	17	46	5000	1000	253.51 $ (USD)
K1735.36053	84	126	78	M36	69	223	100	96	53	28	22	55	8000	1800	365.60 $ (USD)
