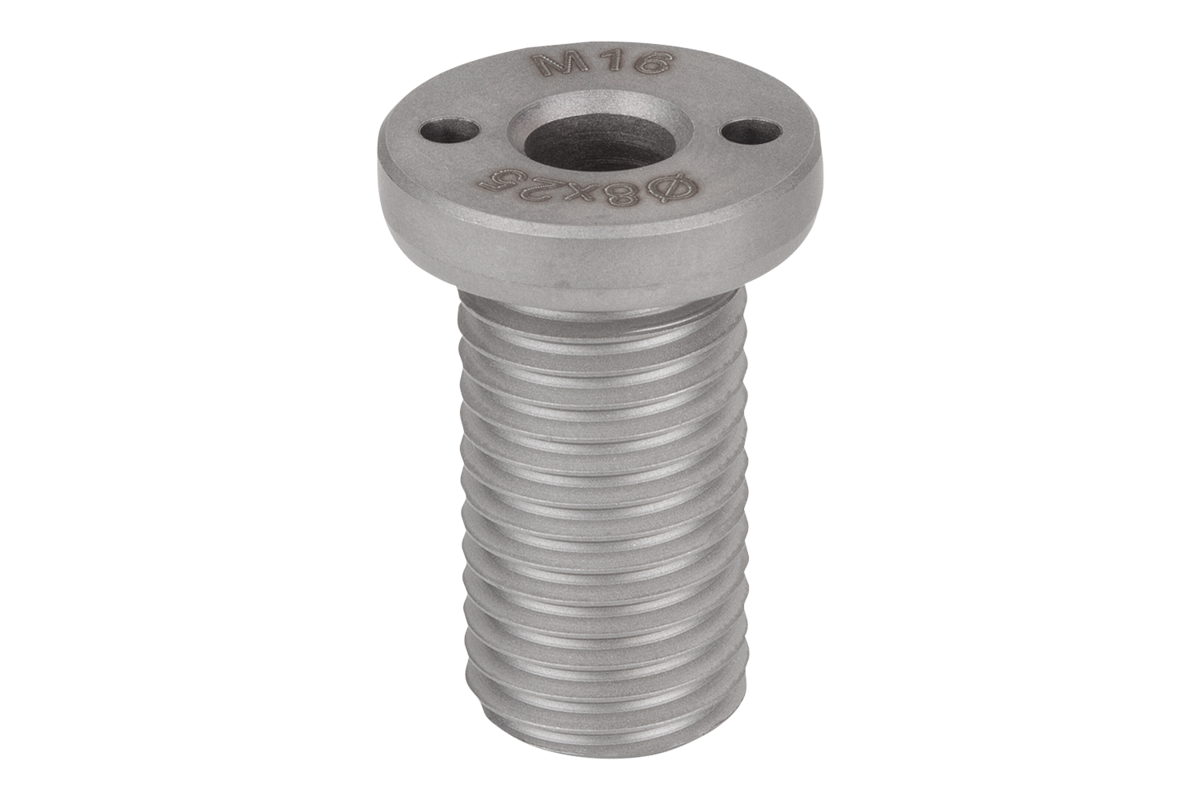

Locating bushes for ball lifting pins stainless steel, flat, Form A
K1921_A

Locating bushes for ball lifting pins stainless steel, flat,...

go back

Item description/product images

DescriptionMaterial:Version:Hardened.Note:The locating bushes offer a safe and quick option for holding the ball lifting pins. They ensure that installation in a range of supporting materials can be carried out easily and reliably. Can also be used with thin-walled parts and blind holes.
This version is suitable for applications which require a flat surface after having been screwed in.
They are corrosion-resistant and do not wear easily.
Special features:
Stainless steelRoHS

Drawings

Locating bushes for ball lifting pins stainless steel, flat, Form A

Item selection/filter

Order No.FormD1

D2D3D4D5D6L1L2L3XTightening
torque
Nm
CADAcc.PriceOrder
K1921.10810A8M16x1,5249,83,1161025201,575 59.30 $ (USD)
K1921.10815A8M16x1,5249,83,1161525201,575 61.31 $ (USD)
K1921.10825A8M16249,83,1162535301,575 64.21 $ (USD)
K1921.10835A8M16249,83,1163545401,575 67.81 $ (USD)
K1921.11015A10M20x1,52812,25,1201530241,5100 68.58 $ (USD)
K1921.11025A10M20x1,52812,25,1202535291,5100 69.82 $ (USD)
K1921.11035A10M202812,25,1203545391,5100 74.24 $ (USD)
K1921.11050A10M202812,25,1205060541,5100 81.12 $ (USD)
K1921.11215A12M24x1,53214,75,1221532261,5150 75.49 $ (USD)
K1921.11225A12M24x1,53214,75,1222540341,5150 76.86 $ (USD)
K1921.11625A16M30x23919,25,1302545391,5200 86.77 $ (USD)
