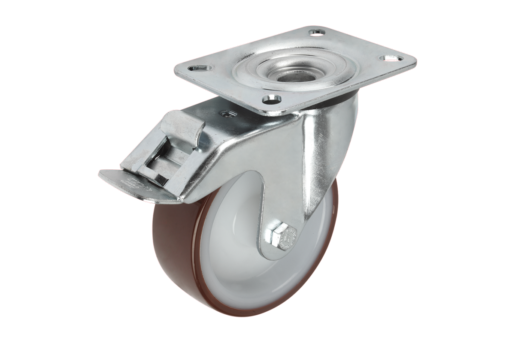

Swivel castors with "stop-fix"

go back

Products
- Material handling
  - Wheels and rollers
    - Swivel and fixed castors standard version
      - Swivel castors with "stop-fix"

Item description/product images

DescriptionMaterial:Housing steel plate.
Wheel body PA 6 with abrasion-resistant polyurethane tread.Version:Housing press formed.
Double ball bearing with ball shield in the castor head.
Plain bearing in the wheels.Note:The wheels are unbreakable, maintenance-free and non-corroding. Wheel axle bolted. Tread non-marking.Special features:

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg	Price
K1764.100352	Swivel castor	with stop-fix locking system	plain bearing	36	35	60	-	85	100	9	125	100	80	86	200	84.67 $ (USD)
K1764.125352	Swivel castor	with stop-fix locking system	plain bearing	40	40	60	-	85	125	9	150	100	80	102,5	200	102.73 $ (USD)
K1764.150402	Swivel castor	with stop-fix locking system	plain bearing	60	45	80	75	110	150	11	190	140	105	135	400	142.04 $ (USD)
K1764.200502	Swivel castor	with stop-fix locking system	plain bearing	65	50	80	75	110	200	11	235	140	105	165	400	185.26 $ (USD)
