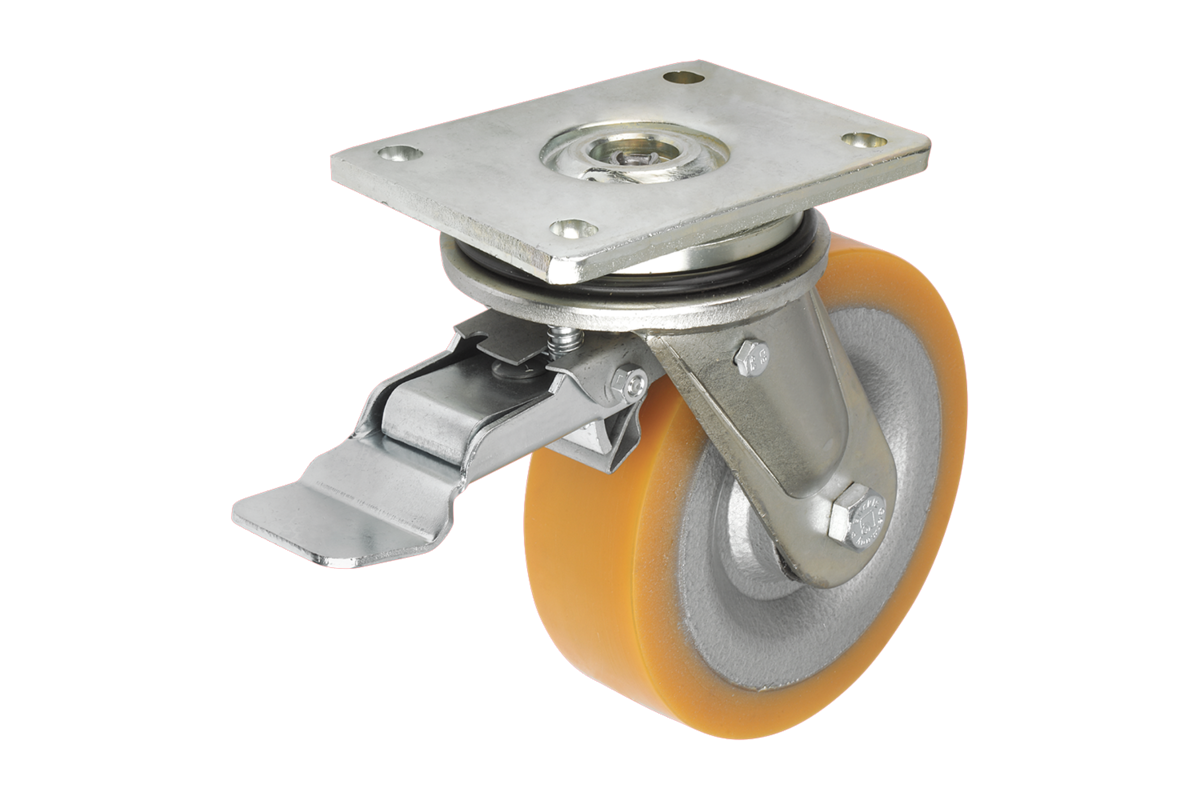

Item description/product images

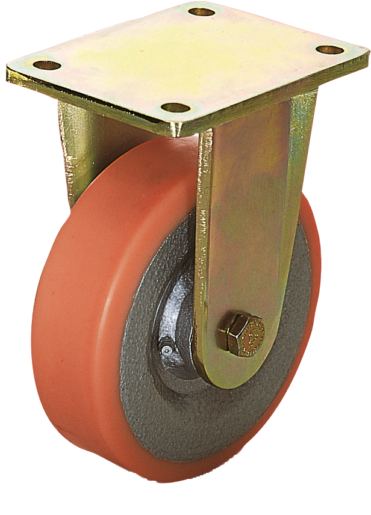

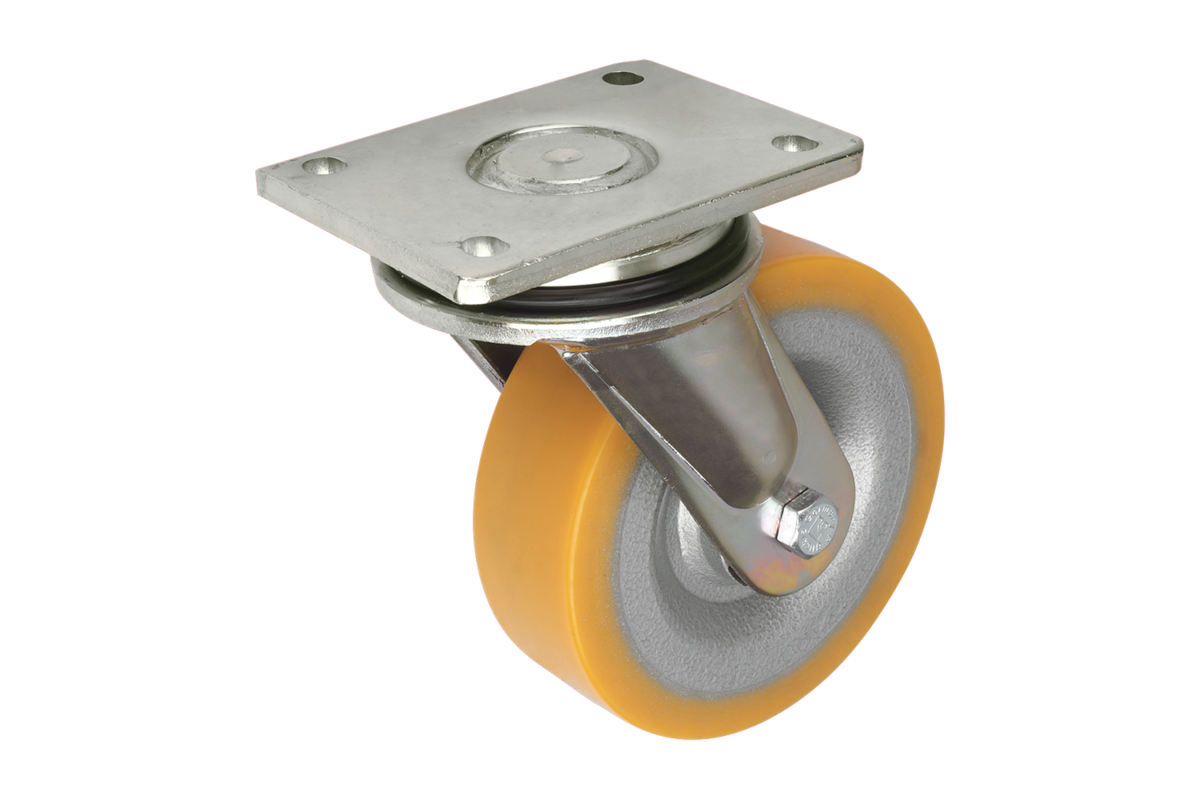

DescriptionMaterial:Housing solid welded steel construction.
Wheels with welded steel body and Extrathane® tread.Version:The housing is a rugged welded steel construction.
Swivel castor housing with DIN 711 axial groove ball bearing and DIN 720 tapered roller bearing in the swivel head. Dust and splash-proof, with grease nipple. Precision ball bearings in the wheels.Note:Centre pin welded in, bolted and secured. Wheel axle bolted.Special features:

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg	Price
K1769.16050	Swivel castor	without locking system	ball bearing	55	50	80	75	110	160	11	205	140	105	135	700	576.51 $ (USD)
K1769.20050	Swivel castor	without locking system	ball bearing	60	50	80	75	110	200	11	245	140	105	160	1000	610.54 $ (USD)
K1769.25060	Swivel castor	without locking system	ball bearing	75	60	105	-	140	250	14	305	175	140	200	1350	859.57 $ (USD)
