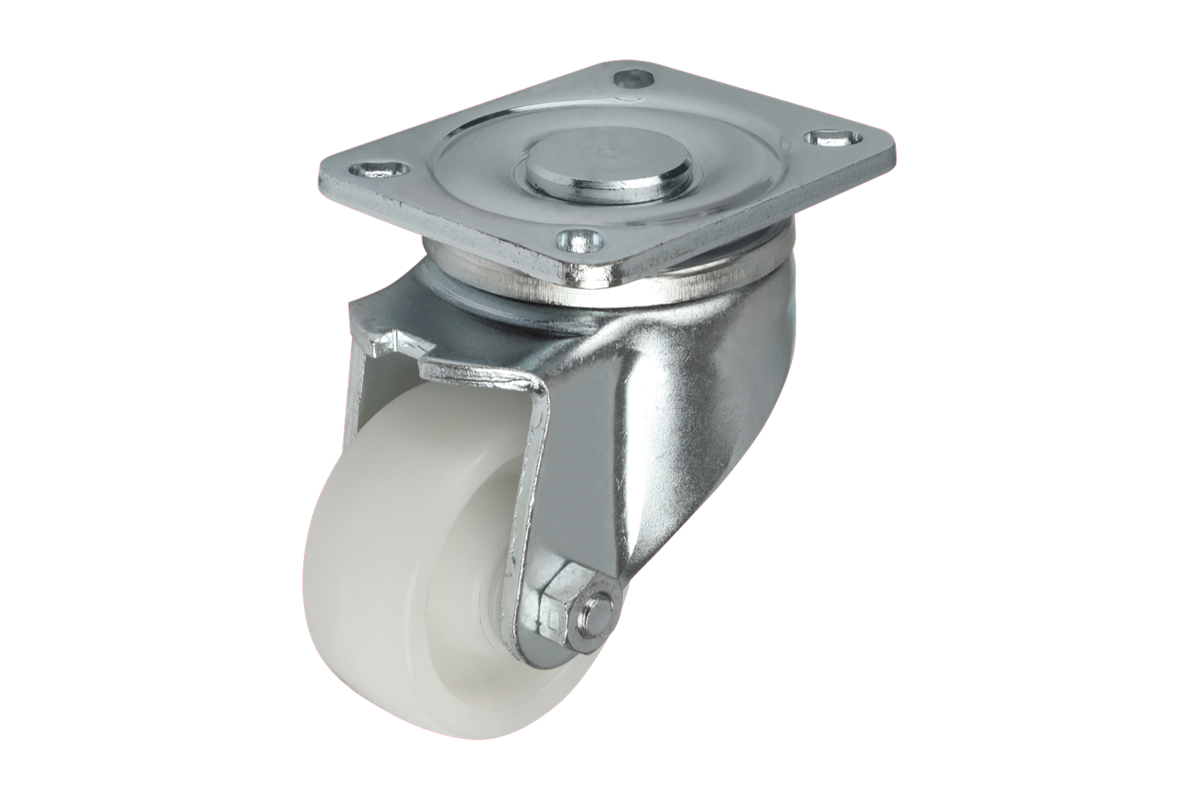

Swivel castors

go back

Products
- Material handling
  - Wheels and rollers
    - Swivel and fixed castors heavy-duty version
      - Swivel castors

Item description/product images

DescriptionMaterial:Housing thick steel plate.
Wheels high-quality PA 6.Version:Housing press formed.
Swivel castor housing with strong fork and base plate, very robust centre pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.Note:The hardened bearing shells make these castors particularly shock and impact proof. The wheels have high abrasion resistance. Wheel axle bolted.Special features:

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg	Price
K1772.07532	Swivel castor	without locking system	plain bearing	45	32	60	-	85	75	9	118	100	80	82,5	300	106.96 $ (USD)
K1772.075323	Swivel castor	without locking system	ball bearing	45	32	60	-	85	75	9	118	100	80	82,5	300	171.43 $ (USD)
K1772.10037	Swivel castor	without locking system	plain bearing	45	37	60	-	85	100	9	140	100	80	95	500	130.54 $ (USD)
K1772.100373	Swivel castor	without locking system	ball bearing	45	37	60	-	85	100	9	140	100	80	95	500	189.49 $ (USD)
K1772.12540	Swivel castor	without locking system	plain bearing	45	40	60	-	85	125	9	165	100	80	107,5	700	156.21 $ (USD)
K1772.125403	Swivel castor	without locking system	ball bearing	45	40	60	-	85	125	9	165	100	80	107,5	700	221.72 $ (USD)
K1772.15050	Swivel castor	without locking system	plain bearing	65	50	80	75	110	150	11	197	140	105	140	800	192.33 $ (USD)
K1772.150503	Swivel castor	without locking system	ball bearing	65	50	80	75	110	150	11	197	140	105	140	800	243.99 $ (USD)
