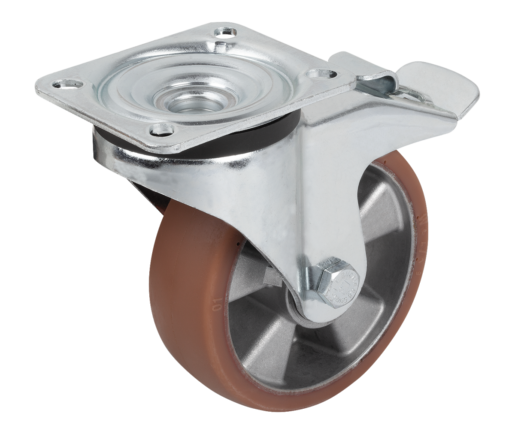

Item description/product images

DescriptionMaterial:Housing, steel plate.
Wheel tread, high quality polyurethane elastomere.
Wheel rims, die-cast aluminium.Version:Housing, press-formed.
Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.Note:Wheel axle bolted.
Swivel and fixed castors with mounting plate.Application:Heavy loads can be easily transported using this load handling equipment. The roll and swivel resistance is reduced with this new wheel series designed for intralogistic heavy load applications.Temperature range:-25 °C to +70 °CSpecial features:

Drawings

Item selection/filter

Order No.	Item	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	L2	Permissible load kg	Price
K1788.1010004021	Swivel castor	ball bearing	45	40	60	55	85	100	9	130	100	80	76	350	195.78 $ (USD)
K1788.1010004023	Swivel castor	ball bearing	45	40	80	75	110	100	11	130	140	105	-	350	200.03 $ (USD)
K1788.1012504021	Swivel castor	ball bearing	48	40	60	55	85	125	9	155	100	80	76	350	219.06 $ (USD)
K1788.1012504023	Swivel castor	ball bearing	48	40	80	75	110	125	11	155	140	105	-	350	224.59 $ (USD)
K1788.101500502	Swivel castor	ball bearing	63	50	80	75	110	150	11	197	140	105	-	500	342.06 $ (USD)
K1788.101600502	Swivel castor	ball bearing	63	50	80	75	110	160	11	202	140	105	-	550	380.08 $ (USD)
K1788.102000502	Swivel castor	ball bearing	65	50	80	75	110	200	11	245	140	105	-	600	445.35 $ (USD)
