Lateral spring plungers with plastic spring, stainless steel thrust pin

Lateral spring plungers with plastic spring, stainless steel...

go back

Item description/product images

DescriptionMaterial:Sleeve and spring plastic.
Trust pin stainless steel.
Version:Thrust pin bright.Note:Lateral spring plungers are used for positioning, holding and fastening workpieces in applications where there is increased presence of dirt.
For example: painting and sandblasting.

Calculation dimension X:
Y > = L1-D1/2, therefore X=D1/2-S
Y < L1-D1/2, therefore X =D1/2-S-((L1-D1/2-Y)*0,123)

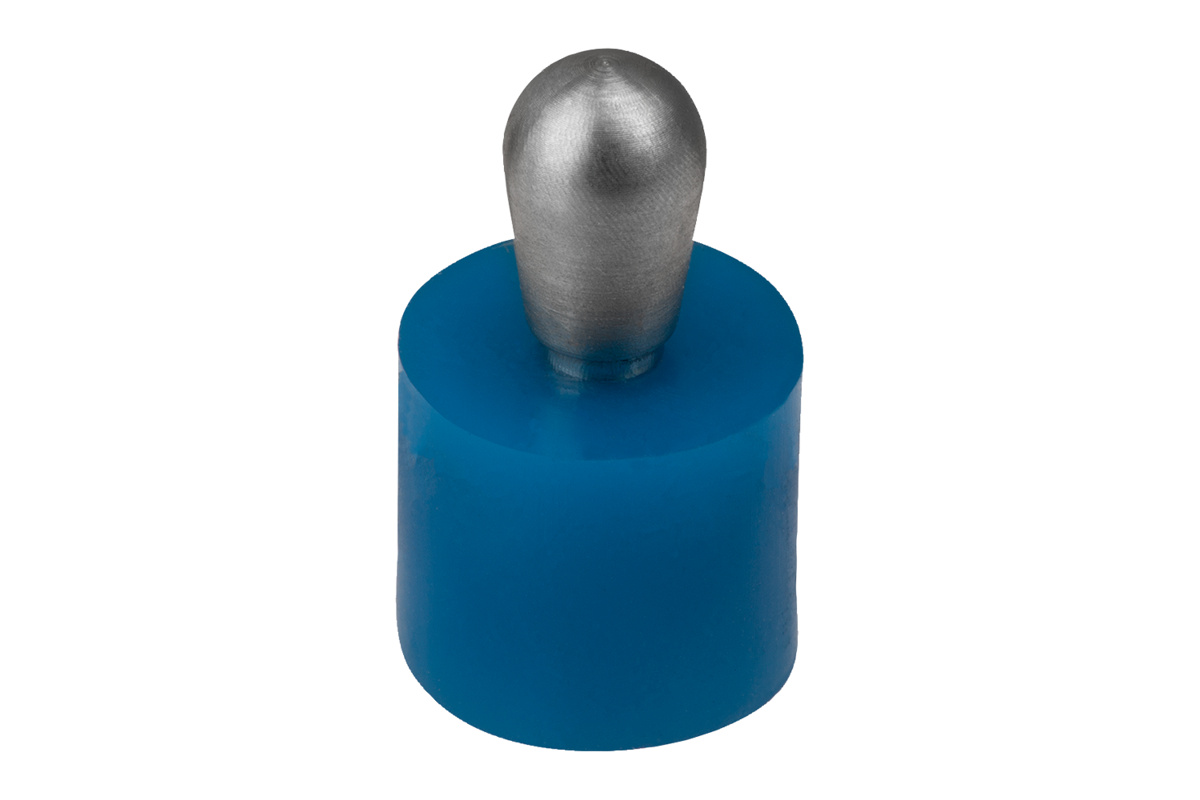

Light spring force = blue spring
Standard spring force = red spring
Strong spring force = green spring
Assembly:The sleeve is pressed into the hole.
It is recommended to moisten the sleeve before assembly.
Drawing reference:
1) Assembly tool
2) Some sizes have a different pin form

Y = workpiece height
W = workpiece length
X = coordinate dimension
Z = stop diameter
Special features:


Lateral spring plungers with plastic spring, stainless steel thrust pin

Item selection/filter

Order No.Version 1Version 2D

Order No.
K1733.110307light spring forcedifferent pin form632,973,70,410K1733.03 9.38 $ (USD)
K1733.110409light spring force-847,995,20,615K1733.04 9.76 $ (USD)
K1733.110509light spring force-1059,997,30,830K1733.05 10.74 $ (USD)
K1733.110609light spring force-1069,9910,3120K1733.05 11.57 $ (USD)
K1733.210307standard spring forcedifferent pin form635,973,70,420K1733.03 9.38 $ (USD)
K1733.210409standard spring force-847,995,20,630K1733.04 9.76 $ (USD)
K1733.210509standard spring force-1059,997,30,860K1733.05 10.74 $ (USD)
K1733.210609standard spring force-1069,9910,3130K1733.05 11.57 $ (USD)
K1733.210813standard spring force-12811,91313,31,250K1733.08 12.58 $ (USD)
K1733.211016standard spring force-161015,91616,91,680K1733.10 13.23 $ (USD)
K1733.310509intensified spring force-1059,997,30,890K1733.05 10.74 $ (USD)
K1733.310609intensified spring force-1069,9910,3160K1733.05 11.57 $ (USD)
K1733.310813intensified spring force-12811,91313,21,2100K1733.08 12.58 $ (USD)
K1733.311016intensified spring force-161015,91616,61,6160K1733.10 13.23 $ (USD)
