K0368 InchLateral Spring Plungers without seal, pressure pin in... |
go back |
|

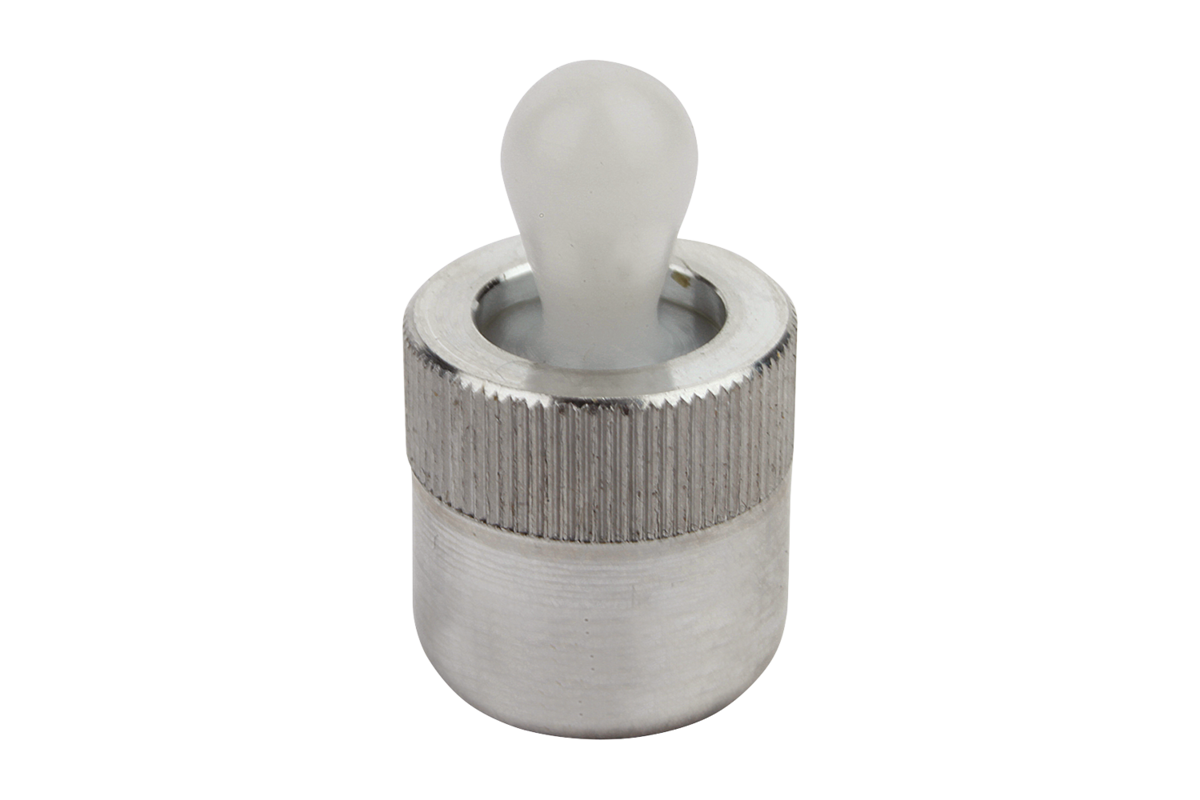

Item description/product images |
|
|
DescriptionMaterial:Sleeve in aluminium; spring in steel; pressure pin in plasticVersion:Sleeve blue galvanized.Note:Lateral spring plungers are for positioning, clamping, holding and fastening of workpieces during engraving, labelling, drilling, reaming, tapping, honing, grinding, welding, soldering, tooling, assembling, etc.
Eccentric adjustment bushes see 03330.
W and Z are customer specific.Drawing reference: |
Order No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1
| X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| K0368.71034CM | 1/4 | 3 | 4 | 7 | 1/4 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | K0369.03CM |  | | on request | | | K0368.71054CU | 7/16 | 5 | 6,7 | 11 | 7/16 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | K0369.05CU | | | on request | | | K0368.71064CU | 7/16 | 6 | 10,7 | 11 | 7/16 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | K0369.05CU | | | on request | | | K0368.71084CP | 1/2 | 8 | 13,9 | 13 | 1/2 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | K0369.08CP | | | on request | | | K0368.71104CQ | 5/8 | 10 | 16,7 | 17 | 5/8 | 1,6 | 100 | - | - | - | - | - | 3,1 | K0369.10CQ | | | on request | |
