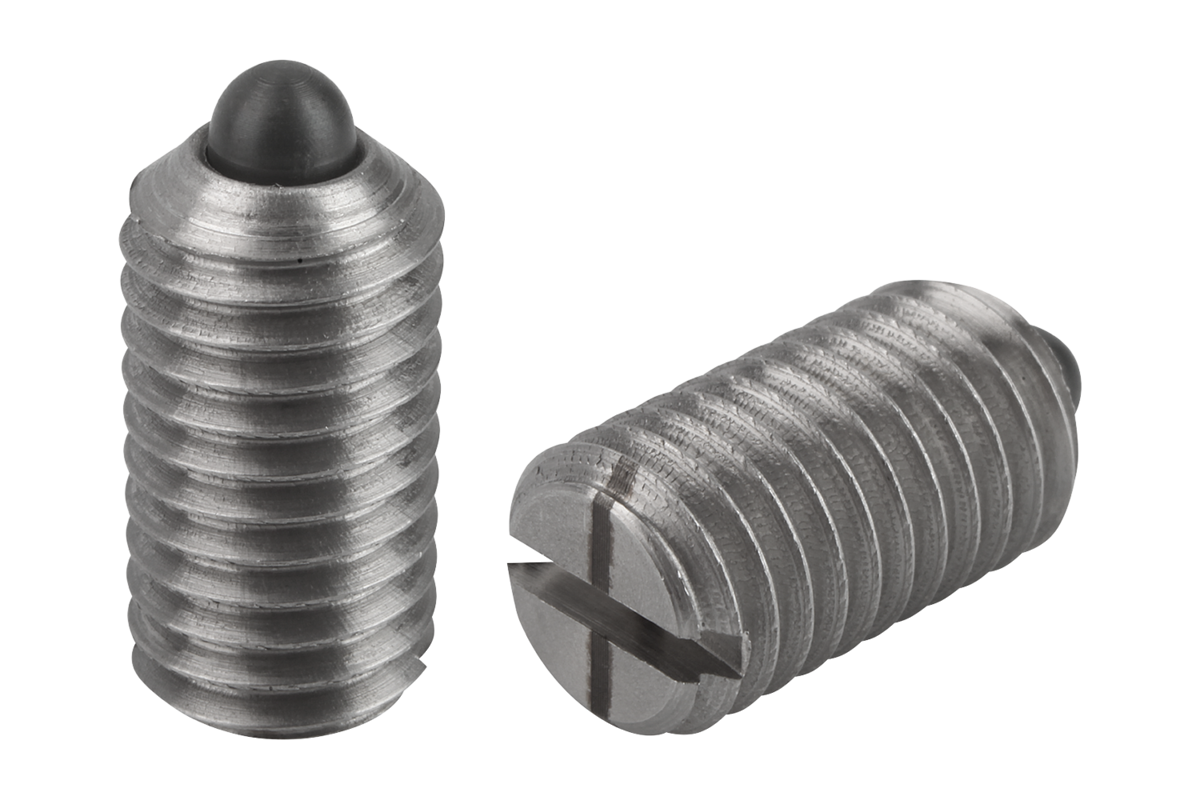

Spring plungers with slot and thrust pin, light spring force - inch
K0314_LF inch

Spring plungers with slot and thrust pin, light spring force -...

go back

Item description/product images

DescriptionMaterial:Version:Bright.
Thrust pin hardened.
Note:For the inch series, dimension D is in inches, all other dimensions are in mm.Special features:
Stainless steelRoHS

Drawings

Spring plungers with slot and thrust pin, light spring force - inch

Item selection/filter

Order No.Main
material
DD1HLNSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0314.1AGstainless steel8-361,81,590,627 6.68 $ (USD)
K0314.1AEstainless steel8-321,81,590,6310 6.68 $ (USD)
K0314.1A1stainless steel10-322,42120,8310 6.77 $ (USD)
K0314.1AJstainless steel1/4-282,7214139 6.93 $ (USD)
K0314.1A2stainless steel1/4-202,72141410 6.93 $ (USD)
K0314.1A3stainless steel5/16-1842161,2715 8.56 $ (USD)
K0314.1A4stainless steel3/8-164,52,5191,6916 9.82 $ (USD)
K0314.1A5stainless steel1/2-1363,52221426 13.02 $ (USD)
K0314.1A6stainless steel5/8-118,54,5242,52250 15.99 $ (USD)
