K0384Ball-end thrust screws without head stainless steel with... |
go back |
|
Item description/product images |
|
|

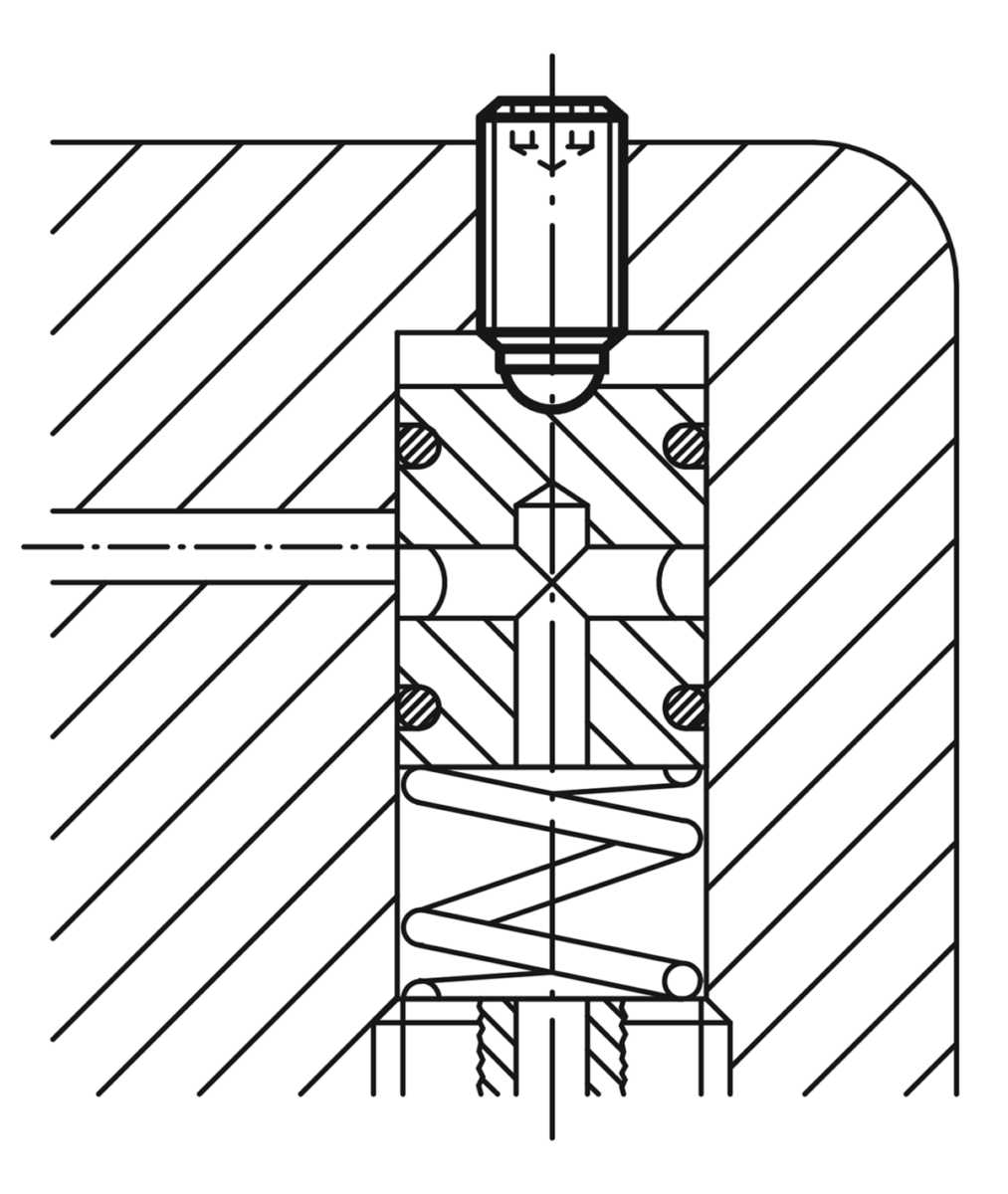

DescriptionMaterial:Screw and ball stainless steel.Version:Bright.Note:Surfaces which are not flat and parallel can be firmly clamped or supported with a flattened ball, the movable ball can adapt itself up to 9°.
Longer versions have been designed especially to be glued in. This enables mechanical connecting elements with male thread to be made cost-effectively for small and medium-sized series.Special features: |
Order No.
| Form | D | D1 | L | Ball-Ø | SW | CAD | Acc. | Price | Order |
|---|
| K0384.2046 | B | M4 | 1,4 | 5,8 | 2,5 | 2 |  | | 9.28 $ (USD) | | | K0384.2048 | B | M4 | 1,4 | 7,8 | 2,5 | 2 | | | 9.28 $ (USD) | | | K0384.20410 | B | M4 | 1,4 | 9,8 | 2,5 | 2 | | | 9.30 $ (USD) | | | K0384.20412 | B | M4 | 1,4 | 11,8 | 2,5 | 2 | | | 9.30 $ (USD) | | | K0384.20416 | B | M4 | 1,4 | 15,8 | 2,5 | 2 | | | 9.52 $ (USD) | | | K0384.2058 | B | M5 | 2 | 7,6 | 3 | 2,5 | | | 9.98 $ (USD) | | | K0384.20510 | B | M5 | 2 | 9,6 | 3 | 2,5 | | | 10.08 $ (USD) | | | K0384.20512 | B | M5 | 2 | 11,6 | 3 | 2,5 | | | 10.14 $ (USD) | | | K0384.20516 | B | M5 | 2 | 15,6 | 3 | 2,5 | | | 10.30 $ (USD) | | | K0384.20520 | B | M5 | 2 | 19,6 | 3 | 2,5 | | | 10.49 $ (USD) | | | K0384.20525 | B | M5 | 2 | 24,6 | 3 | 2,5 | | | 10.61 $ (USD) | | | K0384.20610 | B | M6 | 3 | 10,1 | 4 | 3 | | | 11.12 $ (USD) | | | K0384.20612 | B | M6 | 3 | 12,1 | 4 | 3 | | | 11.23 $ (USD) | | | K0384.20616 | B | M6 | 3 | 16,1 | 4 | 3 | | | 11.33 $ (USD) | | | K0384.20620 | B | M6 | 3 | 20,1 | 4 | 3 | | | 11.43 $ (USD) | | | K0384.20625 | B | M6 | 3 | 25,1 | 4 | 3 | | | 11.47 $ (USD) | | | K0384.20650 | B | M6 | 3 | 50,1 | 4 | 3 | | | 17.37 $ (USD) | | | K0384.20660 | B | M6 | 3 | 60,1 | 4 | 3 | | | 18.17 $ (USD) | | | K0384.20680 | B | M6 | 3 | 80,1 | 4 | 3 | | | 19.71 $ (USD) | | | K0384.20810 | B | M8 | 4,1 | 10,3 | 5,5 | 4 | | | 13.08 $ (USD) | | | K0384.20812 | B | M8 | 4,1 | 12,3 | 5,5 | 4 | | | 13.20 $ (USD) | | | K0384.20816 | B | M8 | 4,1 | 16,3 | 5,5 | 4 | | | 13.22 $ (USD) | | | K0384.20820 | B | M8 | 4,1 | 20,3 | 5,5 | 4 | | | 13.28 $ (USD) | | | K0384.20825 | B | M8 | 4,1 | 25,3 | 5,5 | 4 | | | 13.28 $ (USD) | | | K0384.20830 | B | M8 | 4,1 | 30,3 | 5,5 | 4 | | | 13.28 $ (USD) | | | K0384.20850 | B | M8 | 4,1 | 50,3 | 5,5 | 4 | | | 21.98 $ (USD) | | | K0384.20860 | B | M8 | 4,1 | 60,3 | 5,5 | 4 | | | 24.26 $ (USD) | | | K0384.20880 | B | M8 | 4,1 | 80,3 | 5,5 | 4 | | | 26.68 $ (USD) | | | K0384.21012 | B | M10 | 5,6 | 12,3 | 7 | 5 | | | 15.02 $ (USD) | | | K0384.21016 | B | M10 | 5,6 | 16,3 | 7 | 5 | | | 15.21 $ (USD) | | | K0384.21020 | B | M10 | 5,6 | 20,3 | 7 | 5 | | | 15.23 $ (USD) | | | K0384.21025 | B | M10 | 5,6 | 25,3 | 7 | 5 | | | 15.23 $ (USD) | | | K0384.21035 | B | M10 | 5,6 | 35,3 | 7 | 5 | | | 15.39 $ (USD) | | | K0384.21216 | B | M12 | 7 | 16,2 | 8,5 | 6 | | | 18.90 $ (USD) | | | K0384.21220 | B | M12 | 7 | 20,2 | 8,5 | 6 | | | 19.05 $ (USD) | | | K0384.21230 | B | M12 | 7 | 30,2 | 8,5 | 6 | | | 19.58 $ (USD) | | | K0384.21240 | B | M12 | 7 | 40,2 | 8,5 | 6 | | | 19.79 $ (USD) | | | K0384.21620 | B | M16 | 10,7 | 20 | 12 | 8 | | | 33.07 $ (USD) | | | K0384.21625 | B | M16 | 10,7 | 25 | 12 | 8 | | | 33.21 $ (USD) | | | K0384.21635 | B | M16 | 10,7 | 35 | 12 | 8 | | | 33.93 $ (USD) | | | K0384.21650 | B | M16 | 10,7 | 50 | 12 | 8 | | | 34.59 $ (USD) | |
