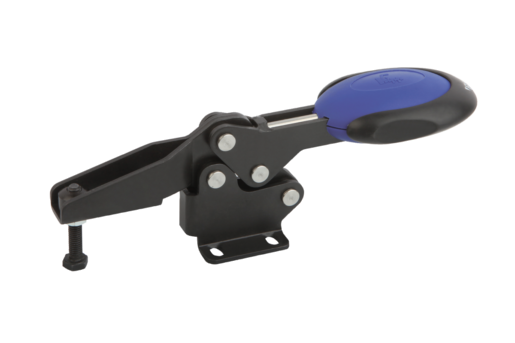

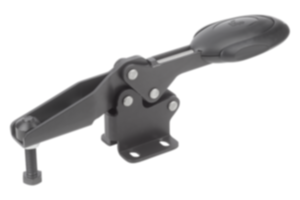

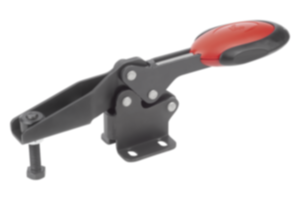

Toggle clamps horizontal with safety interlock with flat foot and adjustable clamping spindle
K0660

Toggle clamps horizontal with safety interlock with flat foot...

go back

Item description/product images

DescriptionMaterial:Steel.
Grip polyamide.
Unlocking bracket TPE.
Version:Nitro-carburized and black oxidized.Note:Maintenance-free high quality link bushings. Sustainable constant force during opening and closing. Optimum stability through the conical, U-profile clamping arm. Including internal bar lock with automatic safety catch.Accessory:K0106
K0098
K0383
K0388
K0390
K0391
K0392
K0393
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Th_013_KIPPLock_enUS 213 kB

Drawings

Toggle clamps horizontal with safety interlock with flat foot and adjustable clamping spindle

Item selection/filter

Order No.hole
arrangement
Opening angle
of holding arm
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F1 N
Retaining
force
F2 N
Clamping
force
F3 N
Clamping
force
F4 N
Order No.
Angle bracket
CADAcc.PriceOrder
K0660.006101386°67°160135019007201200K0098.04  on request
K0660.008101386°67°200200028008301400K0098.04  on request
K0660.010101390°71°2502200450012002800K0098.06  on request
K0660.012101488°68°2802400550010002800K0098.06  on request
Order No.

MAA1A2A3A4BB1B2B3B4B5B6CC2DHH1LL1CADAcc.PriceOrder
K0660.006101M6x3526396,5--283917,512,5232,553,425,4-5,563,759,6193,360,5  on request
K0660.008101M8x4526449--31452116242,551,132,2-6,273,970,1230,474,9  on request
K0660.010101M10x5541,5598,5--43592619393,556,540-8,894,888286103,9  on request
K0660.012101M12x7044651040142672821403,556,552,313,58,5104,8101,6321,3122  on request
