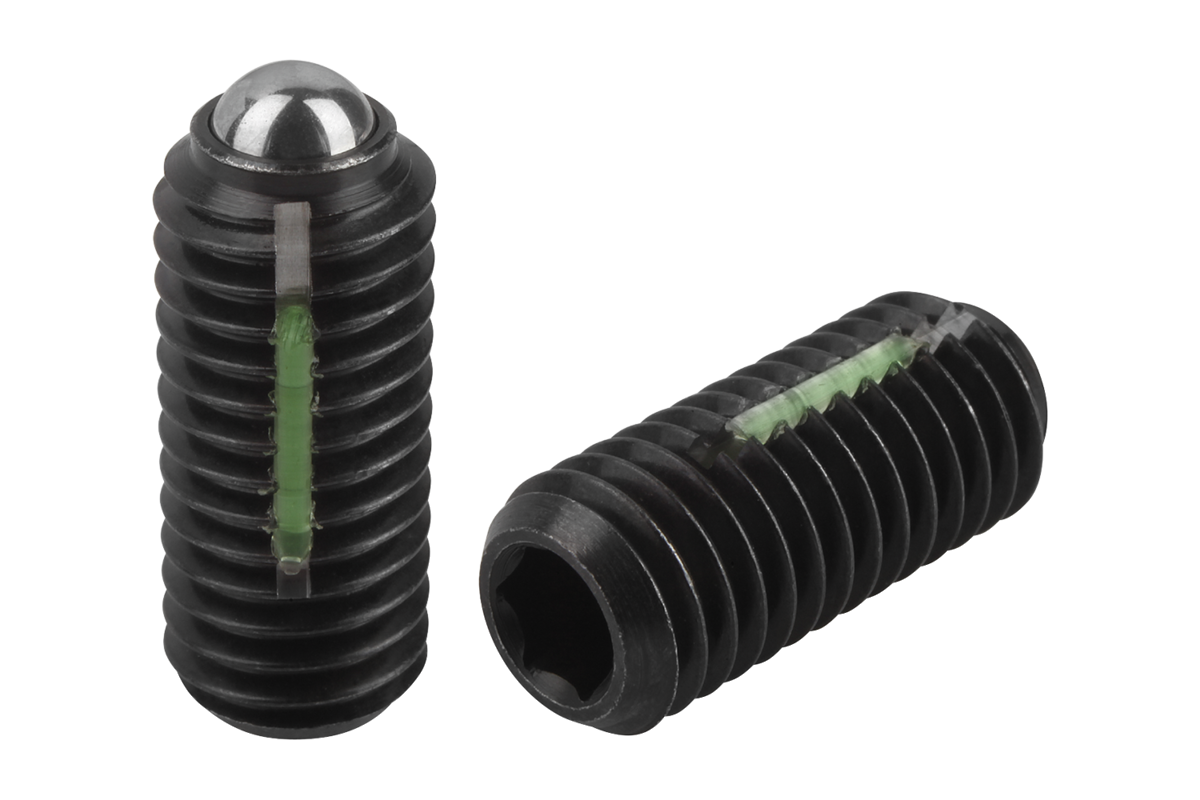

  5. Spring plungers with hex socket and ball, steel, with thread lock - inch
    6. Spring plungers with hexagon socket and ball, steel, standard spring force, with thread lock - inch

Description

Material
Sleeve steel grade 5.8.
Ball steel.
Spring grade D spring steel wire.

Thread lock nylon.
Version
Black oxidized. Ball hardened.
Note
For the inch series, dimension D and S are in inches, all other dimensions are in mm.
Drawing reference
L2 = approx. 2x thread pitch
