- Ideal for clamping low-profile workpieces
- Clamping element and fixed jaw in one compact unit
- Specifically for small components
Description
Material
Carbon steel.
Version
Hardened (33–39 HRC) and black oxidized.
Note

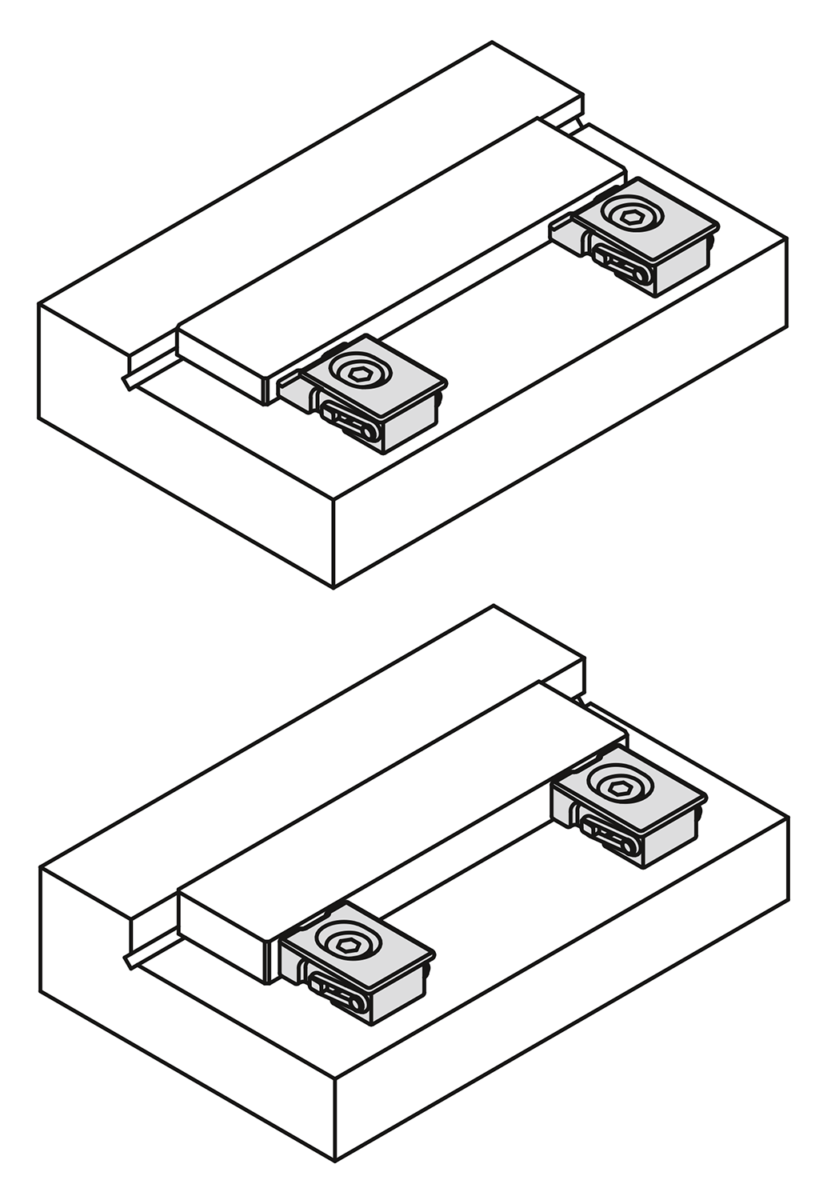

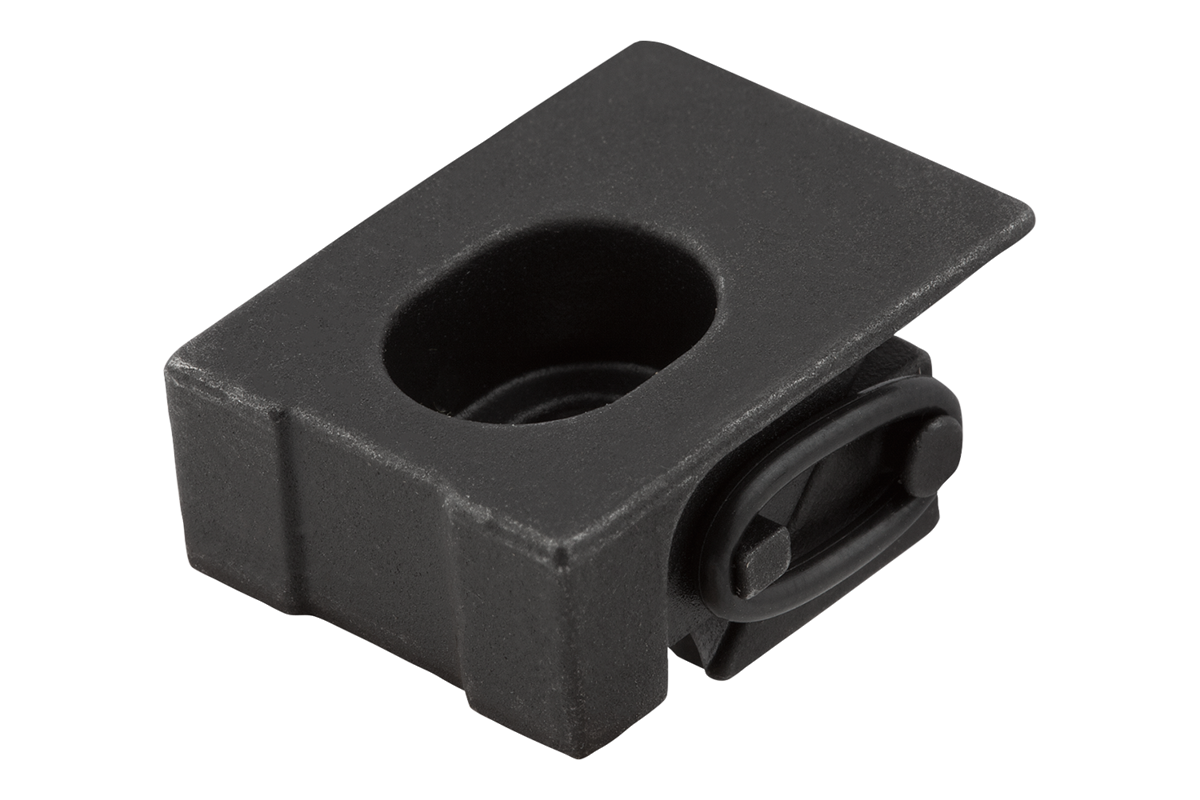

Particularly low workpieces can be clamped using these flat clamps.
Clamping element with pull-down effect.
Clamping element and fixed block in one compact unit.
Clamping element with pull-down effect.
Clamping element and fixed block in one compact unit.
Drawing reference
Dimension L1 refers to clamped state.
