Material
Carbon steel.
Version
Black oxidized.
Mostrar más
Mostrar menos
Descripción
Material
Carbon steel.
Version
Black oxidized.
Note

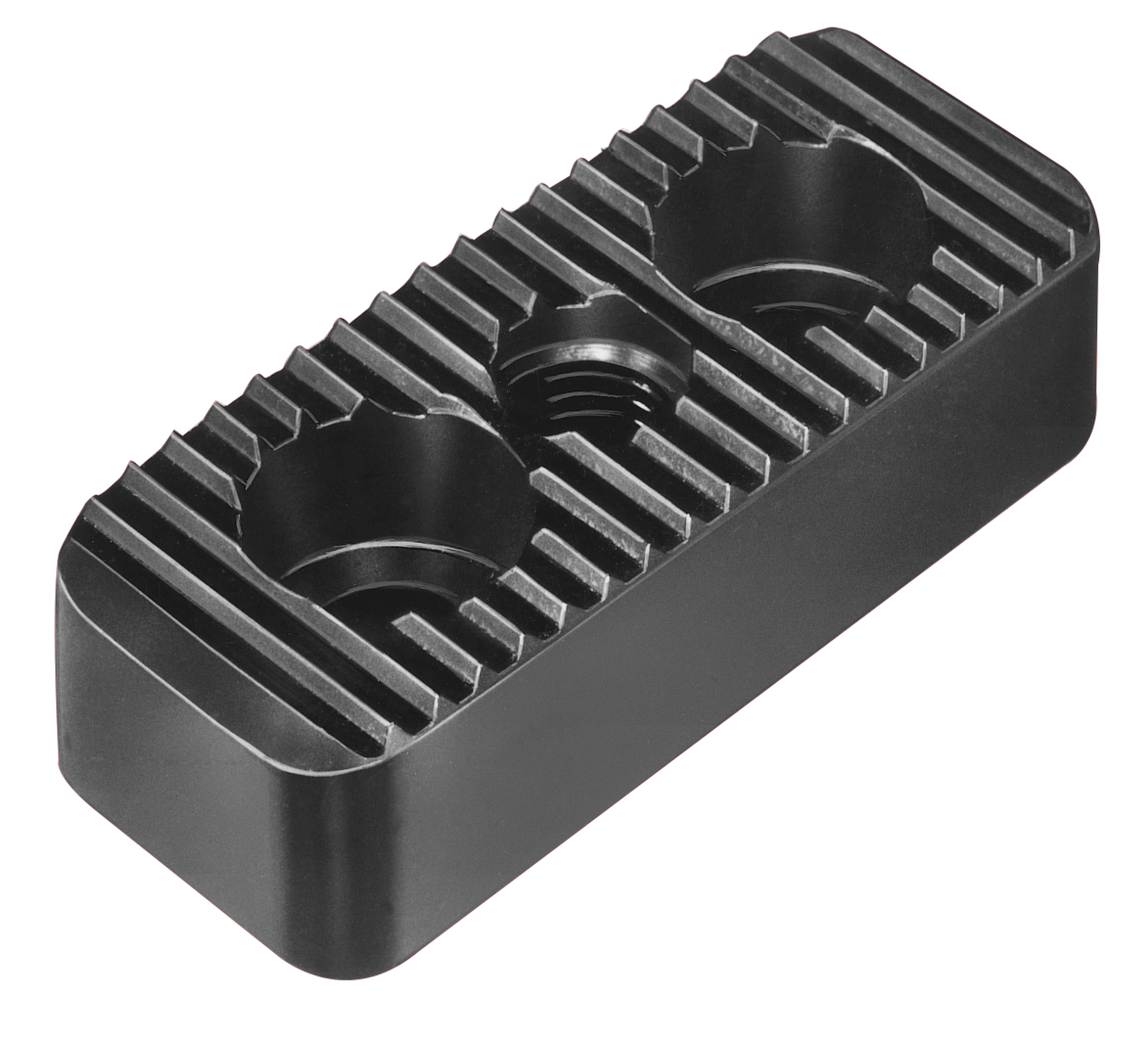

Rack plates are used to position stepped and standard toe clamps.

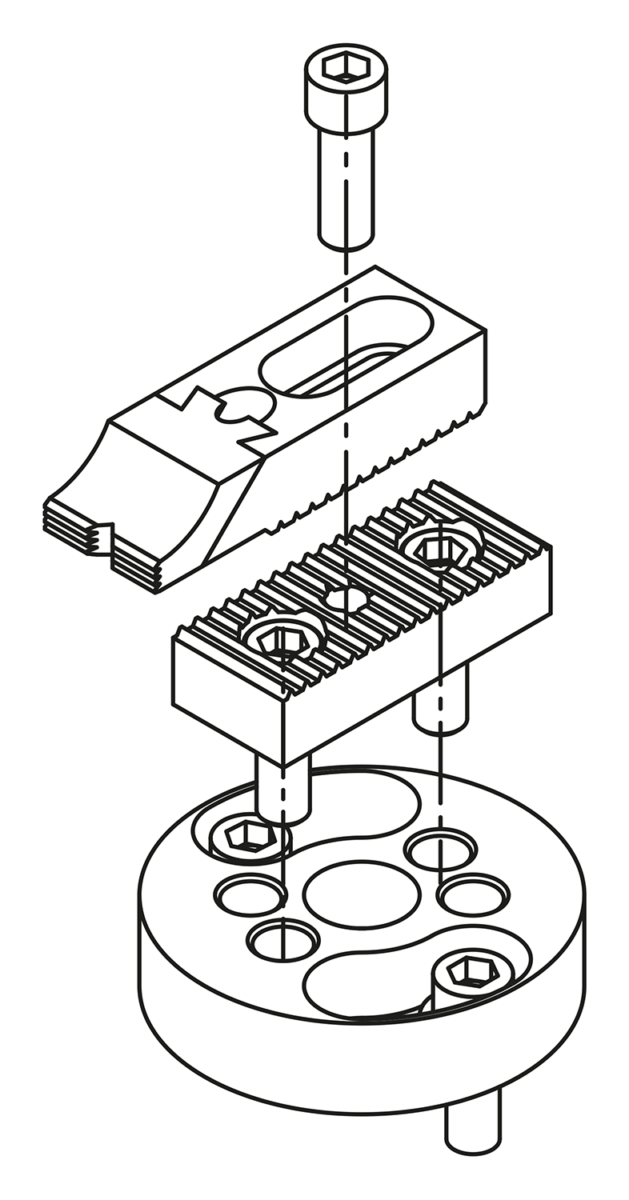

The holes (G) for DIN 912 socket head screws is used to fasten the rack plate to suitable base elements. The tapped hole (F) is used to secure the toe clamps.
The holes (G) for DIN 912 socket head screws is used to fasten the rack plate to suitable base elements. The tapped hole (F) is used to secure the toe clamps.
