{"product":{"productId":"agid.11580","price":8.88,"name":"Knurled knobs style C, with standard scale"},"currency":"USD"}
- Can be used as a clamping, retaining and fastening element
- Application fields: machine, plant and fixture construction, toolmaking
- For manually adjusting assemblies, machines and aggregates
- The NOVO grip product range represents an attractive design and an easy-to-grip style

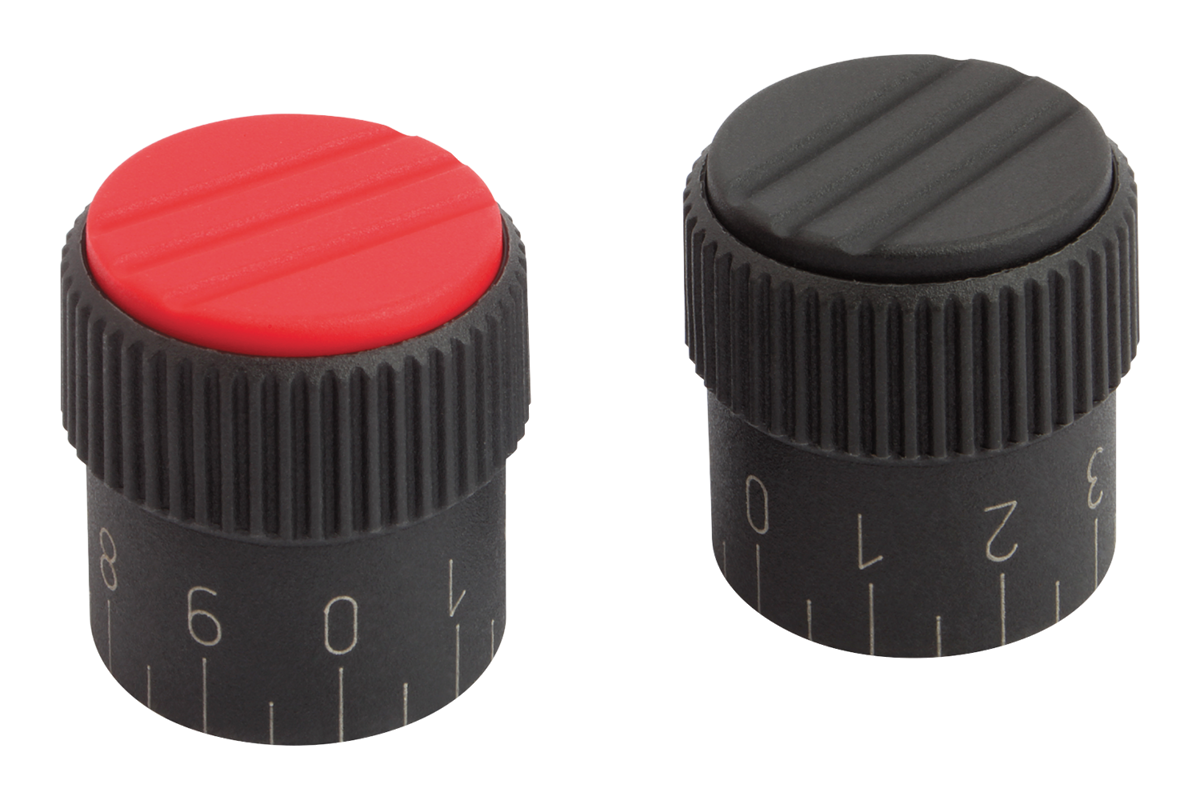

- style C: optimum readability due to incorporated scale marking
Description
Material
Thermoplastic, black gray.
bushing steel.
bushing steel.
Version
bushing blue passivated
Note
Available without graduations, with one scale line or with 20 graduations and 10 digits.
Δ Add the desired cap color here. No color code is required for black gray caps.
Δ Add the desired cap color here. No color code is required for black gray caps.
On request
Special graduations.
Drawing reference
Style A: without graduations
Style B: with one scale line
Style C: with standard graduations
1) Set screw for locking (by style C between numbers 5 and 6)
Style B: with one scale line
Style C: with standard graduations
1) Set screw for locking (by style C between numbers 5 and 6)
Important note on downloading CAD models
You must log in before you can download our CAD models. If you have not yet created an account, please register under "My account" (right-hand side of the screen) and follow the instructions.
