Material
Crank and grip thermoplastic.
Hub and grip axle steel, strength class 5.8, or stainless steel 1.4404.
Version
Thermoplastic black gray.
Steel parts black oxidized.
Stainless steel bright.
Steel parts black oxidized.
Stainless steel bright.
Show more
Show less

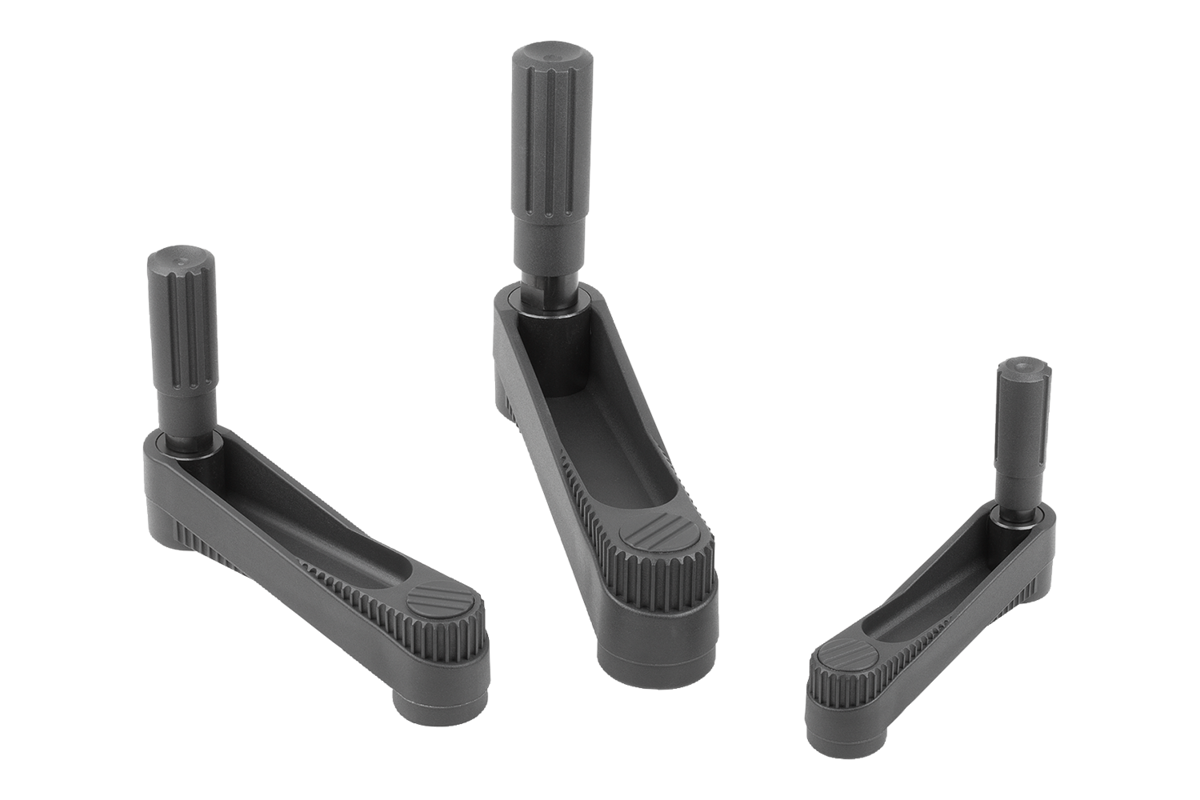

Crank handles with revolving cylinder grip, locating hole without slot
from
$22.08
as low as | plus sales tax
plus shipping and handling
Crank handles with revolving cylinder grip, locating hole with slot
from
$26.61
as low as | plus sales tax
plus shipping and handling
Crank handles with revolving cylinder grip, with square socket
from
$25.13
as low as | plus sales tax
plus shipping and handling
Description
Material
Crank and grip thermoplastic.
Hub and grip axle steel, strength class 5.8, or stainless steel 1.4404.
Version
Thermoplastic black gray.
Steel parts black oxidized.
Stainless steel bright.
Steel parts black oxidized.
Stainless steel bright.
Note
The hub cover and the revolving cylinder grip are supplied unassembled.
To assemble, screw the grip into the tapped hole provided.
The crank handles can be secured to the shaft by cross-pinning or by parallel key together with a DIN 6912 cap screw and DIN 7349 washer.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.
To assemble, screw the grip into the tapped hole provided.
The crank handles can be secured to the shaft by cross-pinning or by parallel key together with a DIN 6912 cap screw and DIN 7349 washer.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.
Drawing reference
1) Position of the transverse bore to the keyway is offset by 90°.
Accessory
K1160 Cap screws with low head DIN 6912
