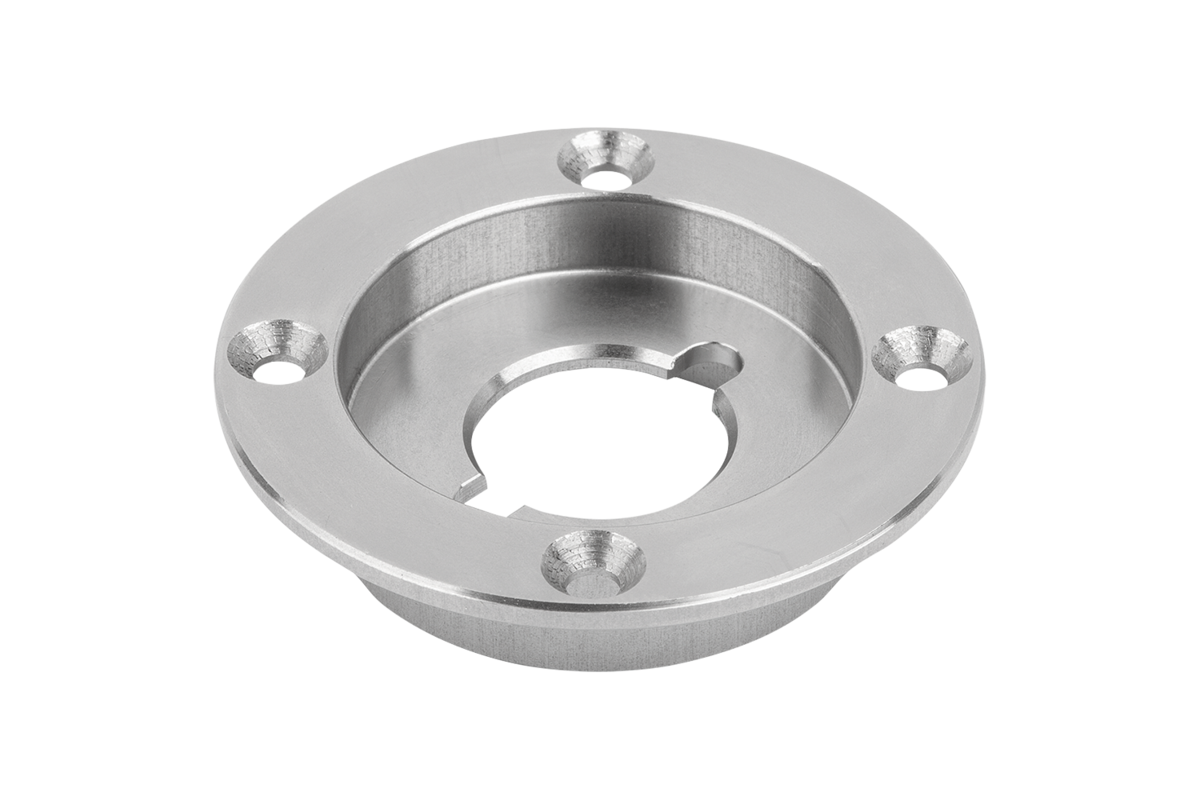

{"product":{"productId":"agid.34399","price":37.84,"name":"Clamping plate, stainless steel for quarter-turn clamp lock with recessed grip"},"currency":"USD"}
Material
Stainless steel 1.4310.
Version
Bright.
Show more
Show less
Description
Material
Stainless steel 1.4310.
Version
Bright.
Note
Stainless steel M2.5 fastening screws are supplied.
Mounting option 1 for plate thickness 6-12 mm.
Mounting option 2 for plate thickness > 12 mm.
With thin panels (less than 11 mm), the bottom of the clamping plate protrudes from the plate.
Mounting option 1 for plate thickness 6-12 mm.
Mounting option 2 for plate thickness > 12 mm.
With thin panels (less than 11 mm), the bottom of the clamping plate protrudes from the plate.
Assembly
When mounting, please note the alignment of the clamping plate to the quarter-turn clamp lock.
Drawing reference
1) Mounting option 1
2) Mounting option 2
3) Plate
4) Suitable for M 2.5 countersunk head fastening screws
2) Mounting option 2
3) Plate
4) Suitable for M 2.5 countersunk head fastening screws
Important note on downloading CAD models
You must log in before you can download our CAD models. If you have not yet created an account, please register under "My account" (right-hand side of the screen) and follow the instructions.
