Material

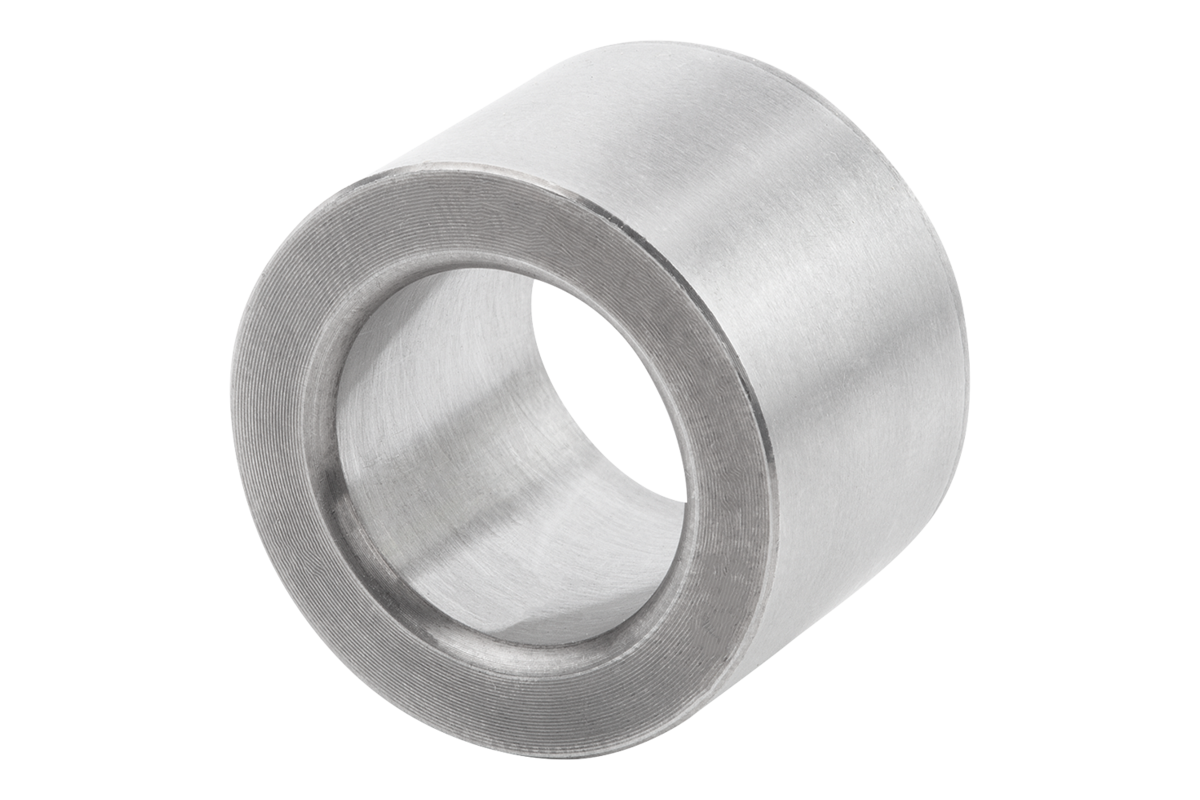

Stainless steel 1.4548.
Version
Hardened to min. 40 HRC, bright.
Show more
Show less
Description
Material
Stainless steel 1.4548.
Version
Hardened to min. 40 HRC, bright.
Note
By a center distance tolerance of ±0.005 mm and two grade I centering bushings a repeat accuracy of ±0.013 mm is possible.
By a center distance tolerance of ±0.03 mm and one grade I and one grade II centering bushing a repeat accuracy of 0.04 mm is possible.
The centering bushings are pressed into the receiver holes of the tooling plates using a light pressure.
For further details see “General information”.
By a center distance tolerance of ±0.03 mm and one grade I and one grade II centering bushing a repeat accuracy of 0.04 mm is possible.
The centering bushings are pressed into the receiver holes of the tooling plates using a light pressure.
For further details see “General information”.
